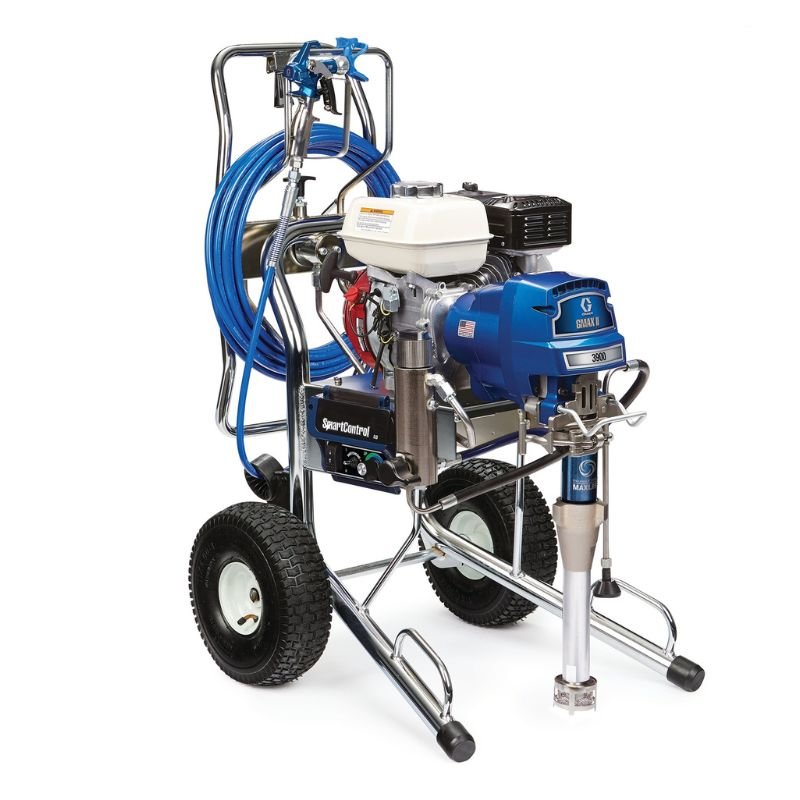

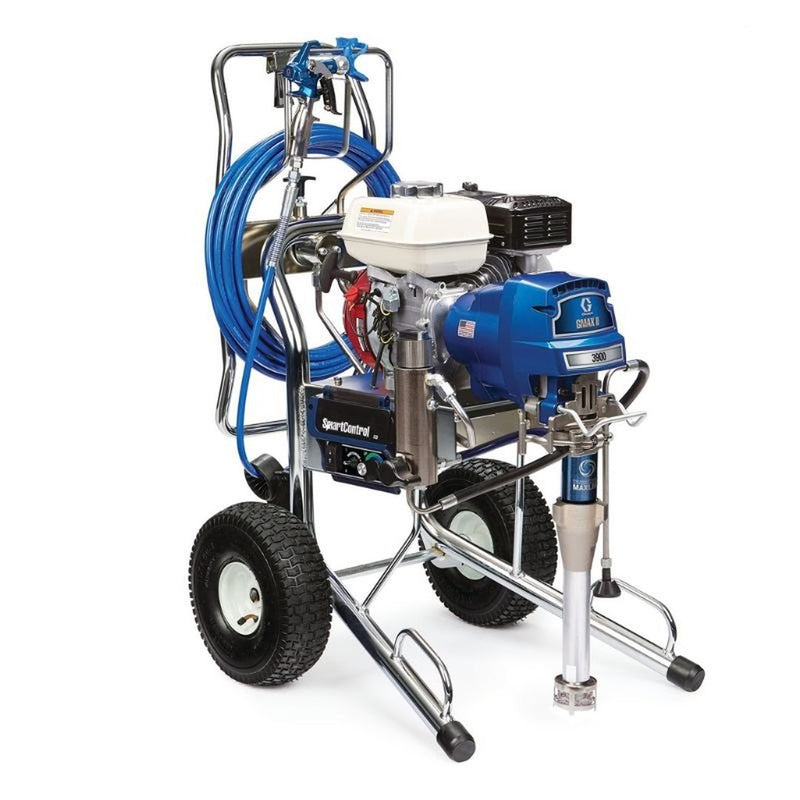

GRACO GMAX II 3900 ProContractor Series Gas Airless Sprayer

SKU: 17E828

GRACO GMAX II 3900 ProContractor Series Gas Airless Sprayer

$12,210.00 AUD
$12,210.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

Graco GMAX II 3900 ProContractor Series Gas Airless Sprayer

Overview

Producing 65% more performance than the GMAX 3400, the GMAX II 3900 has the power and flow to handle up to two guns and is ideal for the professional contractor who sprays a wide variety of coatings.

Work Smarter, Finish More Jobs. Graco GMAX ProContractor Series gas-powered airless paint sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits.

Details

Work Smarter, Finish More Jobs. Graco GMAX ProContractor Series gas-powered airless paint sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits.

  • GMAX 3400 GMAX II 3900 5900 7900 and TexSpray 5900HD 7900 HD Airless Sprayer Manuals 3A6418EN-A
  • Graco GMAX II 3900 Manual 3A6400EN-B
  • GMAX 3400 GMAX II 3900 5900 7900 and 5900 HD 7900 HD Airless Sprayers Manual 3A6417EN-H
  • GO Manual Graco Displacement Pump Manual 3A6583EN-A
  • GO Data Sheet Graco GMAX II 3900 ProContractor Series344383EN-I
  • GO Brochure Graco Gas Airless Sprayers 344383EN-I

Specifications

COMPATIBLE MATERIAL

Primers, Stains, Acrylics, Enamel, Latex, Interior Paint, Exterior Paint

COMPATIBLE REPLACEMENT PUMP

17H823

CONVERTIBLE

Non-Convertible

ENGINE BRAND

Honda

ENGINE SIZE (HP)

4

FEATURES

Endurance Vortex MaxLife Pump, SmartControl 3.0, QuikReel, Honda Engine, Advantage Drive, ProConnect 2, LED Display, Easy Out Filter, Crushproof Inlet Strainer, WatchDog, Contractor PC Gun

FLUID INLET SIZE (IN)

1-5/16

FLUID INLET SIZE (MM)

33.34

FLUID INLET THREAD TYPE

UN-2A

FLUID OUTLET SIZE (IN)

1/4

FLUID OUTLET SIZE (MM)

6.35

FLUID OUTLET THREAD TYPE

NPSM

FRAME CONFIGURATION

Hi-Boy

HOSE INLET DIAMETER (CM)

0.635

HOSE INLET DIAMETER (IN)

1/4

HOSE INLET DIAMETER (MM)

6.35

HOSE REEL TYPE

QuikReel

INCLUDES

Contractor PC 喷枪, Contractor PC ガン, Contractor PC Gun, Todos los equipos se envían completos y listos para pulverizar: con pistola 17Y043 Contractor PC™, boquilla PAA517, protección 246215 RAC X™, filtro 287032 Easy-Out™ (malla 60), manguera 240794 BlueMax™ II (1/4" x 15 m), 238049 TSL™ (118 ml)., Contractor PC 건, RAC X LTX 517 喷嘴, RAC X LTX 517 スプレーチップ, RAC X LP 517 Spray Tip, RAC X LTX 517 스프레이 팁, RAC X 喷嘴座, RAC X ガード, RAC X Guard, RAC X 가드, 1/4 英寸 x 50 英尺 BlueMax II 无气软管, 1/4 x 50 ft BlueMax II エアレスホース, 1/4 in x 50 ft BlueMax II Airless Hose, 1/4 in x 50 ft BlueMax II 에어리스 호스, 喉部密封液 4 盎司, TSL 4 オンス, TSL 4 oz, TSL 4 oz

INLET PAINT STRAINER

8 Mesh Stainless Steel Screen

MAXIMUM FLOW RATE (GPM)

1.25

MAXIMUM FLOW RATE (L/MIN)

4.73

MAXIMUM HOSE LENGTH (FT)

100

MAXIMUM HOSE LENGTH (M)

30

MAXIMUM SOUND PRESSURE LEVEL (DB(A))

96

MAXIMUM TIP SIZE (IN)

0.036

MAXIMUM TIP SIZE GUN 1 (IN)

0.036

MAXIMUM WORKING PRESSURE (PSI)

3300

MAXIMUM WORKING PRESSURE (KPA)

22700

POWER RATING (HP)

4

POWER SOURCE

Gas

POWER RATING (KW)

2.98

POWER RATING (W)

2983

MAXIMUM WORKING PRESSURE (MPA)

22.8

PRESSURE CONTROL TYPE

SmartControl 3.0

OVERALL WIDTH (MM)

619.7600

MODEL

GMAX II

MAXIMUM WORKING PRESSURE (BAR)

227

OVERALL HEIGHT (CM)

97.3

OVERALL HEIGHT (IN)

38.3

WEIGHT (KG)

61

WEIGHT (LB)

133

OVERALL HEIGHT (MM)

972.8200

OVERALL LENGTH (CM)

82

OVERALL WIDTH (IN)

24.4

OVERALL LENGTH (IN)

32.3

SERIES

3900

OVERALL LENGTH (MM)

820.42

OVERALL WIDTH (CM)

56.6

PUMP TYPE

Endurance Vortex

TYPE

Airless Sprayer

SPRAY GUN TYPE

Contractor PC Pro Gun

SPRAY TYPE

Airless

MAXIMUM WORKING PRESSURE (KG/CM²)

22.7

WETTED MATERIAL

Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

MAXIMUM FLUID WORKING PRESSURE (PSI)

3300

FLUID HOSE INSIDE DIAMETER (IN)

1/4

OUTLET PAINT FILTER

60 Mesh Stainless Steel Screen

PUMP SLEEVE MATERIAL

MaxLife

PUMP MOUNT TYPE

ProConnect 2

PUMP ROD TYPE

MaxLife

NUMBER OF GUNS

1

FILTER MESH SIZE

60

MAXIMUM TIP SIZE GUN 2 (IN)

0.023

RECOMMENDED ANNUAL USAGE

Up to 500 gallons per week

POWER RATING (CC)

120

PRODUCT SERIES

ProContractor

    Features

    • Endurance Vortex MaxLife Piston Pump
      • Superior pump life
      • Breakthrough vortex rotating rod technology
      • Repack the pump in minutes with the new QuikPak Cartridge System
      • Lasts 6X longer between repacks with innovative MaxLife technology
      • Oversized passages for high velocity flow to rotate piston for even wear
      • Repack pump in minutes with new QuikPak cartridge repair system
    • ProConnect 2 Pump Replacement System
      • Pump swaps in 1-minute or less – no tools, pins or parts to lose
      • Eliminate costly downtime
    • QuikReel Hose Management System
      • Easy hose management
      • Deploy and rewind up to 300 feet (90 meters) of hose in seconds
      • No twisting, kinking, and coiling
      • Use only the hose you need — the rest stays on the reel
    • Crushproof Inlet Strainer
      • Durable filtration
      • Stands up to harsh impacts to maintain even flow through filter
    • SmartControl 3.0
      • Consistent spray fan & pressure control
      • Handles the widest range of coatings with the most consistent fan pattern
      • Lowest dead band at any pressure
    • WatchDog Pump Protection System
      • Automatically prevents pump damage if material supply is too low
    • Precision Advantage Drive
      • The longest lasting drive
      • Improved jobsite conditions with extremely quiet operation
      • Lifetime Warranty
    • Honda® Engine
      • Reliable, powerful & easy-to-start
      • Oil Alert shuts down engine to prevent damage if oil level drops too low
      • Contractor Preferred
    • Contractor PC Spray Gun
      • All-day comfort & control
      • Lightest weight gun in its class
      • Up to 50% lighter trigger pull force
      • E-Z Fit adjustable trigger length
      • Complete gun rebuild in seconds with ProConnect cartridge
    • Additional Features:
      • Easy Out Pump Filter
      • Heavy-Duty Prime Valve
      • LED Display
      • Rugged, Durable Cart Design
