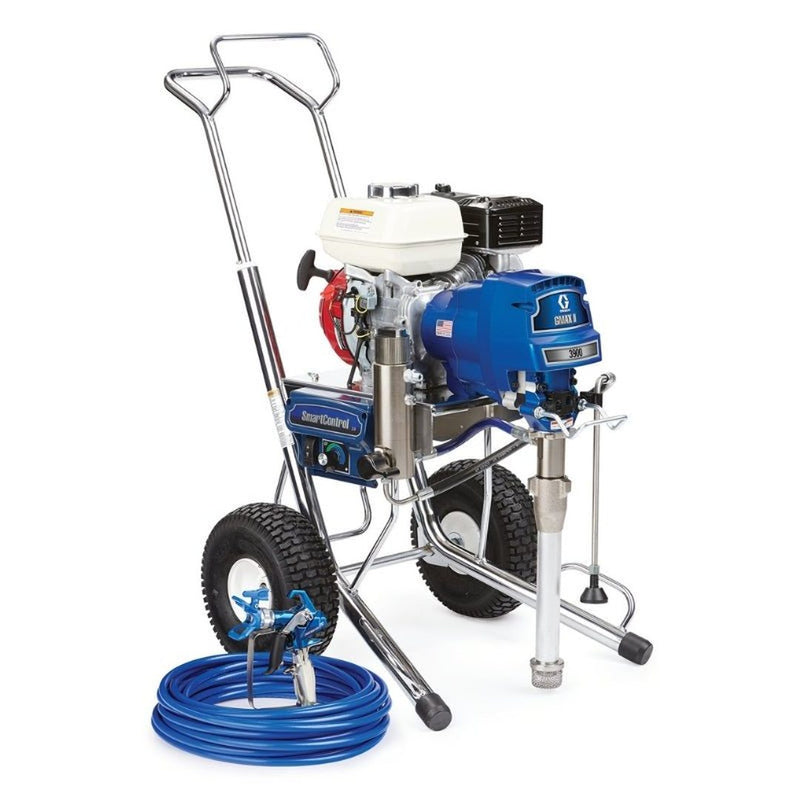

GRACO GMAX II 3900 Hi-Boy Standard Series Gas Airless Sprayer

SKU: 17E827

GRACO GMAX II 3900 Hi-Boy Standard Series Gas Airless Sprayer

$10,604.00 AUD
$10,604.00 AUD $0.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.

Other payment options

View full details
Graco GMAX II 3900 Standard Series Gas Airless Sprayer, Hi-Boy 17E827

GRACO GMAX II 3900 Hi-Boy Standard Series Gas Airless Sprayer

$10,604.00 AUD
$10,604.00 AUD $0.00 AUD
Save $0
Sold out

Details

Work Smarter, Finish More Jobs. Graco GMAX ProContractor Series gas-powered airless paint sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits.

Features

  • Endurance Chromex Piston Pump
    • The most reliable pump
    • Lasts 2X longer than the next leading brand
    • Repack the pump in minutes with the new QuikPak Cartridge System
    • QuikChange pump design allows you to swap the pump easily on the job
    • Faster cleaning with the QuikAccess intake foot valve
  • SmartControl 3.0
    • Consistent spray fan & pressure control
    • Handles the widest range of coatings with the most consistent fan pattern
    • Lowest dead band at any pressure
  • Precision Advantage Drive
    • The longest lasting drive
    • Hardened steel gears provide extremely quiet operation
    • Lifetime Warranty
  • Easy Out Pump Filter
    • Easy maintenance & less clogging
    • Exclusive inside-out filtering won't collapse to ensure a quality finish
    • Vertical design for less mess
  • Heavy-Duty Prime Valve
    • Maintenance-free design withstands high-pressure dumping
  • Durable Cart Design
    • Rugged and easy-to-maneuver
    • Thick chrome over steel and pneumatic wheels for tough jobsite conditions
    • Retractable handle doubles as coiled hose storage
  • Honda® Engine
    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
    • Contractor Preferred
  • Contractor PC Spray Gun
    • All-day comfort & control
    • Lightest weight gun in its class
    • Up to 50% lighter trigger pull force
    • E-Z Fit adjustable trigger length
    • Complete gun rebuild in seconds with ProConnect cartridge
    • More info:graco.com/ContractorPC
  • Jobsite Ready
    • Includes RAC X SwitchTip and 50 ft of BlueMax II hose

Graco GMAX II 3900 Standard Series Gas Airless Sprayer, Hi-Boy

Overview

Producing 65% more performance than the GMAX 3400, the GMAX II 3900 has the power and flow to handle up to two guns and is ideal for the professional contractor who sprays a wide variety of coatings.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • Graco GMAX II 3900 Manual 3A6400EN-B
  • GMAX 3400 GMAX II 3900 5900 7900 and TexSpray 5900HD 7900 HD Airless Sprayer Manuals 3A6418EN-A
  • GO Manual Graco Displacement Pump Repair 3A6584EN-A
  • GMAX 3400 GMAX II 3900 5900 7900 and 5900 HD 7900 HD Airless Sprayers Manual 3A6417EN-H
  • GO Data Sheet Graco GMAX II 3900 Standard 344383EN-I
  • Gas Airless Sprayers Brochure 344383EN-I

Specifications

CONVERTIBLE

Non-Convertible

ENGINE BRAND

Honda

ENGINE SIZE (HP)

4

FEATURES

Endurance Chromex Pump, SmartControl 3.0, Honda Engine, Advantage Drive, Easy Out Filter, Heavy-Duty Prime Valve, Contractor PC Gun

FLUID INLET SIZE (IN)

1-5/16

FLUID INLET SIZE (MM)

33.34

FLUID INLET THREAD TYPE

UN-2A

FLUID OUTLET SIZE (IN)

1/4

FLUID OUTLET SIZE (MM)

6.35

FLUID OUTLET THREAD TYPE

NPSM

FRAME CONFIGURATION

Hi-Boy

HOSE INLET DIAMETER (CM)

0.635

HOSE INLET DIAMETER (IN)

1/4

HOSE INLET DIAMETER (MM)

6.35

INCLUDES

Contractor PC 喷枪, Contractor PC ガン, Contractor PC Gun, Contractor PC 건, RAC X LTX 517 喷嘴, RAC X LTX 517 スプレーチップ, RAC X LP 517 Spray Tip, RAC X LTX 517 스프레이 팁, RAC X 喷嘴座, RAC X ガード, RAC X Guard, RAC X 가드, 1/4 英寸 x 50 英尺 BlueMax II 无气软管, 1/4 x 50 ft BlueMax II エアレスホース, 1/4 in x 50 ft BlueMax II Airless Hose, 1/4 in x 50 ft BlueMax II 에어리스 호스, 喉部密封液 4 盎司, TSL 4 オンス, TSL 4 oz, TSL 4 oz

INLET PAINT STRAINER

8 Mesh Stainless Steel Screen

MAXIMUM FLOW RATE (GPM)

1.25

MAXIMUM FLOW RATE (L/MIN)

4.73

MAXIMUM SOUND PRESSURE LEVEL (DB(A))

96

MAXIMUM TIP SIZE (IN)

0.036

MAXIMUM TIP SIZE GUN 1 (IN)

0.036

MAXIMUM WORKING PRESSURE (PSI)

3300

MAXIMUM WORKING PRESSURE (KPA)

22800

POWER RATING (HP)

4

POWER SOURCE

Gas

POWER RATING (KW)

2.98

POWER RATING (W)

2983

MAXIMUM WORKING PRESSURE (MPA)

22.8

PRESSURE CONTROL TYPE

SmartControl 3.0

OVERALL WIDTH (MM)

566

MODEL

GMAX II

MAXIMUM WORKING PRESSURE (BAR)

228

OVERALL HEIGHT (CM)

103.6

OVERALL HEIGHT (IN)

40.8

WEIGHT (KG)

48

WEIGHT (LB)

106

OVERALL HEIGHT (MM)

1036

OVERALL LENGTH (CM)

97.3

OVERALL WIDTH (IN)

22.3

OVERALL LENGTH (IN)

38.3

SERIES

3900

OVERALL LENGTH (MM)

973

OVERALL WIDTH (CM)

56.6

PUMP TYPE

Endurance

TYPE

Airless Sprayer

WETTED MATERIAL

Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

OUTLET PAINT FILTER

60 Mesh Stainless Steel Screen

PUMP SLEEVE MATERIAL

Stainless Steel

PUMP MOUNT TYPE

QuikChange

PUMP ROD TYPE

Chromex

NUMBER OF GUNS

2

MAXIMUM TIP SIZE GUN 2 (IN)

0.023

RECOMMENDED ANNUAL USAGE

Up to 500 gallons per week

POWER RATING (CC)

120

PRODUCT SERIES

Standard

    Features

    • Endurance Chromex Piston Pump
      • The most reliable pump
      • Lasts 2X longer than the next leading brand
      • Repack the pump in minutes with the new QuikPak Cartridge System
      • QuikChange pump design allows you to swap the pump easily on the job
      • Faster cleaning with the QuikAccess intake foot valve
    • SmartControl 3.0
      • Consistent spray fan & pressure control
      • Handles the widest range of coatings with the most consistent fan pattern
      • Lowest dead band at any pressure
    • Precision Advantage Drive
      • The longest lasting drive
      • Hardened steel gears provide extremely quiet operation
      • Lifetime Warranty
    • Easy Out Pump Filter
      • Easy maintenance & less clogging
      • Exclusive inside-out filtering won't collapse to ensure a quality finish
      • Vertical design for less mess
    • Heavy-Duty Prime Valve
      • Maintenance-free design withstands high-pressure dumping
    • Durable Cart Design
      • Rugged and easy-to-maneuver
      • Thick chrome over steel and pneumatic wheels for tough jobsite conditions
      • Retractable handle doubles as coiled hose storage
    • Honda® Engine
      • Reliable, powerful & easy-to-start
      • Oil Alert shuts down engine to prevent damage if oil level drops too low
      • Contractor Preferred
    • Contractor PC Spray Gun
      • All-day comfort & control
      • Lightest weight gun in its class
      • Up to 50% lighter trigger pull force
      • E-Z Fit adjustable trigger length
      • Complete gun rebuild in seconds with ProConnect cartridge
      • More info:graco.com/ContractorPC
    • Jobsite Ready
      • Includes RAC X SwitchTip and 50 ft of BlueMax II hose
