GRACO GMAX II 7900 Hi-Boy Standard Series Gas Airless Sprayer
SKU: 17E836GRACO GMAX II 7900 Hi-Boy Standard Series Gas Airless Sprayer
Regular price
$13,860.00 AUD
Sale price
$13,860.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
In Warehouse. Ready to ship or collect in 3 to 7 days.
Delivery times vary as per courier.
Other payment options
GRACO GMAX II 7900 Hi-Boy Standard Series Gas Airless Sprayer
Regular price
$13,860.00 AUD
Sale price
$13,860.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Features
Endurance MaxLife Piston Pump
- Superior pump life
- Repack the pump in minutes with the new QuikPak Cartridge System
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow
- Repack pump in minutes with new QuikPak cartridge repair system
SmartControl 3.0
- Consistent spray fan & pressure control
- Handles the widest range of coatings with the most consistent fan pattern
- Lowest dead band at any pressure
Precision Advantage Drive
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Warranty
Easy Out Pump Filter
- Easy maintenance & less clogging
- Exclusive inside-out filtering won't collapse to ensure a quality finish
- Vertical design for less mess
Heavy-Duty Prime Valve
- Maintenance-free design withstands high-pressure dumping
Durable Cart Design
- Rugged and easy-to-maneuver
- Thick chrome over steel and pneumatic wheels for tough jobsite conditions
- Retractable handle doubles as coiled hose storage
Honda® Engine
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor preferred
Contractor PC Spray Gun
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
Jobsite Ready
- Includes RAC X SwitchTip and 50 ft of BlueMax II hose

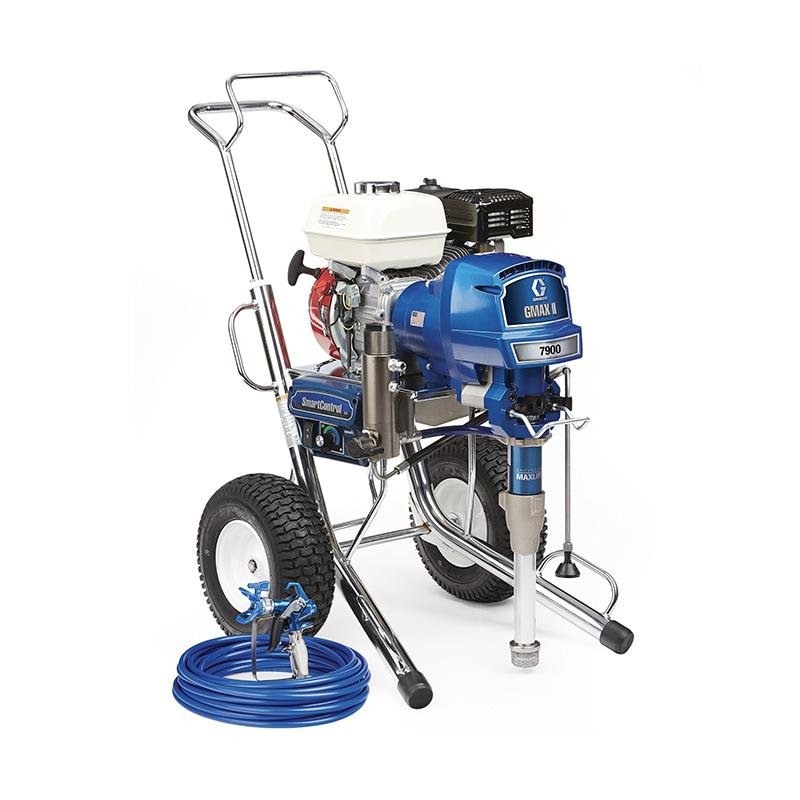

GMAX II 7900 Standard Series Gas Airless Sprayer, Hi-Boy
Overview
Offering 35% more performance than the GMAX II 5900, the GMAX II 7900 is Graco's largest gas mechanical sprayer. These units can handle the widest range of tip sizes, multiple guns, longer hose lengths and heavier coatings with ease.
Specifications
| CONVERTIBLE | Non-Convertible |
|---|---|
| ENGINE BRAND | Honda |
| ENGINE SIZE (HP) | 6.5 |
| FEATURES | Endurance MaxLife Pump, SmartControl 3.0, Honda Engine, Advantage Drive, Easy Out Filter, Heavy-Duty Prime Valve, Contractor PC Gun |
| FLUID INLET SIZE (IN) | 1-5/16 |
| FLUID INLET SIZE (MM) | 33.34 |
| FLUID INLET THREAD TYPE | UN-2A |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPSM |
| FRAME CONFIGURATION | Hi-Boy |
| HOSE INLET DIAMETER (CM) | 0.635 |
| HOSE INLET DIAMETER (IN) | 1/4 |
| HOSE INLET DIAMETER (MM) | 6.35 |
| INCLUDES | Contractor PC Gun, RAC X LP 517 Spray Tip, RAC X LTX 517, RAC X Guard, 3/8 in x 50 ft (15 m) BlueMax II Airless Hose, 1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz(118 ml) |
| INLET PAINT STRAINER | 8 Mesh Stainless Steel Screen |
| MAXIMUM FLOW RATE (GPM) | 2.2 |
| MAXIMUM FLOW RATE (L/MIN) | 8.33 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 96 |
| MAXIMUM TIP SIZE (IN) | 0.048 |
| MAXIMUM TIP SIZE GUN 1 (IN) | 0.048 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MAXIMUM WORKING PRESSURE (KPA) | 22800 |
| POWER RATING (HP) | 6.5 |
| POWER SOURCE | Gas |
| POWER RATING (KW) | 4.85 |
| POWER RATING (W) | 4847 |
| MAXIMUM WORKING PRESSURE (MPA) | 22.8 |
| PRESSURE CONTROL TYPE | SmartControl 3.0 |
| OVERALL WIDTH (MM) | 620 |
| MODEL | GMAX II |
| MAXIMUM WORKING PRESSURE (BAR) | 228 |
| OVERALL HEIGHT (CM) | 102.9 |
| OVERALL HEIGHT (IN) | 40.5 |
| WEIGHT (KG) | 67 |
| WEIGHT (LB) | 148 |
| OVERALL HEIGHT (MM) | 1029 |
| OVERALL LENGTH (CM) | 96.8 |
| OVERALL WIDTH (MM) | 24 |
| OVERALL LENGTH (IN) | 38.1 |
| SERIES | 7900 |
| OVERALL LENGTH (MM) | 968 |
| OVERALL WIDTH (CM) | 62 |
| PUMP TYPE | Endurance |
| TYPE | Airless Sprayer |
| WETTED MATERIAL | Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| OUTLET PAINT FILTER | 60 Mesh Stainless Steel Screen |
| PUMP SLEEVE MATERIAL | MaxLife |
| PUMP MOUNT TYPE | QuikChange |
| PUMP ROD TYPE | MaxLife |
| NUMBER OF GUNS | 4 |
| MAXIMUM TIP SIZE GUN 2 (IN) | 0.035 |
| RECOMMENDED ANNUAL USAGE | Up to 1,000 gallons per week |
| MAXIMUM TIP SIZE GUN 3 (IN) | 0.027 |
| MAXIMUM TIP SIZE GUN 4 (IN) | 0.023 |
| POWER RATING (CC) | 200 |
| PRODUCT SERIES | Standard |
- Superior pump life
- Repack the pump in minutes with the new QuikPak Cartridge System
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow
- Repack pump in minutes with new QuikPak cartridge repair system
- Consistent spray fan & pressure control
- Handles the widest range of coatings with the most consistent fan pattern
- Lowest dead band at any pressure
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Warranty
- Easy maintenance & less clogging
- Exclusive inside-out filtering won't collapse to ensure a quality finish
- Vertical design for less mess
- Maintenance-free design withstands high-pressure dumping
- Rugged and easy-to-maneuver
- Thick chrome over steel and pneumatic wheels for tough jobsite conditions
- Retractable handle doubles as coiled hose storage
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor preferred
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
- Includes RAC X SwitchTip and 50 ft of BlueMax II hose
Features
Endurance MaxLife Piston Pump
SmartControl 3.0
Precision Advantage Drive
Easy Out Pump Filter
Heavy-Duty Prime Valve
Durable Cart Design
Honda® Engine
Contractor PC Spray Gun
Jobsite Ready
