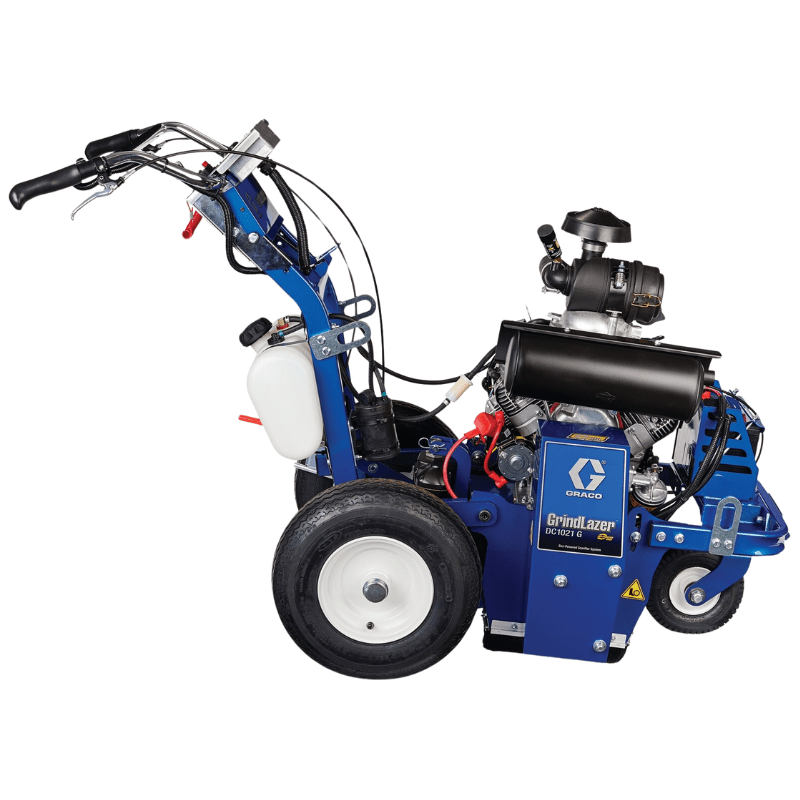

GRACO GrindLazer HP DC1021 DCS Bare Petrol-Powered Scarifier
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The GrindLazer HP DC1021 G DCS is the high production choice when it comes to the most demanding scarifier jobs. Its “Up-Cut” cutting direction allows you to remove all types of lines found on parking lots or roadways while having the power for inlay/grooving jobs. LineDriver is required.
Applications: Traffic Paint Removal, Thermoplastic Removal, Smoothing Uneven Surfaces, Epoxy Removal, Inlay Grooving
See Parts & Accessories tab for the complete list of compatible drum cutters.
Features
Features
DCS Controller
- Ultimate Control & Application Flexibility
- User settable “zero point” to match cutter assembly
- Displays “active depth”
- English and metric units
- Robust design stands up the harsh abuse
- Fully-encapsulated electronic components
- Ultimate protection from vibration, jobsite and weather conditions
Depth Control System
- Eliminate Measuring & Guesswork
- Quickly & easily adjust the cutter depth to align with ever-changing terrain
- Accurate cut depth for tape or thermoplastic inlays
- Eliminates damage due to “dropped drums”
Remote Momentary Switch
- Total Operator Control
- Control cut depth while keeping both hands on the GrindLazer
Insta Cut Technology
- Ultimate Removal or Inlay Flexibility
- Only unit to offer “hands-on” engagement of the cutting deck system for up or down position
- Allows deck to “float” when on uneven surfaces
- No-tool system
Vibration Reduction Technology
- All-Day Comfort
- Up to 4x less vibration than the competition Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue
- Comfort-grip handlebars for precise steering
Vanguard 21 HP Engine with Donaldson Heavy-Duty Filtration
- Improved filtration to work longer and improve engine life
- Electric start system allows for easy starting with the turn of a key – even in cold weather
Extreme-Duty ProStart System
- Safer Operation
- Easy cutter start/stop with centrifugal clutch - one of the safest units on the market today Easy cold weather starting
- Provides longer belt life and eliminates broken recoils
Tri Belt Drive System
- Maximum Road Handling
- 3-cog belt design optimizes power transfer and eliminates costly downtime
Fat Track Front Swivel Wheel
- Fast, Easy Turning
- Proven front caster wheel system makes turning fast and easy
- Maneuver curves better
- No need to “muscle it” while movin
Additonal Features
- EasyGlide Wheel Mount System
- Dustr-Free Vacuum Port
- LineDriver Required
Specifications
| CUT DIRECTION | Reverse |
|---|---|
| ENGINE BRAND | Vanguard |
| LINEDRIVER REQUIRED | Required |
| MAXIMUM CUT WIDTH (CM) | 25 |
| MAXIMUM CUT WIDTH (IN) | 10 |
| MAXIMUM CUT WIDTH (MM) | 254 |
| TYPE | Concrete Scarifier |
| ENGINE SIZE (HP) | 21 |
| PRODUCT SERIES | High Production |
| CUTTER TYPE | Drum |
| CUTTER DRUM DIAMETER (IN) | 7 |
| MAXIMUM CUT RATE W/ LINEDRIVER (FT2/HR) | 2100 |
| VACUUM PORT | Yes |
| WATER CONNECTION | Optional |
| ENGINE START TYPE | Electric Start |
| AIR FILTER TYPE | Donaldson Heavy-Duty |
| DEPTH_ADJUSTMENT | Depth Control System (DCS) |
| MODEL | GrindLazer |
| SERIES | High Production Series |
