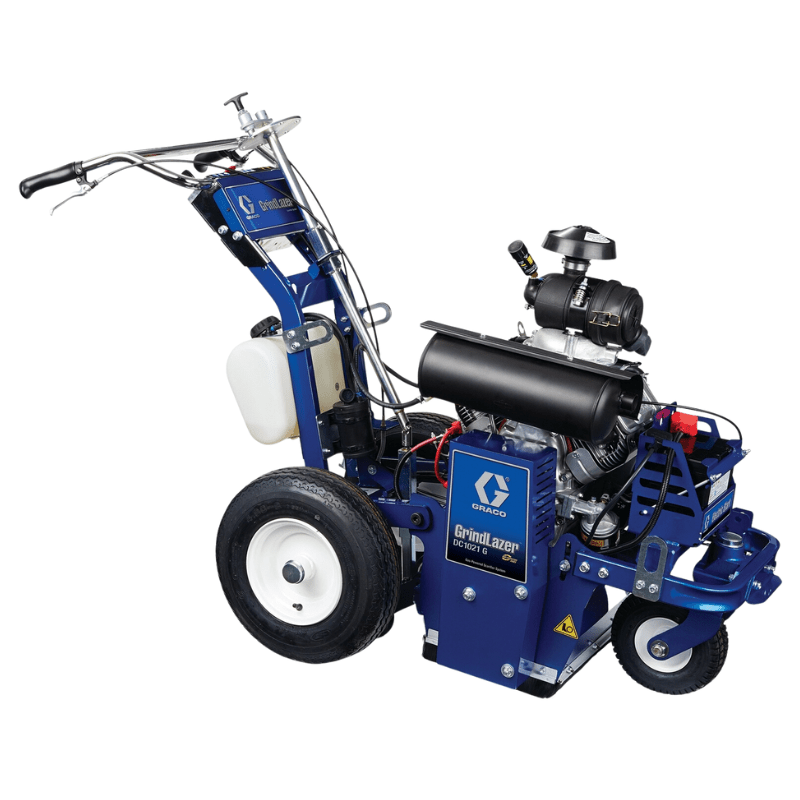

GRACO GrindLazer HP DC1021 Petrol-Powered Scarifier
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The GrindLazer HP DC1021 G is the high production choice for demanding scarifier jobs. Its “Up-Cut” cutting direction removes all types of lines on parking lots or roadways while providing the power for inlay/grooving jobs. The LineDriver will help you finish jobs faster and more accurately.
Applications: Traffic Paint Removal, Thermoplastic Removal, Smoothing Uneven Surfaces, Epoxy Removal, Inlay Grooving
Bundled Drum Cutter Options
Wire Brush
Ideal for removing curing compounds and cleaning surfaces without damaging the substrate.
Steel Star
Provide deeper penetration of substrate.
Steel Beam
Ideal for gentle removal.
Carbide Flail
Ideal for removing paint and epoxy markings, surface leveling, and removing trip hazards.
Carbide Flat
These versatile cutters use a flat carbide pin to strip, mill, and clean concrete and asphalt surfaces.
Carbide-Tipped Miller
Millers scrape the surface to remove markings, making them a suitable choice for removing paint, epoxy, tape, and thermoplastic.
Full Carbide Miller
Similar to carbide-tipped millers, but cast entirely from carbide for a longer service life.
Carbide Pick
Ideal for applications requiring aggressive removal of thick coatings or material.
Diamond Blade
Great for shaving, grooving, and performing inlay for traffic tape and thermoplastic
See Parts & Accessories tab for the complete list of compatible drum cutters.
Features
Features
Dial Down Depth Control System
- Easy Cutter Depth Control
- Easy to “dial down” for precise cutting depth control with multiple positions
Insta Cut Technology
- Only unit to offer “hands-on” engagement of the cutting deck system for up or down position
- Provides ultimate flexibility for removal and inlay
- No-tool system
- Allows deck to “float” when on uneven surfaces
Vibration Reduction Technology
- All-Day Comfort
- Up to 4x less vibration than the competition
- Pneumatic air-filled tires, comfort grips and cart design combine to eliminate vibration, reducing user fatigue
- Comfort-grip handlebars for precise steering
Vanguard 21 HP Engine with Donaldson Heavy-Duty Filtration
- Improved filtration to work longer and improve engine life
- Electric start system allows for easy starting with the turn of a key – even in cold weather
Extreme-Duty ProStart System
- Safer Operation
- Easy cutter start/stop with centrifugal clutch - one of the safest units on the market today
- Easy cold weather starting Provides longer belt life and eliminates broken recoils
Tri Belt Drive System
- Maximum Road Handling
- 3-cog belt design optimizes power transfer and eliminates costly downtime
Fat Track Front Swivel Wheel
- Fast, Easy Turning
- Proven front caster wheel system makes turning fast and easy
- Maneuver curves better
- No need to “muscle it” while moving
Easy Glide Wheel Mount System
- Safer, Easier To Maneuver
- Front-mounted caster along with dual rear pneumatic air-filled tires
- Pneumatic air-filled tires helps eliminate vibration
Dust Removal
- Vacuum port for optional LazerVac vacuum system
Line Driver Compatible
Specifications
| CUT DIRECTION | Reverse |
|---|---|
| ENGINE BRAND | Vanguard |
| LINEDRIVER REQUIRED | Required |
| MAXIMUM CUT WIDTH (CM) | 25 |
| MAXIMUM CUT WIDTH (IN) | 10 |
| MAXIMUM CUT WIDTH (MM) | 254 |
| TYPE | Concrete Scarifier |
| ENGINE SIZE (HP) | 21 |
| PRODUCT SERIES | High Production |
| CUTTER TYPE | Drum |
| CUTTER DRUM DIAMETER (IN) | 5 |
| MAXIMUM CUT RATE W/ LINEDRIVER (FT2/HR) | 2100 |
| VACUUM PORT | Yes |
| WATER CONNECTION | Optional |
| ENGINE START TYPE | Electric Start |
| AIR FILTER TYPE | Donaldson Heavy-Duty |
| DEPTH_ADJUSTMENT | Manual |
| MODEL | GrindLazer |
| SERIES | High Production Series |
