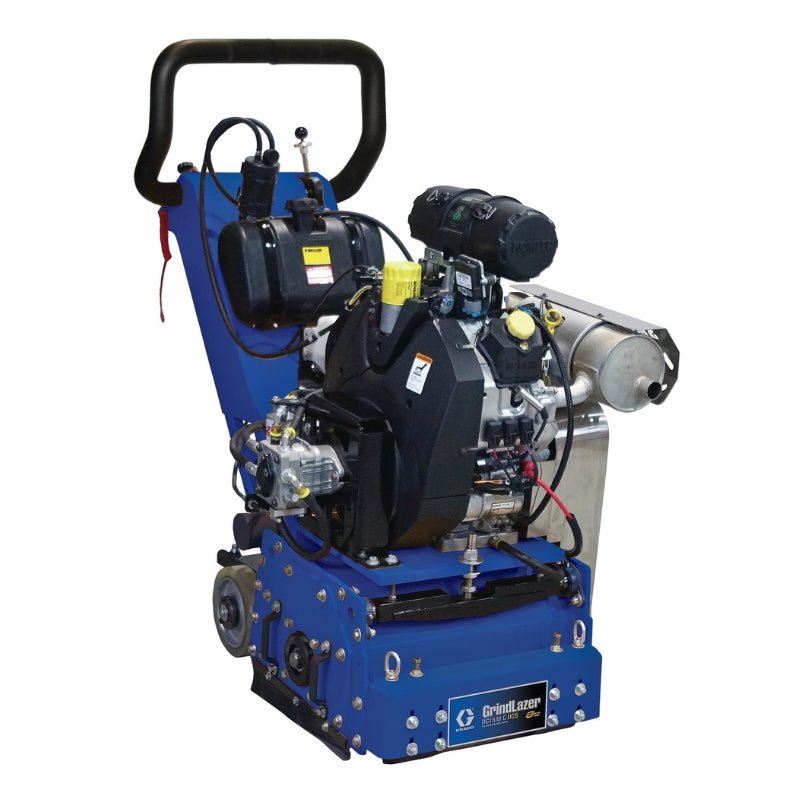

Graco GrindLazer HP DC1538 DCS Self-Propelled Petrol-Powered Scarifier Bare
SKU: 25P474Graco GrindLazer HP DC1538 DCS Self-Propelled Petrol-Powered Scarifier Bare
Other payment options
Graco GrindLazer HP DC1538 DCS Self-Propelled Petrol-Powered Scarifier Bare
Features
Do-It-All Solution
- Adaptable for leveling, grooving, scarifying, and stripping coatings
- Up to 16 inch removal path
- Wide variety of cutters available
- High-speed pulley kit for diamond and PCD cutters
- Quick-change side plate for easier drum removal
Depth Control System
- Eliminate Measuring & Guesswork
- Quickly and precisely adjust the cutter depth with the push of a button
- Achieve accurate cut depth for leveling, grooving, and inlay
- Eliminate damage due to “dropped drums”
DCS Controller
- Total Operator Control
- Easy adjustment via control panel buttons
- Set “zero point” where the cutter meets the surface
- Adjust cut depth in 0.01 inch increments
- Displays “active depth” from zero point
- English and metric units
- Robust design stands up to harsh job site environments
- Electronic components are protected against dust, debris, water, and vibration
Self-Propelled
- Variable-speed hydrostatic drive allows user to dial in the speed for each application
Designed for the Toughest Jobs
- All-steel chassis
- Low-vibration design
- Long-life bearings
Powered by a 38 HP Kohler® EFI Gasoline Engine
Dust Removal
- Dust port for connecting to LazerVac vacuum systems
Graco GrindLazer HP DC1538 DCS Self-Propelled Petrol-Powered Scarifier Bare
Overview
The DC1538 G DCS heavy-duty, self-propelled drum scarifier is designed to tackle the most demanding removal and surface preparation jobs. It's capable of removing a path up to 16 inches wide and features Graco's electronic DCS Depth Control System to quickly adjust cut depth without stopping.
All GrindLazer DC15 DCS models come with either a low or high-speed pulley kit installed. Choose a model with the high-speed pulley kit if operating with diamond or PCD cutters. Choose a model with the low-speed pulley kit if using with carbide cutters.
Applications: Leveling Uneven Surfaces, Inlay and Grooving, Epoxy Removal, Removing Traffic Markings
Drum Cutter Options
Sold Separately
PCD Cutters
By using self-sharpening polycrystalline diamond technology, these cutters last up to 30x longer than traditional carbide flails and cut up to 4x faster than diamond blades.
Diamond Blades
Graco diamond drums are great for shaving, grooving, and performing inlay for traffic tape and thermoplastic. Available with blades for asphalt or concrete applications, and can be setup to provide a wide variety of different groove patterns.
Carbide Flail Cutters
Graco’s carbide flail drums use high-quality tungsten carbide to ensure a long service life. They are great for removing paint and epoxy coatings, surface leveling, and removing trip hazards.
See Parts & Accessories tab for the complete list of compatible drum cutters.
Specifications
- Adaptable for leveling, grooving, scarifying, and stripping coatings
- Up to 16 inch removal path
- Wide variety of cutters available
- High-speed pulley kit for diamond and PCD cutters
- Quick-change side plate for easier drum removal
- Eliminate Measuring & Guesswork
- Quickly and precisely adjust the cutter depth with the push of a button
- Achieve accurate cut depth for leveling, grooving, and inlay
- Eliminate damage due to “dropped drums”
- Total Operator Control
- Easy adjustment via control panel buttons
- Set “zero point” where the cutter meets the surface
- Adjust cut depth in 0.01 inch increments
- Displays “active depth” from zero point
- English and metric units
- Robust design stands up to harsh job site environments
- Electronic components are protected against dust, debris, water, and vibration
- Variable-speed hydrostatic drive allows user to dial in the speed for each application
- All-steel chassis
- Low-vibration design
- Long-life bearings
- Dust port for connecting to LazerVac vacuum systems
Features
Do-It-All Solution
Depth Control System
DCS Controller
Self-Propelled
Designed for the Toughest Jobs
Powered by a 38 HP Kohler® EFI Gasoline Engine
Dust Removal
