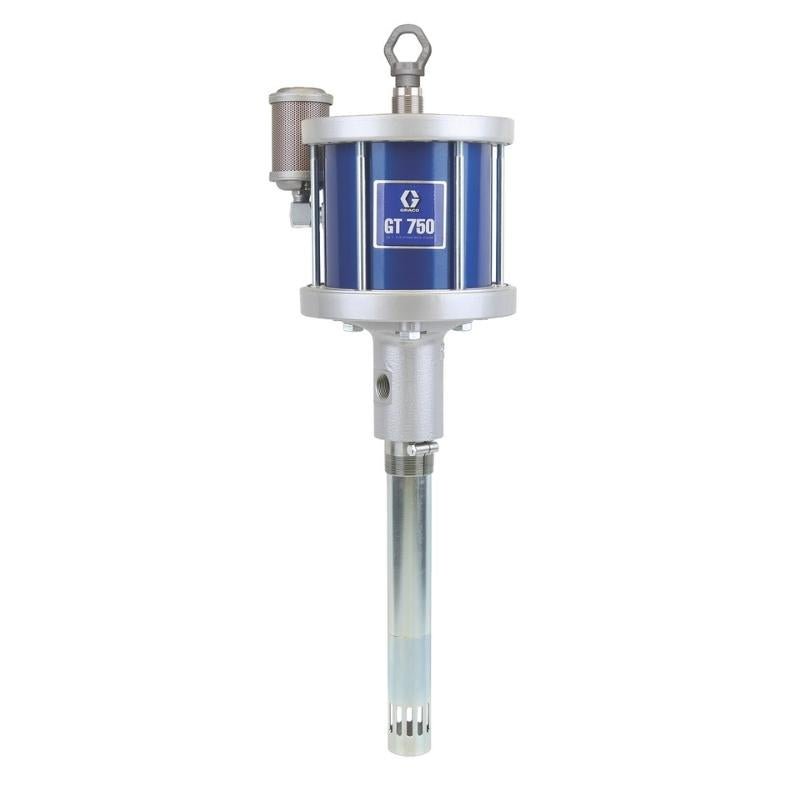

GRACO GT 750 36:1 Grease Transfer Pumps

SKU: 24W498

GRACO GT 750 36:1 Grease Transfer Pumps

$6,853.00 AUD
$6,853.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Product

Other payment options

View full details
GRACO GT 750 36:1 Grease Transfer Pumps

GRACO GT 750 36:1 Grease Transfer Pumps

From $6,853.00 AUD
From $6,853.00 AUD
Save $0
Sold out

Details

The GT 750 pump was engineered to perform in challenging applications and changing environments. The large 7.5-inch (190 mm) air motor and pump lower combination allows the GT 750 pump to move the same amount of grease with up to four times fewer pump strokes.

Features

  • Efficient Air Motor: Use less air to move more grease.
  • High Flow Rates: Up to 32 lb/min (13.6 kg/min) of grease.
  • High Volume Per Stroke: Pump more grease without having to drive pump too quickly to damage seals.
  • Proven Pump Technology: Based on Graco NXT™ pump technology.
  • Multiple Tank Options: Available in 35, 120 and 400 lb (16, 54 and 181 kg) down tube lengths.

    • Graco GT 750 36:1 Grease Transfer Pumps

    Overview

    As the mainstay pump in the industry for decades, the reputation of Graco, from GO Industrial, is unrivalled. Built to withstand the test of time with fewer moving parts, these flagship pumps are built to extend uptime so customers can be more productive. The durable pumps are renowned for their durability, with pumps built decades ago still operating efficiently.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • Graco GT 750 Grease Pumps Manual - GO Industrial
    • Graco Data Sheet Graco GT 750 Grease Pumps

    Specifications

    • Air Pressure Operating Range - 40-100 psi (3-7 bar)
    • Maximum Working Pressure - 3,600 psi (248 bar)
    • Maximum Recommended Continuous Pump Speed - 60 cycles per minute
    • Air Inlet - 1/2" NPT
    • Fluid Outlet - 1" NPT
    • Maximum Delivery - 32 lb/min (13.6 kg/min)
    TYPE Pneumatic Piston Pump
    AIR INLET SIZE (CM) 1.27
    AIR INLET SIZE (IN) 0.5
    AIR INLET SIZE (MM) 12.7
    AIR INLET THREAD GENDER Female
    AIR INLET THREAD TYPE NPT
    AIR MOTOR EFFECTIVE DIAMETER (IN) 7.5
    APPLICATION Grease
    COMPATIBLE MATERIAL Grease
    FLUID INLET THREAD TYPE NPT
    FLUID INLET TYPE NPT, NPT, NPT, NPT, NPT
    FLUID OUTLET SIZE (CM) 2.54
    FLUID OUTLET SIZE (IN) 1
    FLUID OUTLET SIZE (MM) 25.4
    FLUID OUTLET THREAD GENDER Female
    FLUID OUTLET THREAD TYPE NPT
    FOR USE WITH NLGI 2, Grease up to NLGI 2
    INCLUDES 2 Inch Bung Adapter and Lift Ring, 400 lb (181 kg) Lower
    MAXIMUM AIR CONSUMPTION (SCFM) 130
    MAXIMUM AIR INLET PRESSURE (BAR) 6.9
    MAXIMUM AIR INLET PRESSURE (KPA) 690
    MAXIMUM AIR INLET PRESSURE (PSI) 100
    MAXIMUM CONTINUOUS CYCLE RATE (CPM) 60
    MAXIMUM WORKING PRESSURE (BAR) 248.2
    MAXIMUM WORKING PRESSURE (KPA) 24820
    MAXIMUM WORKING PRESSURE (PSI) 3600
    MODEL GT 750
    PUMP RATIO 36:1
    SOUND POWER LEVEL (DB(A)) 77.2
    SOUND PRESSURE LEVEL (DB(A)) 70.5
    WEIGHT (LB) 59
    WEIGHT (KG) 2.6786
    MAXIMUM WORKING PRESSURE (MPA) 24.8
    OUTPUT PER CYCLE (CM³) 180

      Features

    • Efficient Air Motor: Use less air to move more grease.
    • High Flow Rates: Up to 32 lb/min (13.6 kg/min) of grease.
    • High Volume Per Stroke: Pump more grease without having to drive pump too quickly to damage seals.
    • Proven Pump Technology: Based on Graco NXT™ pump technology.
    • Multiple Tank Options: Available in 35, 120 and 400 lb (16, 54 and 181 kg) down tube lengths.
