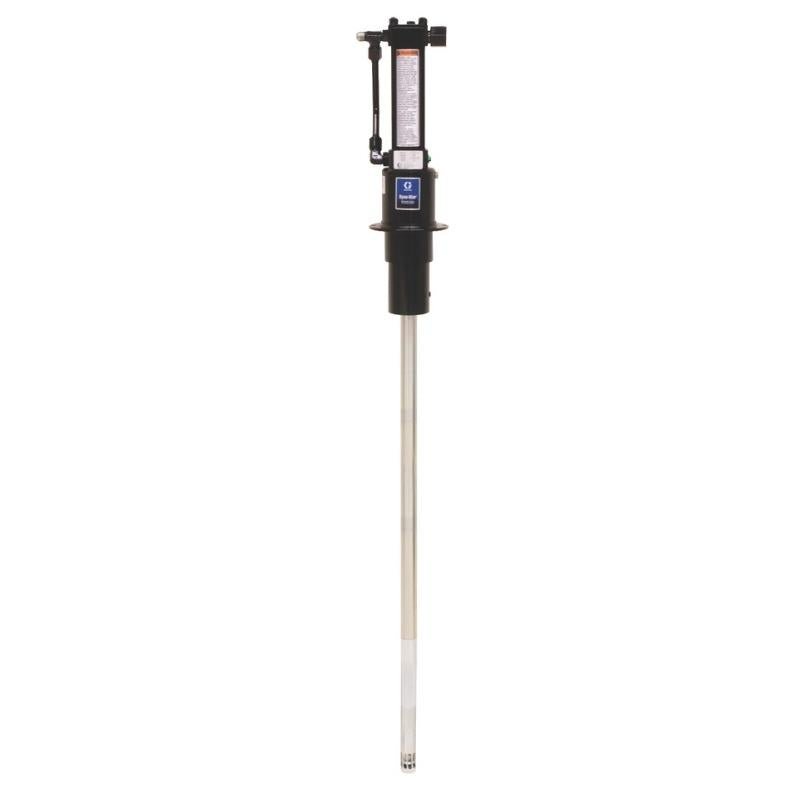

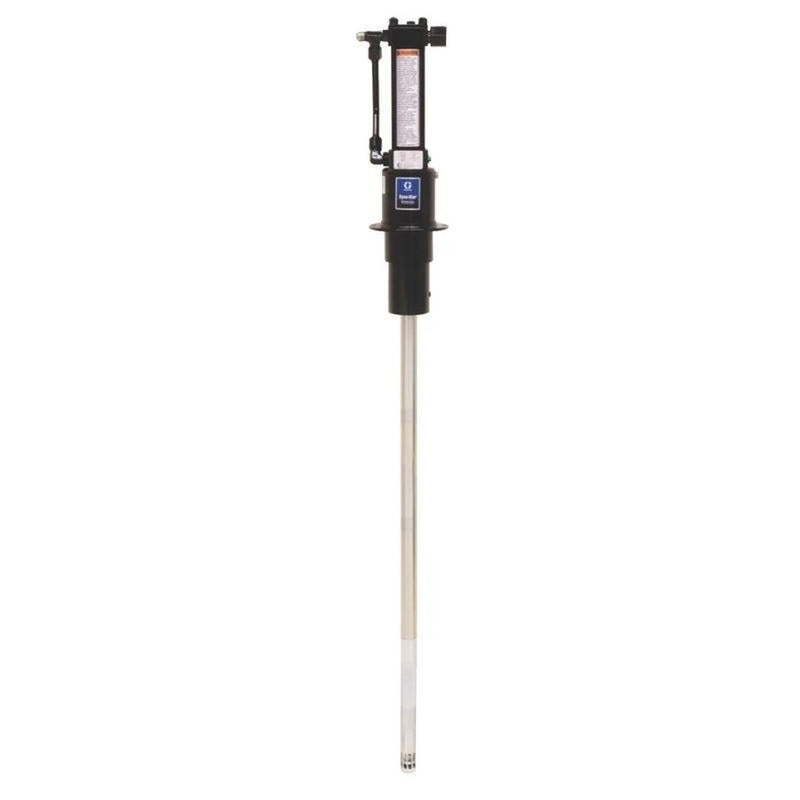

GRACO Hydraulic Dyna-Star 10:1 High Ratio Lubrication Pump 180 kg

SKU: 247450

GRACO Hydraulic Dyna-Star 10:1 High Ratio Lubrication Pump 180 kg

$7,546.00 AUD
$7,546.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
Graco Hydraulic Dyna-Star® 10:1 High Ratio Lubrication Pump - GO Industrial

GRACO Hydraulic Dyna-Star 10:1 High Ratio Lubrication Pump 180 kg

$7,546.00 AUD
$7,546.00 AUD
Save $0
Sold out

Features

  • Uses up to 3 times less energy than pneumatic systems
  • Fewer moving parts reduces pump wear and maintenance
  • Self-lubricating for long-life and dependable operations
  • Ultra-quiet hydraulic motor
  • Graco's reciprocator piston minimizes change-over stalls
  • No assembly required, fits in a standard 120 lb (55 kg) grease drum
  • Lighter, more compact design than competition
  • Easy to connect, low-pressure hydraulic input

    • Graco Hydraulic Dyna-Star 10:1 High Ratio Lubrication Pump 180 kg

    Overview

    Graco’s 10:1 hydraulically-powered lubrication pumps designed for long life and reliable operation in demanding off-road mobile applications. Hydraulic Dyna-Star pumps provide reliable, quiet, ice-free performance at maximum pressure and low flow rates and are up to three times more energy efficient than comparable compressed-air systems.

    Electric pumps for heavy duty automatic lubrication and transfer systems.

        Shipping & Returns

        Our network of warehouses Australia-wide enables us to
        deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

        All returns must be pre-approved to ensure replacement and / or refund.

        Shipping & Returns

        Our network of warehouses Australia-wide enables us to
        deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

        All returns must be pre-approved to ensure replacement and / or refund.

        Warranty

        Read our complete warranty terms & conditions here.

        Warranty

        Read our complete warranty terms & conditions here.

        Secure Payment

        All our online payment methods are secured.

        Secure Payment

        All our online payment methods are secured.

        • Graco Hydraulic Dyna-Star Lubrication Pumps GO Industrial
        • Graco Hydraulic Dyna-Star Lubrication Pumps Manual - GO Industrial

        Specifications

      • Applications - Grease Dispensing
      • Maximum Input Pressure - 600 psi (41 bar)
      • Maximum Fluid Input Volume - 3 gpm (11.4 lpm)
      • Maximum Output Flow Rate - 1.1 lb/min (0.5 kg)
      • Maximum Fluid Output Pressure - 7,500 psi (517 bar)
        • TYPE Hydraulic Piston Pump
        AIR INLET SIZE (CM) 0.635
        AIR INLET SIZE (IN) 1/4
        AIR INLET SIZE (MM) 6.35
        APPLICATION Off-Road Equipment
        COMPATIBLE MATERIAL Grease
        FLUID OUTLET SIZE (CM) 1.27
        FLUID OUTLET SIZE (IN) 0.5
        FLUID OUTLET SIZE (MM) 12.7
        FLUID OUTLET THREAD TYPE NPT
        MAXIMUM NLGI GRADE #2
        MODEL Dyna-Star
        POWER TYPE Electric
        RESERVOIR SIZE (LB) 400
        IP RATING IP69K
        MAXIMUM FILL INLET PRESSURE (BAR) 4.14
        MAXIMUM FILL INLET PRESSURE (KPA) 4140
        MAXIMUM FILL INLET PRESSURE (PSI) 600
        MINIMUM CST GRADE (CST) 40
        OVERALL HEIGHT (CM) 123.2
        OVERALL HEIGHT (IN) 48.5
        OVERALL HEIGHT (MM) 1232

          Features

        • Uses up to 3 times less energy than pneumatic systems
        • Fewer moving parts reduces pump wear and maintenance
        • Self-lubricating for long-life and dependable operations
        • Ultra-quiet hydraulic motor
        • Graco's reciprocator piston minimizes change-over stalls
        • No assembly required, fits in a standard 120 lb (55 kg) grease drum
        • Lighter, more compact design than competition
        • Easy to connect, low-pressure hydraulic input
