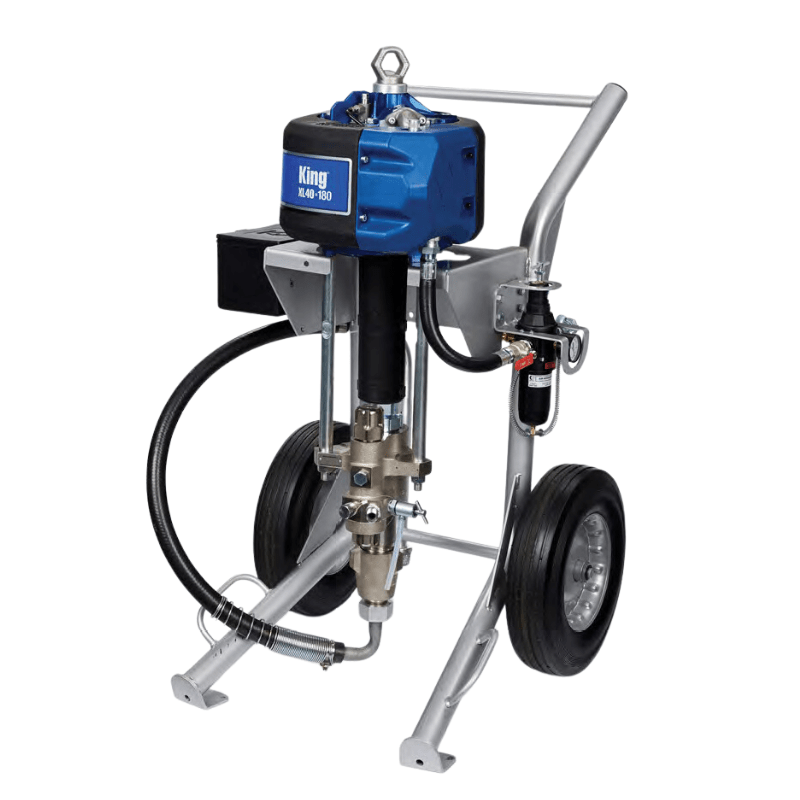

GRACO King 30:1 Sprayer Integrated Filter Heavy Duty Cart Air Controls Siphon Kit - GO Industrial - K30FH0
  • GRACO King 30:1 Sprayer Integrated Filter Heavy Duty Cart Air Controls Siphon Kit - GO Industrial - K30FH0
1 1

GRACO King 30:1 Sprayer Integrated Filter Heavy Duty Cart Air Controls Siphon Kit

SKU: K30FH0

GRACO King 30:1 Sprayer Integrated Filter Heavy Duty Cart Air Controls Siphon Kit

$10,978.00 AUD
$10,978.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Configuration

Other payment options

View full details
GRACO King 30:1 Sprayer Integrated Filter Heavy Duty Cart Air Controls Siphon Kit - GO Industrial - K30FH0

GRACO King 30:1 Sprayer Integrated Filter Heavy Duty Cart Air Controls Siphon Kit

From $10,978.00 AUD
From $10,978.00 AUD
Save $0
Sold out

Details

Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings.

Features

  • Simple maintenance - This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy. All motor parts are easily accessible and require simple maintenance.
  • Improved icing performance - Thermally isolated poppets are mounted separately and insulated from motor castings that can often drop below freezing. The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop. The icing potential has been reduced by up to 70%.
  • Less pulsation - with more than 145% higher exhaust capacity in the air valve, you’ll achieve a faster, smoother changeover. Eliminating the "wink" in your pattern – it is a difference you will feel.
  • Improved sealing and strength with the improved edge loading and seven throat pickings instead of five. The new MaxLife pump Lowers are designed for the most demanding jobs, providing unmatched durability and life.
  • Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.

    • Graco King 30:1 Sprayer, Integrated Filter, Heavy Duty Cart, Air Controls, Siphon Kit

    Overview

    High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    Specifications

    COMPATIBLE MATERIAL Protective Coating
    CONVERTIBLE Non-Convertible
    FEATURES Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
    FLUID INLET THREAD TYPE NPT
    FLUID OUTLET SIZE (IN) 1/2
    FLUID OUTLET SIZE (MM) 12.7
    FLUID OUTLET THREAD TYPE NPT
    FRAME CONFIGURATION Heavy-Duty Cart
    INCLUDES ポンプ, Pump, Pump, Pompe, bas de pompe, moteur, filtre standard, chariot lourd, commandes pneumatiques, kit siphon, Pumpe, Pomp, Pompa, 下部, Lower, Lower, Unterpumpe, onderpomp, Pompante, モーター, Motor, Motor, Motor, motor, Motore, 標準フィルター, Standard Filter, Standard Filter, Standardfilter, standaard filter, Filtro standard, 軽量カート, Heavy Duty Cart, Heavy Duty Cart, robustes Fahrgestell, onderstel voor zwaar gebruik, Carrello per impieghi gravosi, エアコントロール, Air Controls, Air Controls, Luftregler, luchtregelaars, Comandi pneumatici, サイホンキット, Siphon Kit, Siphon Kit, Saugrohrsatz, sifonset, Kit sifone
    MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 81.48
    MAXIMUM TIP SIZE (IN) Variable
    MAXIMUM WORKING PRESSURE (PSI) 3150
    STANDARDS MET CE
    MAXIMUM WORKING PRESSURE (KPA) 21700
    POWER SOURCE Air
    MAXIMUM WORKING PRESSURE (MPA) 21.7
    MODEL King
    MAXIMUM WORKING PRESSURE (BAR) 217
    WEIGHT (KG) 89
    WEIGHT (LB) 196
    PUMP TYPE Pneumatic Piston Pump
    TYPE Airless Sprayer
    MOTOR TYPE XL High Performance
    WETTED MATERIAL Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather
    MAXIMUM FLUID WORKING PRESSURE (PSI) 3150
    PUMP MOUNT TYPE Heavy-Duty Cart
    PUMP ROD TYPE MaxLife
    NUMBER OF GUNS 0
    GUN MODEL No Applicator
    PRODUCT TYPE Single Leg
    MATERIAL APPLICATION 塗料, Paints, Paints, Peintures, Farben, Verven, Vernici, プライマー, Primers, Primers, couches primaires, Grundierungen, primers, Primer
    CONTROL TYPE Fixed Ratio
    PACKAGE OPTIONS Air Controls, Siphon Kit
    MAXIMUM AIR INLET PRESSURE (PSI) 150
    STROKE LENGTH (IN) 4.75
    LOWER TYPE Integrated Filter
    PACKAGE PRESSURE RATIO (MOTOR/LOWER) 30:1 XL3400 / 220cc
    APPROVED FOR HAZARDOUS LOCATIONS Yes

      Features

    • Simple maintenance - This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy. All motor parts are easily accessible and require simple maintenance.
    • Improved icing performance - Thermally isolated poppets are mounted separately and insulated from motor castings that can often drop below freezing. The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop. The icing potential has been reduced by up to 70%.
    • Less pulsation - with more than 145% higher exhaust capacity in the air valve, you’ll achieve a faster, smoother changeover. Eliminating the "wink" in your pattern – it is a difference you will feel.
    • Improved sealing and strength with the improved edge loading and seven throat pickings instead of five. The new MaxLife pump Lowers are designed for the most demanding jobs, providing unmatched durability and life.
    • Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
