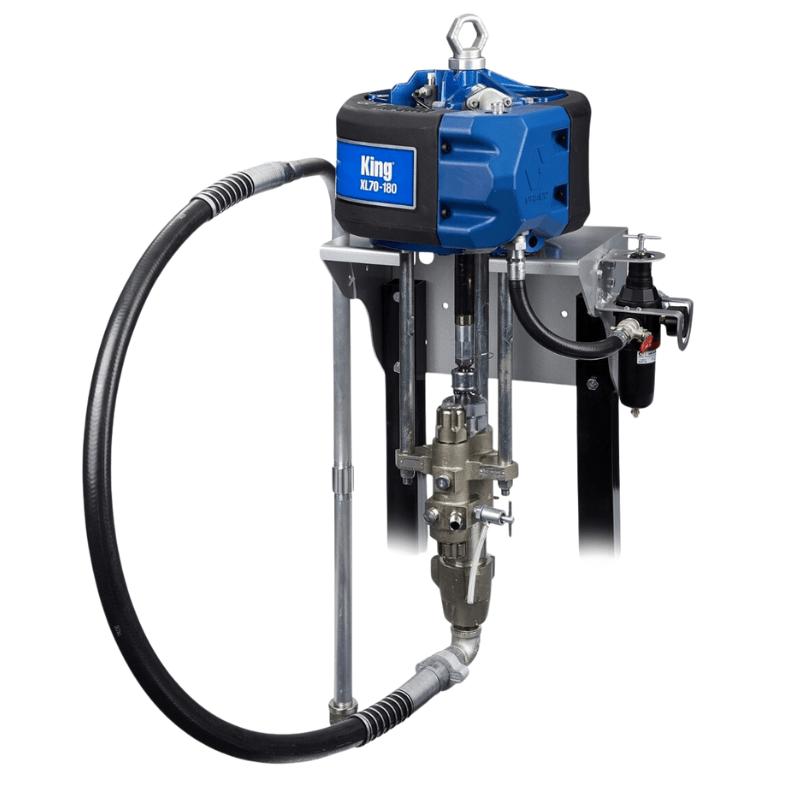

Graco King 30:1 Sprayer, Integrated Filter Wall Mount Air Controls Siphon Kit
Overview
High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Features
Features
Specifications
| COMPATIBLE MATERIAL | Protective Coating |
|---|---|
| CONVERTIBLE | Non-Convertible |
| FEATURES | Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels |
| FLUID INLET SIZE (IN) | 1-1/4 |
| FLUID INLET SIZE (MM) | 31.75 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (IN) | 1/2 |
| FLUID OUTLET SIZE (MM) | 12.7 |
| FRAME CONFIGURATION | Wall Mount |
| INCLUDES | 泵, Pump, Pump, Pompe, bas de pompe, moteur, filtre standard, montage mural, commandes pneumatiques, kit siphon, Pumpe, Pomp, Pompa, 下部, Lower, Lower, Unterpumpe, onderpomp, Pompante, 马达, Motor, Motor, Motor, motor, Motore, 标准过滤器, Standard Filter, Standard Filter, Standardfilter, standaard filter, Filtro standard, 壁式支架, Wall Mount Bracket, Wall Mount Bracket, Wandmontagehalterung, wandmontagebeugel, Staffa per montaggio a parete, 空气控制器, Air Controls, Air Controls, Luftregler, luchtregelaars, Comandi pneumatici, 虹吸配件包, Siphon Kit, Siphon Kit, Saugrohrsatz, sifonset, Kit sifone |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 81.48 |
| MAXIMUM TIP SIZE (IN) | Variable |
| MAXIMUM WORKING PRESSURE (PSI) | 3150 |
| STANDARDS MET | CE |
| MAXIMUM WORKING PRESSURE (KPA) | 21700 |
| POWER SOURCE | Air |
| MAXIMUM WORKING PRESSURE (MPA) | 21.7 |
| MODEL | King |
| MAXIMUM WORKING PRESSURE (BAR) | 217 |
| WEIGHT (KG) | 89 |
| WEIGHT (LB) | 196 |
| PUMP TYPE | Pneumatic Piston Pump |
| TYPE | Airless Sprayer |
| MOTOR TYPE | XL High Performance |
| WETTED MATERIAL | Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather |
| MAXIMUM FLUID WORKING PRESSURE (PSI) | 3150 |
| PUMP MOUNT TYPE | Wall Mount |
| PUMP ROD TYPE | MaxLife |
| NUMBER OF GUNS | 0 |
| GUN MODEL | No Applicator |
| PRODUCT TYPE | Single Leg |
| MATERIAL APPLICATION | 油漆, Paints, Paints, Peintures , Farben, Verven, Vernici, 底漆, Primers, Primers, couches primaires, Grundierungen, primers, Primer |
| CONTROL TYPE | Fixed Ratio |
| PACKAGE OPTIONS | Air Controls, Siphon Kit |
| MAXIMUM AIR INLET PRESSURE (PSI) | 150 |
| STROKE LENGTH (IN) | 4.75 |
| LOWER TYPE | Integrated Filter |
| PACKAGE PRESSURE RATIO (MOTOR/LOWER) | 30:1 XL3400 / 220cc |
| APPROVED FOR HAZARDOUS LOCATIONS | Yes |
