Details

Superior air-operated pumps for high-volume and high-pressure waterproofing, fireproofing and protective coatings.

Features

  • Simple Maintenance
    • This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
    • All motor parts are easily accessible and require simple maintenance.
  • Improved Icing Performance
    • The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
    • The icing potential has been reduced by up to 70%
  • Less Pulsation
    • With more than 145% higher exhaust capacity in the air valve, you'll achieve a faster, smoother changeover.
    • Eliminating the "wink" in your pattern - it is a difference you will feel.
  • New MaxLife Pump Lowers
    • Improved sealing and strength with the improved edge loading and seven throat pickings instead of five. The new MaxLife pump Lowers are designed for the most demanding jobs, providing unmatched durability and life.
  • New Air Motor
    • Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.

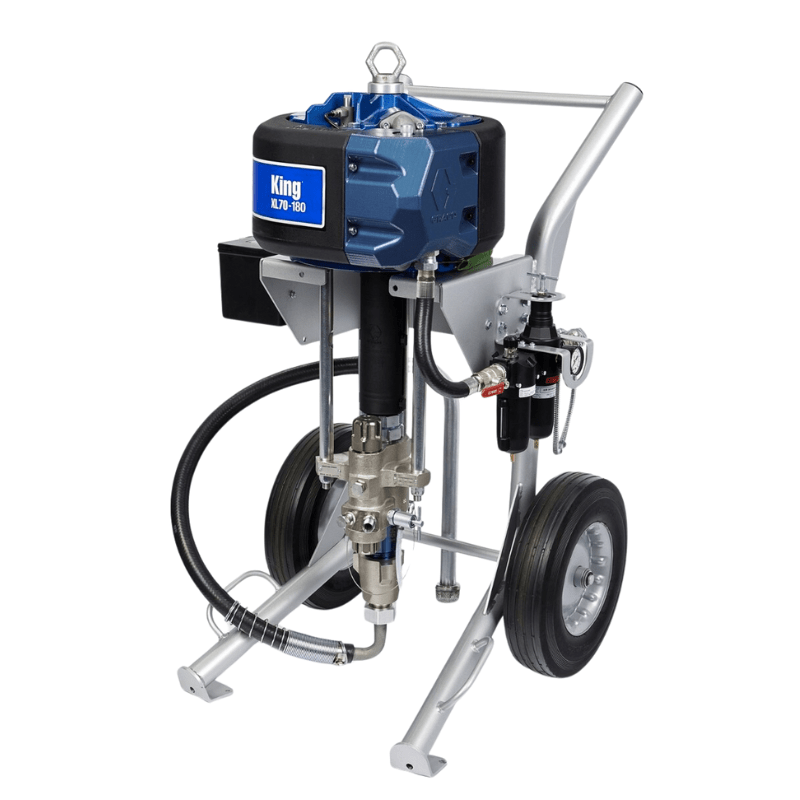

Graco King 45:1 Sprayer, Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit

Overview

High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

Approved for Hazardous Locations Yes
Compatible Material Protective Coating
Construction Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather
Control Type Fixed Ratio
Convertible Non-Convertible
Features Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels
Fluid Inlet Size (in) 1-1/4
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 1
Fluid Outlet Thread Type NPT
Frame Configuration Heavy-Duty Cart
Gun Model No Applicator
Includes Pump, Lower, Motor, Standard Non-Filter, Heavy Duty Cart, Air Controls, Siphon Kit
Lower Type Non-Filter
Material Application Paints, Primers
Maximum Air Inlet Pressure (psi) 150
Maximum Fluid Working Pressure (psi) 4500
Maximum Sound Pressure Level (dB(A)) 81.48
Maximum Tip Size (in) Variable
Maximum Working Pressure (MPa) 31
Maximum Working Pressure (psi) 4500
Model King
Motor Type XL High Performance
Number of Guns 0
Package Options Air Controls, Siphon Kit
Package Pressure Ratio (Motor/Lower) 45:1 XL6500 / 290cc
Power Source Air
Product Type Single Leg
Pump Mount Type Heavy-Duty Cart
Pump Rod Type MaxLife
Pump Type Pneumatic Piston Pump
Standards Met CE
Stroke Length (in) 4.75
Type Airless Sprayer
Weight (lb) 215

    Features

    • Simple Maintenance
      • This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
      • All motor parts are easily accessible and require simple maintenance.
    • Improved Icing Performance
      • The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
      • The icing potential has been reduced by up to 70%
    • Less Pulsation
      • With more than 145% higher exhaust capacity in the air valve, you'll achieve a faster, smoother changeover.
      • Eliminating the "wink" in your pattern - it is a difference you will feel.
    • New MaxLife Pump Lowers
      • Improved sealing and strength with the improved edge loading and seven throat pickings instead of five. The new MaxLife pump Lowers are designed for the most demanding jobs, providing unmatched durability and life.
    • New Air Motor
      • Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
