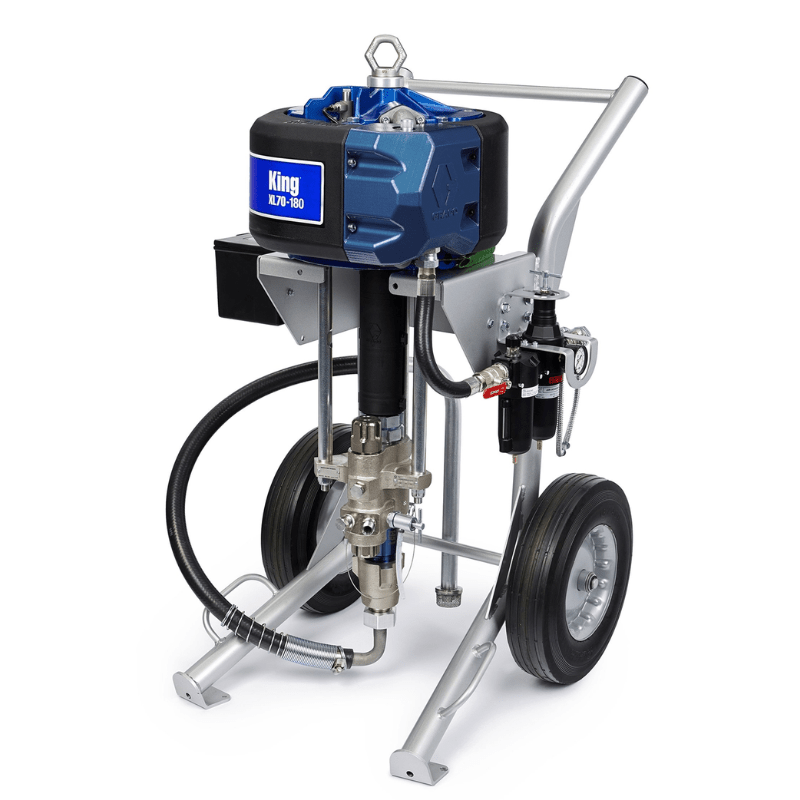

Graco King 70:1 Sprayer, Max Life Filter, Heavy Duty Cart, Air Controls, Siphon Kit
Overview
High-quality, high-volume, high-pressure. The Graco King pneumatic airless sprayers are the most powerful machines for protective coatings. The system provides the applicator output values, pressure ratios and pumping capacities never seen before. The Graco King units are designed to withstand the harshest environmental conditions and easily handle the toughest protective coatings and corrosion control applications. With 10 different ratios available, there is a sprayer with the correct pressure and flow characteristics for your application.
Features
Features
-
Simple Maintenance
- This air motor has 50% less parts when compared to the NXT valve, making maintenance and troubleshooting easy.
- All motor parts are easily accessible and require simple maintenance.
-
Improved Icing Performance
- The newly designed poppets and external pilot lines virtually eliminate pilot valve freezing that can result in an instant stop.
- The icing potential has been reduced by up to 70%
-
Less Pulsation
- With more than 145% higher exhaust capacity in the air valve, you'll achieve a faster, smoother changeover.
- Eliminating the "wink" in your pattern - it is a difference you will feel.
- New MaxLife Pump Lowers
- Improved sealing and strength with the improved edge loading and seven throat pickings instead of five. The new MaxLife pump Lowers are designed for the most demanding jobs, providing unmatched durability and life.
- New Air Motor
- Multi gun capabilities Graco’s powerful new air motor lets you use multiple guns with almost no perceivable pulsation. A new manifold has been designed to simplify the installation of multiple guns.
Specifications
| Approved for Hazardous Locations | Yes |
|---|---|
| Compatible Material | Protective Coating |
| Construction | Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather |
| Control Type | Fixed Ratio |
| Convertible | Non-Convertible |
| Features | Exposed Thermally Isolated Poppets, De-Icing Valve, Tool Box, Trusted XL Motor, Protective Rod Guard, Robust Air Controls, Xtreme Lowers, Improved Siphon Hose, Cart With Wheels |
| Fluid Inlet Size (in) | 1-1/4 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | NPT |
| Frame Configuration | Wall Mount |
| Gun Model | No Applicator |
| Includes | Pump, Lower, Motor, Standard Filter, Wall Mount Bracket, Air Controls, Siphon Kit |
| Lower Type | Integrated Filter |
| Material Application | Paints, Primers |
| Maximum Air Inlet Pressure (psi) | 150 |
| Maximum Fluid Working Pressure (psi) | 6000 |
| Maximum Sound Pressure Level (dB(A)) | 81.48 |
| Maximum Tip Size (in) | Variable |
| Maximum Working Pressure (MPa) | 41.7 |
| Maximum Working Pressure (psi) | 6000 |
| Model | King |
| Motor Type | XL High Performance |
| Number of Guns | 0 |
| Package Options | Air Controls, Siphon Kit |
| Package Pressure Ratio (Motor/Lower) | 60:1 XL6500 / 220cc |
| Power Source | Air |
| Product Type | Single Leg |
| Pump Mount Type | Wall Mount |
| Pump Rod Type | MaxLife |
| Pump Type | Pneumatic Piston Pump |
| Standards Met | CE |
| Stroke Length (in) | 4.75 |
| Type | Airless Sprayer |
| Weight (lb) | 214 |
Manuals
- Graco King 30-1 Sprayer Integrated Filter Manual 1 3A5423EN-G
- Graco King 30-1 Sprayer Integrated Filter Manual 2 311762EN-ZAR
- Graco King 30-1 Sprayer Integrated Filter Manual 3 3A5422EN-K
- Graco King 30-1 Sprayer Integrated Filter Manual 4 3A0293EN-J
- Graco King 30-1 Sprayer Integrated Filter Manual 6 309341EN-A
