Details

INTRODUCING THE “BIG BROTHER” XTREME TORQUE MOTOR!

15X More Torque than Traditional Motors

The power to pump even the heaviest materials

8X Finer Resolution

For superior ratio accuracy and Control

90% Lower Running Speeds

Reduces friction and heat for trouble-free operation – everyday!

Silent Operation

Ideal for comfort and extending spray times in noise restricted areas

SMOOTH, PRECISE OPERATION WITH EVERY PUMP STROKE!

Low -Friction, Silent Design

Precise, linear action for long pump life and no side loading
Features 100 hardened ball bearings, ensuring peak efficiency and lasting durability
Offers long, 12 cm stroke for extended life

Built to Last

Heavy-duty hardened steel construction
Requires little to no maintenance

Modular Design to Keep You Spraying

Allows simple on-the-job replacement
Perfect for remote jobsites when you can’t afford downtime

DIRECT-IMMERSION DESIGN WITH PROCONNECT™

Job Site Proven Design

Proven design and performance
Direct Immersion design fits into a 20L bucket

Heavy-Duty Construction

Chromex™ Rod and Stainless Steel cylinder for maximum life & performance
Xtreme Seal™ UHMWPE & Leather packings for ultimate durability

Eliminate Costly Downtime with ProConnect Pump Removal System

Quickly & easily pump removal with simple tools
Perfect for on-the-job maintenance and pump cleanout
Pin-less rod design – no parts to lose

PRECISION PRESSURE CONTROL WITH WATCHDOG™

Next-Level Spray Performance

Lowest dead-band, delivering a consistent spray fan without pressure fluctuations
Spray thicker coatings and run longer hoses

Simple Operation

Locking, single-knob adjustable pressure – protects your setting
LED status indicator light to monitor operation

WatchDog Pump Protection

Automatically shuts down pump when it runs out of material
Prevents dry pumping damage

Just Plug it in

ProGuard equipped top prevent electrical damage from extreme jobsite power conditions
400V 32A (3ph+N) input power with CEE 5P plug
230V 16A (1ph) input power with 2P+A plug

WHY KING E-MAX XT?

COMPRESSORS ARE INEFFICIENT AND EXPENSIVE

Significant savings in Fuel, Rental, Acquisition & Maintenance Costs

HIGHEST PERFORMANCE ELECTRIC AIRLESS SPRAYER

Portable & Easy to operate:

Plug in, turn on, adjust pressure and spray

Quiet operation for comfortable use in any environment

XT Motors low RPM, High-torque design for silent operation
Precision Drive for modular, smooth & quiet operation
Higher productivity from extended spray hours in noise limited areas
More versatility as it can be operated inside

Easy care & maintenance:

Next level of ease-of-use and innovation
Endurance ProConnect Pumps for fast pump replacement
Watchdog Pump Protection to minimise wear from running dry

King E-Max XT 40

Max Pressure: 7250 psi (500 bar)
Max Flow: 2.9 gpm (10.9 lpm)
Max Tip: .053

Includes:

Airless Gun
3/8” x 15m Hose
¼” x 1.8m Whip Hose
Switch Tip and Guard
Suction Set

Features

XT Electric Motor

High-torque, low RPM design for maximum performance
230V-30A input power
Zero-maintenance brushless design
Designed and manufactured by Graco in the USA

SMARTCONTROL

Advanced control offers consistent spray fan without fluctuations
Single-knob pressure adjustment — nothing is easier
WatchDog™ pump protection system automatically shuts down the pump when material runs out

HEAVY-DUTY CART

Designed for the toughest job site conditions
Heavy-duty painted steel construction
Flat-proof tires for maximum convenience

DIRECT-IMMERSION ENDURANCE ® PUMP WITH PROCONNECT

Chromex ® rod and stainless steel cylinder for maximum life and performance
Direct-immersion design fits 5 gallon bucket, or use supplied suction set - you decide!
Included in Endurance Advantage Program!
ProConnect pump removal and replacement keeps you spraying

REMOVE THE PUMP IN 3 EASY STEPS

Remove the hose and pin
Loosen star nut and open door
Slide pump out

PRECISION DRIVE

Offers precise linear action for long pump life and no side loading
Long stroke design with hardened steel construction is build to last
Worry-free design requires little to no maintenance

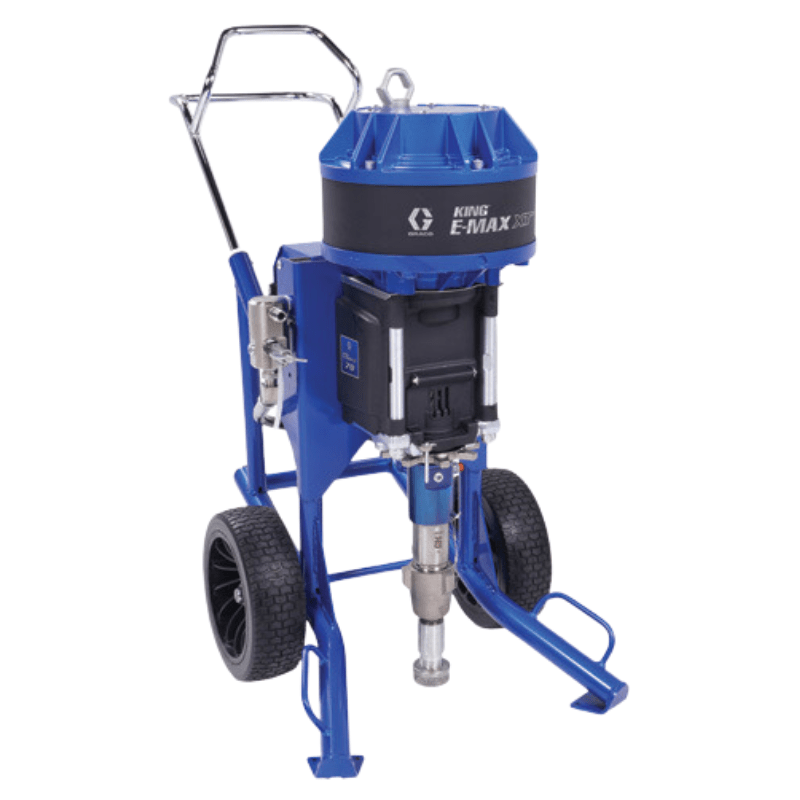

Graco King E-MAX XT 70 Range Electric Airless Sprayer

Name: Graco King E-MAX XT 70 Range Electric Airless Sprayer
Brand: Graco Australia Pty Ltd
SKU: 44951859855577
Availability: InStock

Overview

EXPERIENCE THE EVOLUTION OF SPRAY TECHNOLOGY

Introducing the industry’s most powerful line of electric sprayers! Designed for big jobs, this lineup delivers unmatched performance with the toughest coatings and is equipped with groundbreaking features that reduce downtime.

Shut down the compressor and save $1000’S per week
Silent operation — Work anytime, anywhere — Even indoors
Legendary king performance — Now in electric

The King E-Max XT is the ideal solution for contractors who need the power and performance of a large air or gas powered sprayer – but in an electric, offering:

Unmatched performance with the most challenging coatings
Innovative features that minimise downtime
Portability and near silent operation
Freedom from the expense of fuel and the need large air compressors
Packages for Protective Coatings, Roofing and Architectural jobs

Transform Your Coatings Application: NO AIR COMPRESSOR REQUIRED!

Increase Efficiency: Reallocate compressors or eliminate their use after blasting and priming.
Reduce Dependence: Minimise the need for air, rental equipment, and rebuilds.
Boost Profits: Convert what you used to spend on fuel and compressor expenses into profits.
Max Pressure: 7250 psi (500 bar)
Max Flow: 2.9 gpm (10.9 lpm)
Max Tip: .053
