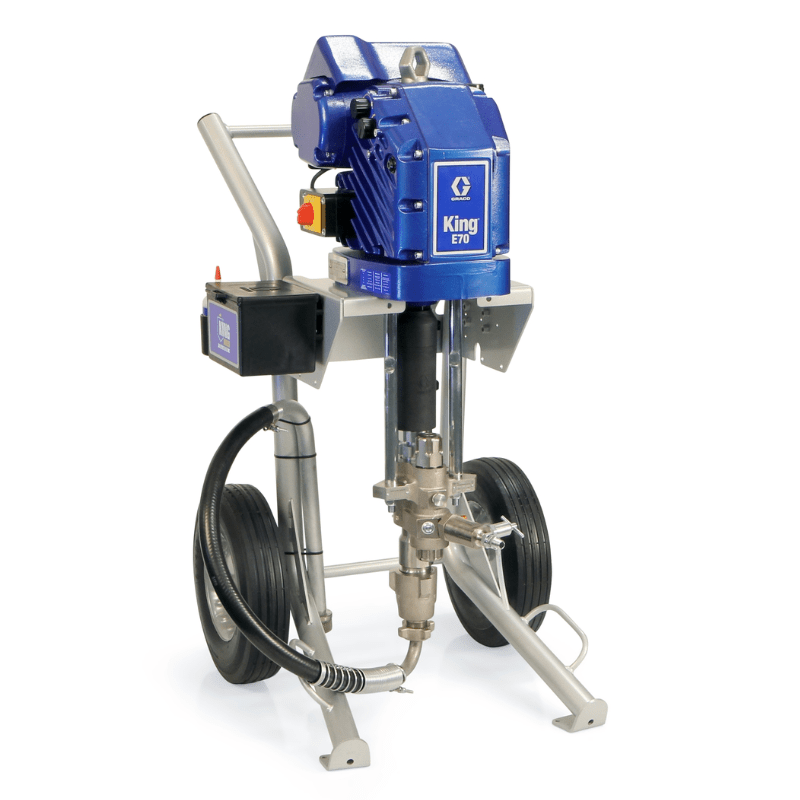

GRACO King E70 Heavy Duty Cart Integrated Filter
SKU: 273747GRACO King E70 Heavy Duty Cart Integrated Filter
Regular price
$21,780.00 AUD
Sale price
$21,780.00 AUD
Regular price
$0.00 AUD
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
Holiday Break Announcement
Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Holiday Break Announcement
Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Other payment options
Delivery & Shipping
GRACO King E70 Heavy Duty Cart Integrated Filter
Regular price
From $21,780.00 AUD
Sale price
From $21,780.00 AUD
Regular price
$0.00 AUD
Unit price
per
Save $0
Sold out
Features
Graco King E70 Heavy Duty Cart Integrated Filter
Overview
The Graco King E-series electric airless sprayer is for protective coatings and select models have been approved for hazardous locations. The King E-series operates on a more reliable, convenient and available electric power source, which removes job site reliance on compressed air. Furthermore, electric technology reduces pulsation and eliminates motor icing, making your jobs run smoother every single time
- Electric - when wired correctly, electric power is safe, reliable and convenient for you and your customers. Free your operation from the reliability on an air compressor. The days of essential maintenance on large-scale compressors are over.
- No icing - by eliminating the need for an air motor, icing problems are reduced. Icing may be more prevalent under conditions of a high level of humidity, resulting in a slowing of the motor and loss of pressure which can be detrimental to your production rates. The e-Xtreme sprayer is an electric solution that will keep you spraying at the pump’s maximum potential.
- Reduced noise - no matter the application, noise exposure can dramatically affect your working conditions. The quiet electric motor improves working conditions significantly. When compared to an air motor, the King E-series is up to five times quieter.
- Plug-in & Spray - the King E-series runs on multiple power options (120V or 240V). Able to handle Graco’s most popular airless spray tip sizes with a consistent pattern thanks to the low rate of pulsation. This smooth pattern is noticeable at the gun. Capable of spraying most high-solid coatings – it is sure to quickly become your go-to KING!
- Energy savings - with improved efficiency and an overall lower cost of ownership, the King E-series is the most cost-effective solution when compared to pneumatic airless sprayers. The King E-series saves up to 80% of energy costs when compared to an air operated sprayer*. By removing the need for an expensive, heavy air compressor, you can stay productive by using the most reliable power source available – electricity! *Study completed for a pump pressure of 241 bar (3500 psi) for 20 hours/week; spraying 1226 L (324 gal) of 73% volume solids epoxy with XHD519 tip.
- Three-year limited warranty - every piece of equipment we manufacture comes with one of the industry’s strongest warranties. The King E-series offer a three-year warranty on the gear train, chassis, and electric motor. Electronics cover and all other King E-series driver parts are covered by the standard one-year warranty. See product manual for specifics on all warranty information.
Specifications
| COMPATIBLE MATERIAL | Protective Coating |
|---|---|
| FLUID INLET SIZE (IN) | 1 |
| FLUID INLET SIZE (MM) | 25.4 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (IN) | 1/2, 3/8 |
| FLUID OUTLET SIZE (MM) | 12.7;9.525 |
| FLUID OUTLET THREAD TYPE | NPT |
| FRAME CONFIGURATION | Heavy-Duty Cart |
| HOSE INLET DIAMETER (CM) | 0.9525 |
| HOSE INLET DIAMETER (IN) | 3/8 |
| HOSE INLET DIAMETER (MM) | 9.525 |
| INLET PAINT STRAINER | 8 Mesh, 16 Mesh |
| MAXIMUM FLOW RATE (GPM) | 0.7 |
| MAXIMUM FLOW RATE (L/MIN) | 2.6 |
| MAXIMUM HOSE LENGTH (FT) | 210 |
| MAXIMUM HOSE LENGTH (M) | 64 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 77 |
| MAXIMUM TIP SIZE (IN) | 0.023 |
| MAXIMUM WORKING PRESSURE (PSI) | 7250 |
| MAXIMUM WORKING PRESSURE (KPA) | 50000 |
| POWER SOURCE | Electric |
| MAXIMUM WORKING PRESSURE (MPA) | 50 |
| PRESSURE CONTROL TYPE | Electric Control Knob |
| MODEL | King |
| MAXIMUM WORKING PRESSURE (BAR) | 500 |
| WEIGHT (KG) | 134 |
| WEIGHT (LB) | 295 |
| SERIES | E70 |
| PUMP TYPE | Pneumatic Piston Pump |
| TYPE | Airless Sprayer |
| PHASE | 1 |
| MOTOR TYPE | Electric |
| WETTED MATERIAL | Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum |
| MAXIMUM FLUID WORKING PRESSURE (PSI) | 7250 |
| OUTLET PAINT FILTER | 60 Mesh |
| PUMP SLEEVE MATERIAL | Hard Chrome, Stainless Steel |
| MINIMUM GENERATOR POWER (KW) | 5 |
| FREQUENCY (HZ) | 50/60 |
| PUMP ROD TYPE | Chromex |
| MINIMUM GENERATOR POWER (W) | 5000 |
| NUMBER OF GUNS | 1-2 |
| AMPERAGE (A) | 120V/30A, 240V/20A |
| GUN INCLUDED | 0 |
| GUN MODEL | No Applicator |
| PUMP RATIO | 70:1 (7250 psi) |
| PRODUCT TYPE | Single Leg |
| MATERIAL APPLICATION | Protective Coatings |
| CONTROL TYPE | Pressure Control Knob |
| LOWER CONFIGURATION | Integrated Filter |
| MAXIMUM OPERATING TEMPERATURE (°C) | 50 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 120 |
| FLUID OUTLET THREAD GENDER | Male |
| FLUID INLET THREAD GENDER | Male |
| LOWER TYPE | 115cc Xtreme Duty Lower |
| MINIMUM HOSE LENGTH (FT) | 50 |
| MINIMUM HOSE INSIDE DIAMETER (IN) | 0.375 |
| MINIMUM OPERATING TEMPERATURE (°C) | -5 |
| MINIMUM OPERATING TEMPERATURE (°F) | 23 |
| MAXIMUM CONTINUOUS CYCLE RATE (CPM) | 44 |
| APPROVED FOR HAZARDOUS LOCATIONS | No |
