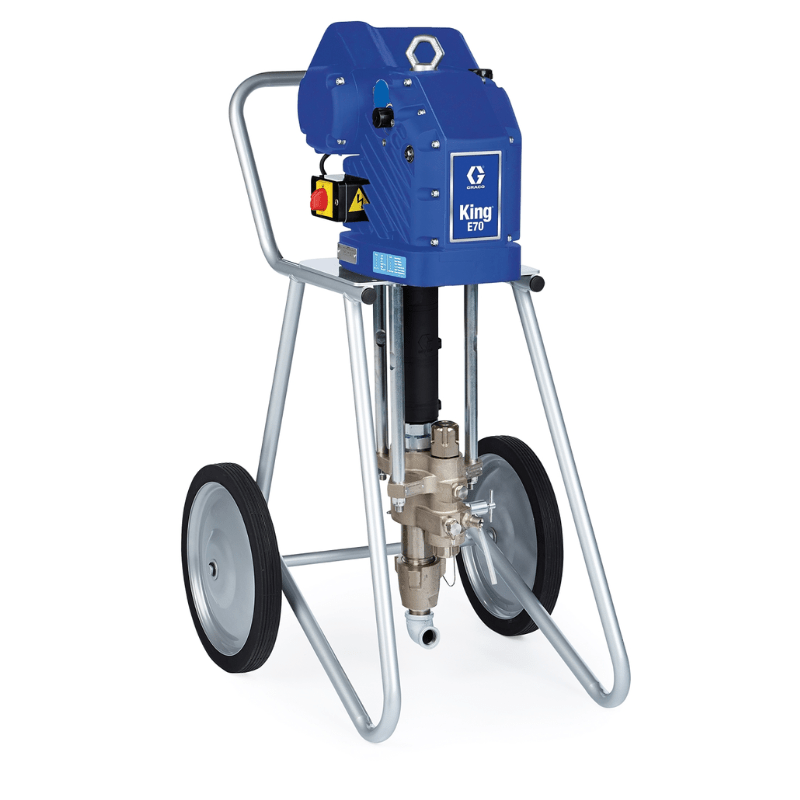

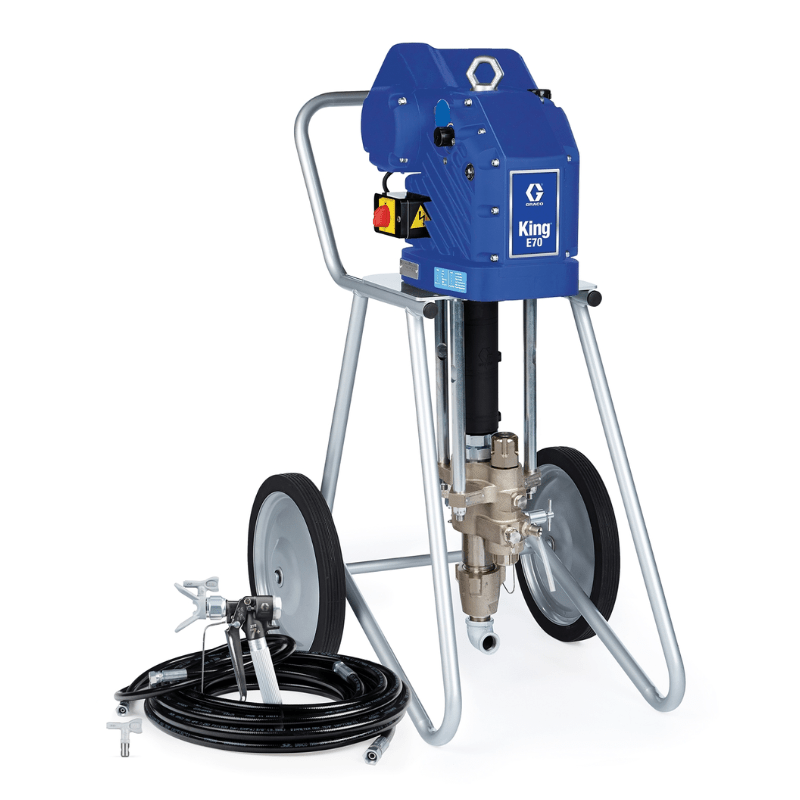

GRACO King E70 Lightweight Cart Integrated Filter
SKU 273749
$21,890.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
The Graco King E-series electric airless sprayer is for protective coatings and select models have been approved for hazardous locations. The King E-series operates on a more reliable, convenient and available electric power source, which removes job site reliance on compressed air. Furthermore, electric technology reduces pulsation and eliminates motor icing, making your jobs run smoother every single time.
Features
Features
Specifications
| COMPATIBLE MATERIAL | Protective Coating |
|---|---|
| FLUID INLET SIZE (IN) | 1 |
| FLUID INLET SIZE (MM) | 25.4 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (IN) | 1/2, 3/8 |
| FLUID OUTLET SIZE (MM) | 12.7;9.525 |
| FLUID OUTLET THREAD TYPE | NPT |
| FRAME CONFIGURATION | Lightweight Cart |
| HOSE INLET DIAMETER (CM) | 0.9525 |
| HOSE INLET DIAMETER (IN) | 3/8 |
| HOSE INLET DIAMETER (MM) | 9.525 |
| INLET PAINT STRAINER | 8 Mesh, 16 Mesh |
| MAXIMUM FLOW RATE (GPM) | 0.7 |
| MAXIMUM FLOW RATE (L/MIN) | 2.6 |
| MAXIMUM HOSE LENGTH (FT) | 210 |
| MAXIMUM HOSE LENGTH (M) | 64 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 77 |
| MAXIMUM TIP SIZE (IN) | 0.023 |
| MAXIMUM WORKING PRESSURE (PSI) | 7250 |
| MAXIMUM WORKING PRESSURE (KPA) | 50000 |
| POWER SOURCE | Electric |
| MAXIMUM WORKING PRESSURE (MPA) | 50 |
| PRESSURE CONTROL TYPE | Electric Control Knob |
| MODEL | King |
| MAXIMUM WORKING PRESSURE (BAR) | 500 |
| WEIGHT (KG) | 134 |
| WEIGHT (LB) | 295 |
| SERIES | E70 |
| PUMP TYPE | Electric Piston Pump |
| TYPE | Airless Sprayer |
| PHASE | 1 |
| MOTOR TYPE | Electric |
| WETTED MATERIAL | Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum |
| MAXIMUM FLUID WORKING PRESSURE (PSI) | 7250 |
| OUTLET PAINT FILTER | 60 Mesh |
| PUMP SLEEVE MATERIAL | Hard Chrome, Stainless Steel |
| MINIMUM GENERATOR POWER (KW) | 5 |
| FREQUENCY (HZ) | 50/60 |
| PUMP ROD TYPE | Chromex |
| MINIMUM GENERATOR POWER (W) | 5000 |
| NUMBER OF GUNS | 1-2 |
| AMPERAGE (A) | 120V/30A, 240V/20A |
| GUN INCLUDED | 0 |
| GUN MODEL | No Applicator |
| PUMP RATIO | 70:1 (7250 psi) |
| PRODUCT TYPE | Single Leg |
| MATERIAL APPLICATION | Protective Coatings |
| CONTROL TYPE | Pressure Control Knob |
| LOWER CONFIGURATION | Integrated Filter |
| MAXIMUM OPERATING TEMPERATURE (°C) | 50 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 120 |
| FLUID OUTLET THREAD GENDER | Male |
| FLUID INLET THREAD GENDER | Male |
| LOWER TYPE | 115cc Xtreme Duty Lower |
| MINIMUM HOSE LENGTH (FT) | 50 |
| MINIMUM HOSE INSIDE DIAMETER (IN) | 0.375 |
| MINIMUM OPERATING TEMPERATURE (°C) | -5 |
| MINIMUM OPERATING TEMPERATURE (°F) | 23 |
| MAXIMUM CONTINUOUS CYCLE RATE (CPM) | 44 |
| APPROVED FOR HAZARDOUS LOCATIONS | No |
