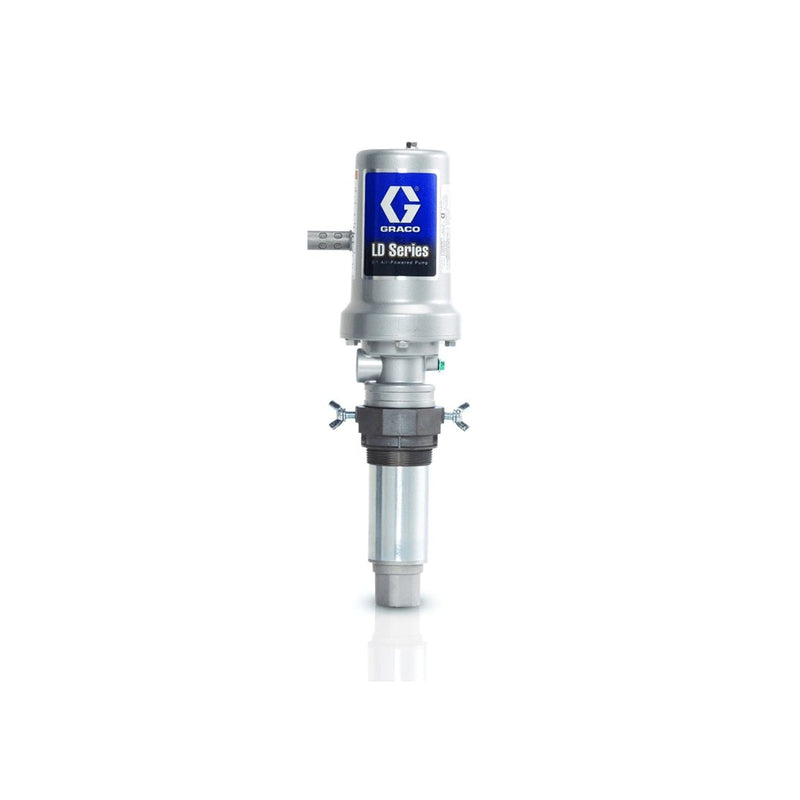

GRACO LD Pump 50:1 Air Driven
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
- Spread the cost with LeaseGO. .
Dispatch options
GO stock or Melbourne supplier stock
Australia-wide delivery
Delivery to your job site
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
The Graco LD Series pump is the latest lubrication solution from Graco. This affordable, full-featured pump is designed for lower volume applications and is available in 3:1 and 5:1 ratios for oil and 50:1 for grease, fine-tuned for a compact, flexible and durable solution.
Graco brings the field-proven performance found in the FireBall pump, with fast repairs, flexible configuration and an industry-leading warranty built in at a competitive price.
Features
Pilot Valve: A patent-pending self-cleaning design increases reliability in dirty air environments and minimises pressure drop with rapid changeovers for reduced stalling and smoother flow.
5 Year Warranty: Backed by an industry-leading Graco factory 5 year warranty.
Three Inch Air Motor: A powerful three inch air motor provides more power to create better flow.
Bung Adapter: An adjustable bung adapter is included, with built-in slide adjustment and easy-set hand screws to fit more applications.
Durable Design: A patent-pending cup and plate design removes the need for O-rings that wear out faster, for a longer-lasting solution.
NXT Air Valve: Reduces icing in continuous-use applications and uses less air for better efficiency, and can be repaired or replaced without tearing down the internal pump components.
Modular Air Valve: Air inlet and exhaust locations configure with just four bolts for simple installation.
Thermal Relief and Inlet Strainer: Built-in thermal relief (oil only) protects equipment from thermal expansion, and a built-in inlet strainer (oil only) protects the pump from contaminants.
Included accessories
Specifications
| Fluid Pressure Ratio | 50:1 |
|---|---|
| Maximum Fluid Working Pressure | 517 bar / 51.7 MPa |
| Air Operation Range | 1.37 to 10.3 bar / 0.137 to 1.03 MPa |
| Pump Cycles per kg | 103 cycle/kg |
| Maximum Recommended Pump Speed | 120 cycles/min |
| Recommended Speed for Optimum Pump Life | 60 cycles/min or lower flow rate, 0.6 kg/min |
| Wetted Parts | Steel, brass, nitrile rubber, polyurethane, UHMWPE, acetal |
| Sound Pressure Level | 72.9 dB(a) |
| Sound Power Level | 82.0 dB(a) |
| Approximate Weight | 35 lb drum 5.1 kg, 120 lb drum 6.8 kg, 400 lb drum 7.7 kg |
