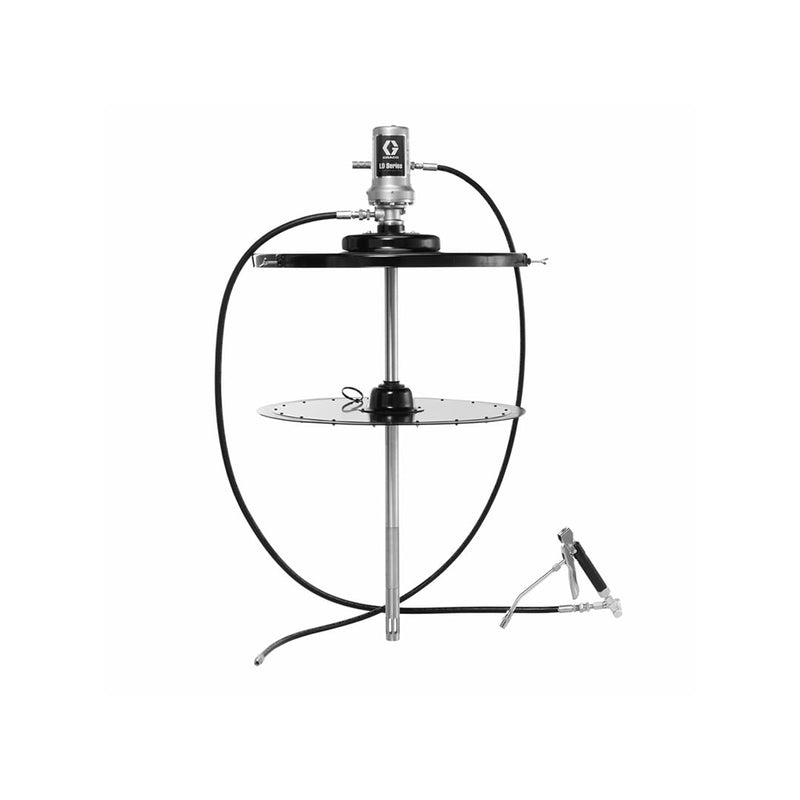

GRACO LD Pump Kit 50:1 Drum 180kg
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Discover the Value of Graco LD™ Series Pumps. Stay ahead of the competition with the latest product solution from Graco Lubrication—the LD Series Pump.
The affordable and full featured LD is designed for lower volume applications and is available in 3:1 and 5:1 for oil and 50:1 for grease. These pumps are fine-tuned for a compact, flexible and still incredibly durable solution.
Specifications
| LD Series Grease Models | |
| Maximum Fluid Working Pressure |
517 bar, 51.7 MPa
|
| Fluid Pressure Ratio |
50:1
|
| Air Operation Range |
1.37 to 10.3 bar, 0.137 to 1.03 MPa
|
| Air Consumption (at 100 psi) |
See performance curve in instruction manual 3A1334
|
| Pump Cycles per pound (cycles per kg) |
103 cycle/kg
|
| Maximum Recommended Pump Speed |
120 cycles/min
|
| Recommended Speed for Optimum Pump Life |
60 cycles/min or lower flow rate, 0.6 kg/min
|
| Wetted parts |
steel, brass, nitrile rubber, polyurethane, UHMWPE, acetal
|
| Sound Pressure Level, calculated at a distance of 1 meter from measurements taken per ISO 9614–2 @ 100 psi air pressure (6.89 bar, 0.68 MPa) and 20 cycles per minutes. Muffler 112933 can be ordered separately for reduced sound levels. |
72.9 dB(a)
|
| Sound Power Level, measured per ISO 9614–2 at 100 psi air pressure (6.89 bar, 0.68 MPa) and 20 cycles per minute. Muffler 112933 can be ordered separately for reduced sound levels. |
82.0 dB(a)
|
| Performance Curve |
See Chart in instruction manual 3A1334
|
| Approximate Weight |
35 lb drum – 5.1 kg, 120 lb drum – 6.8 kg, 400 lb drum – 7.7 kg
|
Data Sheet
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
