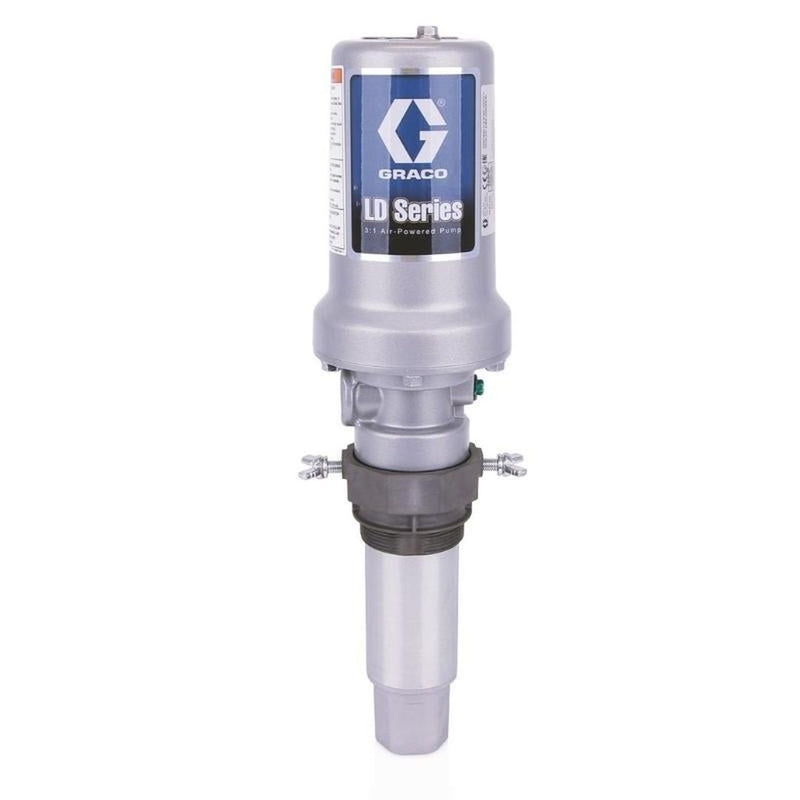

GRACO LD Series 3:1 Universal Oil Pump with Bung Adapter NPT
SKU: 24G576GRACO LD Series 3:1 Universal Oil Pump with Bung Adapter NPT
Other payment options
Pickup available at GO Industrial
Usually ready in 2-4 days
GRACO LD Series 3:1 Universal Oil Pump with Bung Adapter NPT
Features
Graco LD Series 3:1 Universal Oil Pump with Bung Adapter NPT
Overview
The LD Series Pumps offer amazing performance at an amazingly competitive price. These affordable and full-featured pumps are designed for low volume applications to provide long life and serviceability. LD™ has a powerful three inch air motor to deliver the fluids you need while the built-in thermal relief protects your equipment from thermal expansion.
Specifications
| TYPE | Pneumatic Piston Pump |
| AIR INLET SIZE (CM) | 0.635 |
| AIR INLET SIZE (IN) | 1/4 |
| AIR INLET SIZE (MM) | 6.35 |
| APPLICATION | Oil |
| COMPATIBLE MATERIAL | Oil |
| FLUID INLET SIZE (CM) | 2.54 |
| FLUID INLET SIZE (IN) | 1 |
| FLUID INLET SIZE (MM) | 25.4 |
| FLUID OUTLET SIZE (CM) | 1.27 |
| FLUID OUTLET SIZE (IN) | 1/2 |
| FLUID OUTLET SIZE (MM) | 12.7 |
| MAXIMUM AIR INLET PRESSURE (BAR) | 10.34 |
| MAXIMUM AIR INLET PRESSURE (KPA) | 1034 |
| MAXIMUM AIR INLET PRESSURE (PSI) | 150 |
| MAXIMUM WORKING PRESSURE (BAR) | 51.7 |
| MAXIMUM WORKING PRESSURE (KPA) | 5170 |
| MAXIMUM WORKING PRESSURE (PSI) | 750 |
| MODEL | LD |
| POWER TYPE | Pneumatic |
| PUMP RATIO | 3:1 |
| WEIGHT (LB) | 7 |
| WETTED MATERIAL | Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum |
| WEIGHT (KG) | 0.3178 |
| MAXIMUM WORKING PRESSURE (MPA) | 5.2 |
- Three Inch Air Motor: Provides more power to create better flow.
- Innovative Air Valve: Designed to reduce icing in continuous use applications and uses less air than competitive pumps for better efficiency. Easy to repair or replace without tearing down internal pump components for less downtime.
- Engineered for Durability: Patent-pending cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
- Modular Air Valve: Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
- Pilot Valve: Patent-pending, self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
- Adjustable Bung Adapter Included: Built-in slide adjustment with easy-set hand screws can fit into more applications.
- Built-In Thermal Relief and Inlet Strainer: Built-in thermal relief protects your equipment from thermal expansion without the need to buy and install an additional kit. Inlet strainer (oil only) is built-in to protect pump from containments that can damage your pump.
