GRACO LD Series 5:1 200 Liter Mobile Oil Pump Package Manual Meter Type

SKU: 24H916

GRACO LD Series 5:1 200 Liter Mobile Oil Pump Package Manual Meter Type

$3,443.00 AUD
$3,443.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.

Other payment options

View full details
GRACO LD Series 5:1 200 Liter Mobile Oil Pump Package Manual Meter Type - GO Industrial - 24H916

GRACO LD Series 5:1 200 Liter Mobile Oil Pump Package Manual Meter Type

$3,443.00 AUD
$3,443.00 AUD
Save $0
Sold out

Details

Compatible Material

  • Petroleum-Based Oil
  • Synthetic-Based Oil
  • Antifreeze

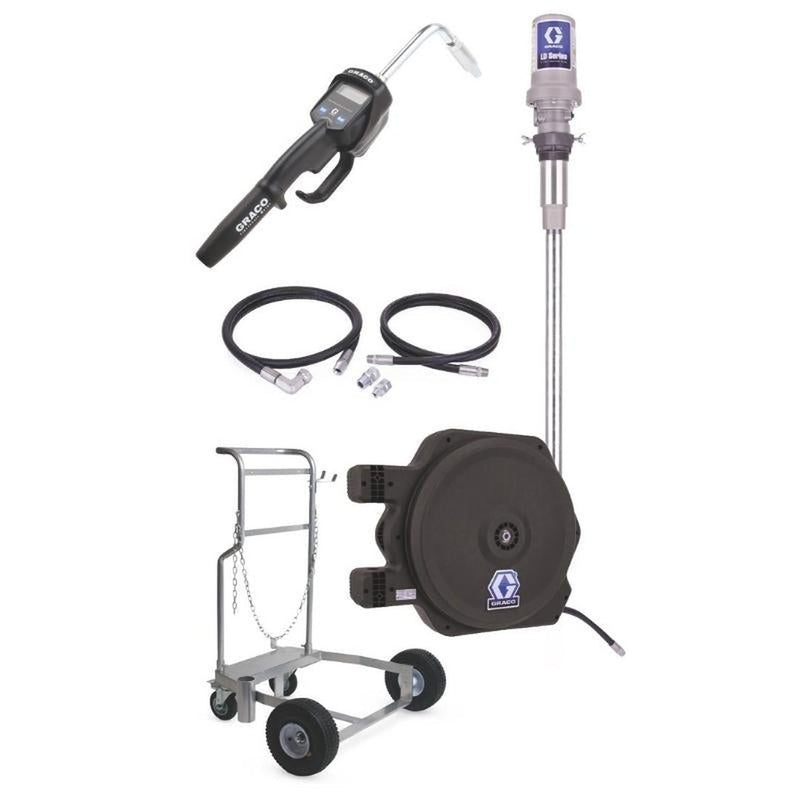

Main Items Included

  • LD Series 5:1 Universal Oil Pump with Bung Adapter - NPT
  • EM8 Electronic Manual Oil/Antifreeze Meter - Rigid Extension
  • LDX™ Series, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT
  • LD Series 50:1 Grease Pump Drum Cart with Pneumatic Wheels
  • Oil Hose 6ft NPT Non-EU

Features

  • Three Inch Air Motor: Provides more power to create better flow.
  • Engineered for Durability: Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
  • Modular Air Valve: Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
  • Pilot Valves: Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
  • Built-In Thermal Relief and Inlet Strainer: Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.

    • Graco LD Series 5:1 200 Liter Mobile Oil Pump Package Manual Meter Type

    Overview

    Stay ahead of the competition with LD Series pumps. These affordable and full-featured pumps are designed for lower-volume applications. LD pumps are fine-tuned for a compact, flexible and durable solution.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • Graco LD Oil or Grease System Packages Manual - GO Industrial
      • Graco LD Series 5-1 200 Liter Mobile Oil Pump Package - Manual Meter Type - Data Sheet

      Specifications

      APPLICATION Oil
      COMPATIBLE MATERIAL Oil
      FLUID INLET SIZE (CM) 2.54
      FLUID INLET SIZE (IN) 1
      FLUID INLET SIZE (MM) 25.4
      FLUID OUTLET SIZE (CM) 1.27
      FLUID OUTLET SIZE (IN) 1/2
      FLUID OUTLET SIZE (MM) 12.7
      MAXIMUM FLOW RATE (GPM) 6.7
      MAXIMUM WORKING PRESSURE (BAR) 52
      MAXIMUM WORKING PRESSURE (KPA) 5200
      MAXIMUM WORKING PRESSURE (PSI) 750
      NUMBER OF PIECES 6
      PUMP RATIO 5:1
      AIR INLET SIZE (IN) 0.25
      WETTED MATERIAL Zinc-Plated Carbon Steel, Aluminum, Nitrile, Polyurethane, Nickel-Plated Aluminum
      TYPE Piston Pump Package
      POWER TYPE Pneumatic
      MAXIMUM WORKING PRESSURE (MPA) 5.2
      MODEL LD

        Features

      • Three Inch Air Motor: Provides more power to create better flow.
      • Engineered for Durability: Patented cup and plate design eliminates the need for O-rings that wear out faster for a more durable, longer-lasting solution.
      • Modular Air Valve: Air inlet and exhaust locations are easy to configure with just four bolts for simple, hassle free installations.
      • Pilot Valves: Patented self-cleaning design increases reliability in dirty air environments and minimizes pressure drop with rapid changeovers for reduced stalling and smoother flow.
      • Built-In Thermal Relief and Inlet Strainer: Built-in thermal relief protects your equipment from thermal expansion, and an inlet strainer is built in to protect pump from contaminants.
