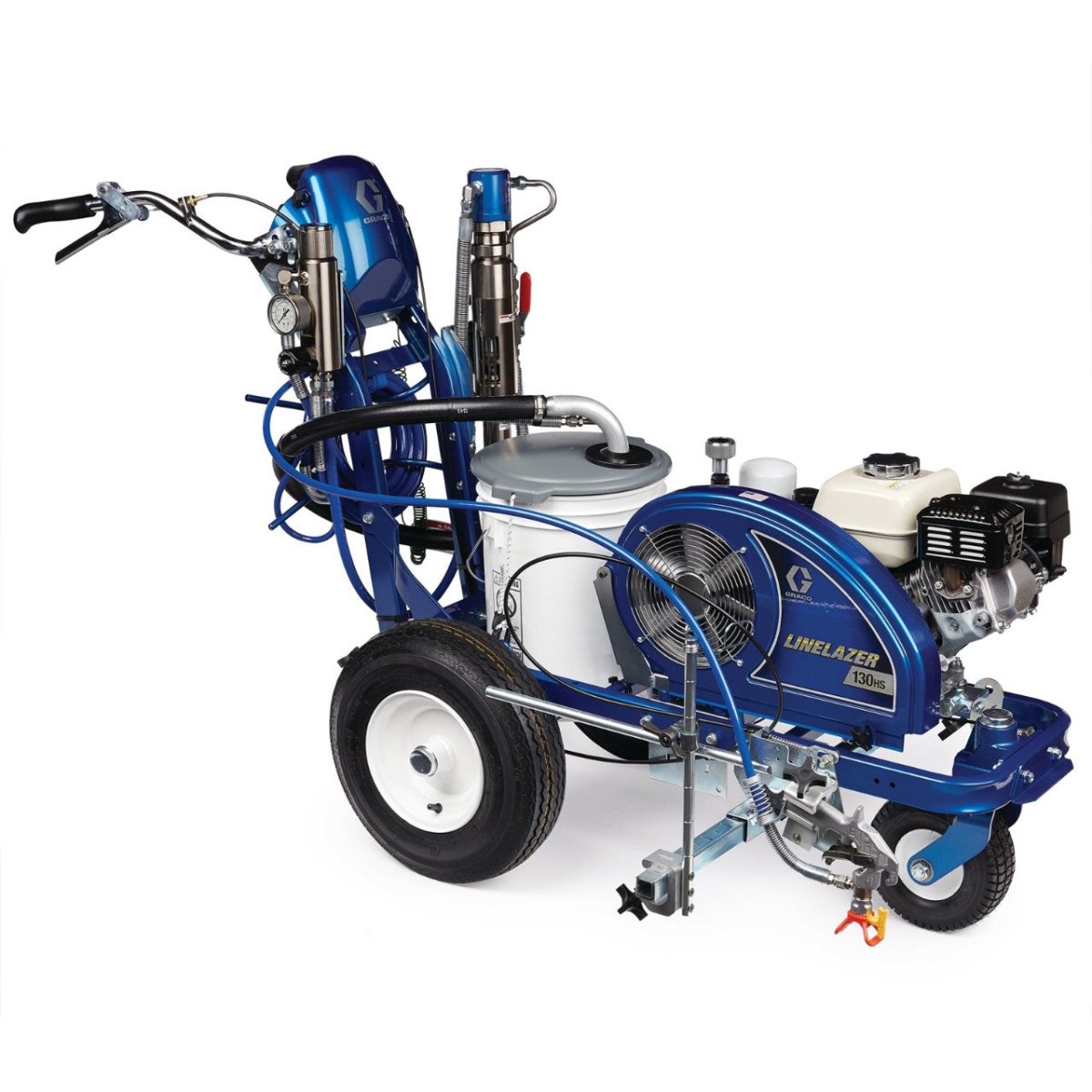

GRACO LineLazer 130HS Standard Series Airless Line Striper 1 Auto Gun
SKU: 17H447GRACO LineLazer 130HS Standard Series Airless Line Striper 1 Auto Gun
Other payment options
GRACO LineLazer 130HS Standard Series Airless Line Striper 1 Auto Gun
Features
EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
Quik Select Gun Selector
- Simple Gun Control
- Independently control of two guns with one lever — solid/skip
Dual Comfort Handlebar System
- Easy Handlebar Adjustment
Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
High-Efficiency Hydraulic Motor
- Uninterrupted Performance
- No-Stall design
High-Capacity Cooling System
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- No special hydraulic fluid needed
Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
Storage Compartment
- New compartment for tips, guards and miscellaneous items
Graco LineLazer 130HS Standard Series Airless Line Striper
Overview
The LineLazer 130HS is the preferred hydraulic airless striping unit that consistently delivers everyday striping performance with proven power, day in and day out.
Reliable and easy-to-start, it comes with industry-best Endurance Chromex Pump, a high-efficiency hydraulic motor, and high-capacity cooling system, giving only uninterrupted performance plus reduced downtimes.
This petrol powered hydraulic one or two gun linemarker is the ideal workhorse for all types of medium sized linemarking jobs suitable for medium to large carparks & shopping centres. The hydraulic driven fluid pump gives longer fluid pump life.
Comes complete with one or two quick release spray guns with tips suitable for striping – one with longer hose for stencil work, three wheel trolley with lock-in jockey wheel, EasyMark gun adjustment system, adjustable handle bar, storage compartment for small items.
Specifications
| COMPATIBLE SURFACES | Pavement, Turf |
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX120 |
| FUEL TANK CAPACITY (GAL) | 0.66 |
| FUEL TANK CAPACITY (L) | 2.50 |
| GUN ACTIVATION | Manual |
| INCLUDES | Tips, Guard, protector, Gun, Hose, Pump Filter, TSL |
| MAXIMUM FLOW RATE (GPM) | 1.30 |
| MAXIMUM FLOW RATE (L/MIN) | 4.90 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 96.00 |
| MAXIMUM TIP SIZE (CM) | 0.09 |
| MAXIMUM TIP SIZE (IN) | 0.04 |
| MAXIMUM TIP SIZE (MM) | 0.94 |
| MAXIMUM WORKING PRESSURE (BAR) | 227.00 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270.00 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300.00 |
| MODEL | LineLazer |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 1.00 |
| NUMBER OF HOPPERS | 1.00 |
| NUMBER OF PUMPS | 1.00 |
| OVERALL HEIGHT (CM) | 113.03 |
| OVERALL HEIGHT (IN) | 44.50 |
| OVERALL HEIGHT (MM) | 1130.30 |
| OVERALL LENGTH (CM) | 173.36 |
| OVERALL LENGTH (IN) | 68.25 |
| OVERALL LENGTH (MM) | 1733.55 |
| OVERALL WIDTH (CM) | 87.00 |
| OVERALL WIDTH (IN) | 34.25 |
| OVERALL WIDTH (MM) | 869.95 |
| POWER RATING (HP) | 4.00 |
| POWER RATING (KW) | 2.98 |
| PUMP TYPE | Endurance |
| SERIES | 130HS |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 119.00 |
| WEIGHT (LB) | 263.00 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas Hydraulic |
| PRODUCT SERIES | Standard |
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- Simple Gun Control
- Independently control of two guns with one lever — solid/skip
- Easy Handlebar Adjustment
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Uninterrupted Performance
- No-Stall design
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- No special hydraulic fluid needed
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
- New compartment for tips, guards and miscellaneous items
Features
EasyMark Gun Adjustment System
EZ Align Wheel System
Quik Select Gun Selector
Dual Comfort Handlebar System
Endurance Chromex Pump
Honda® GX Engine
High-Efficiency Hydraulic Motor
High-Capacity Cooling System
Easy Out Pump Filter
Storage Compartment
