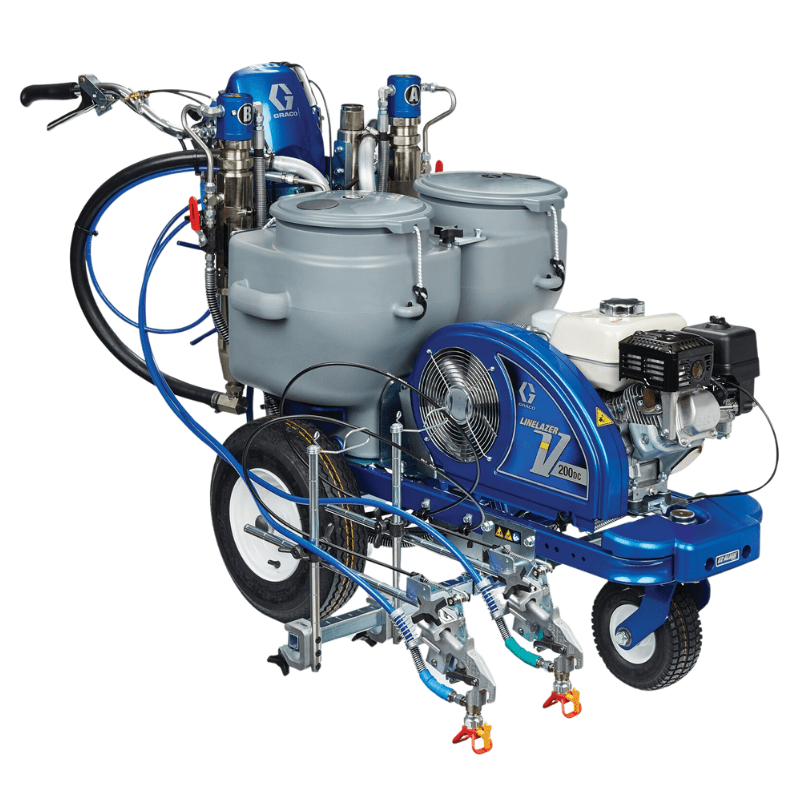

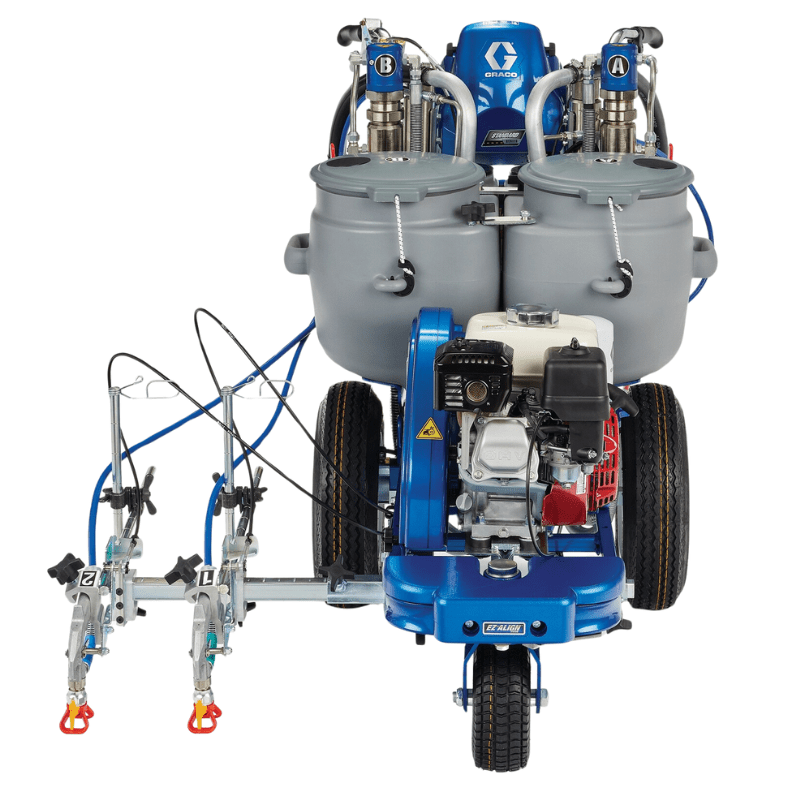

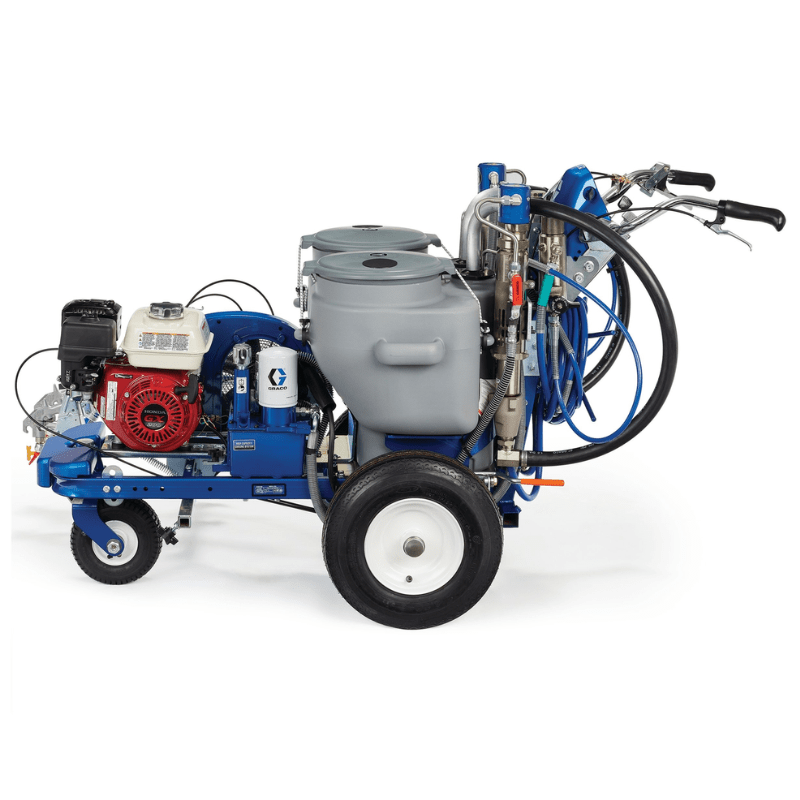

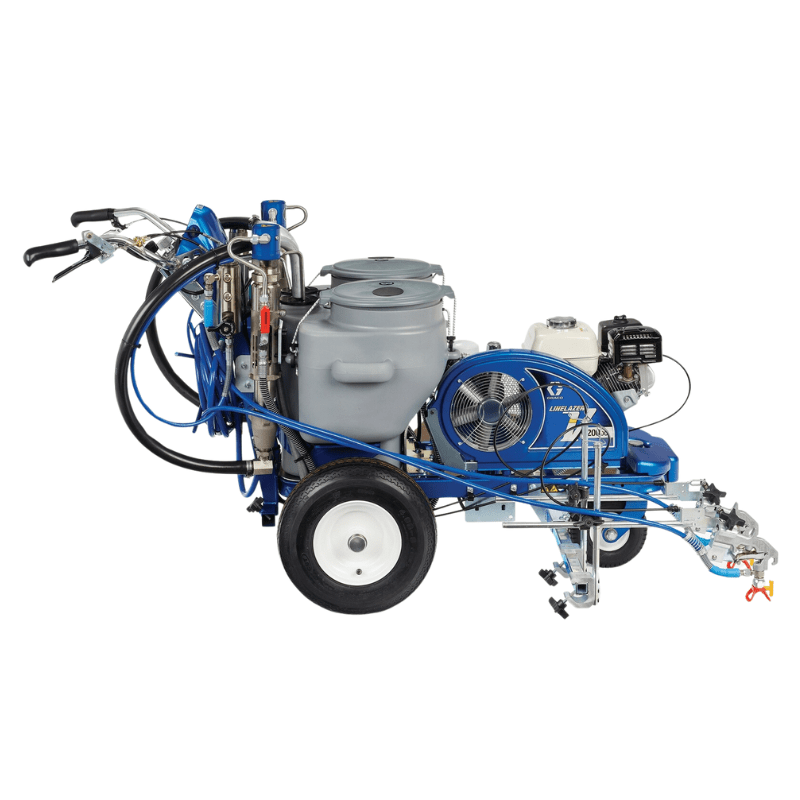

GRACO LineLazer V 200DC Standard Series Dual Colour Airless Line Striper
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The LineLazer V 200DC Standard Series provides a cost-effective dual color striping solution for smaller applications. Maximize productivity with systems that provide quick and easy adjustments, including the EasyMark Gun Adjustment System, EZ Align Wheel Adjustment System and more.
The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing larger re-striping jobs and considering jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.
Features
Features
Dual Color Capable
- Two Units in One
- No need for separate “yellow” and “white” machines
Large, Dual 10-Gallon Hopper
- Less refilling
Dual High-Efficiency Hydraulic Motors
- Uninterrupted Performance
- No-Stall design

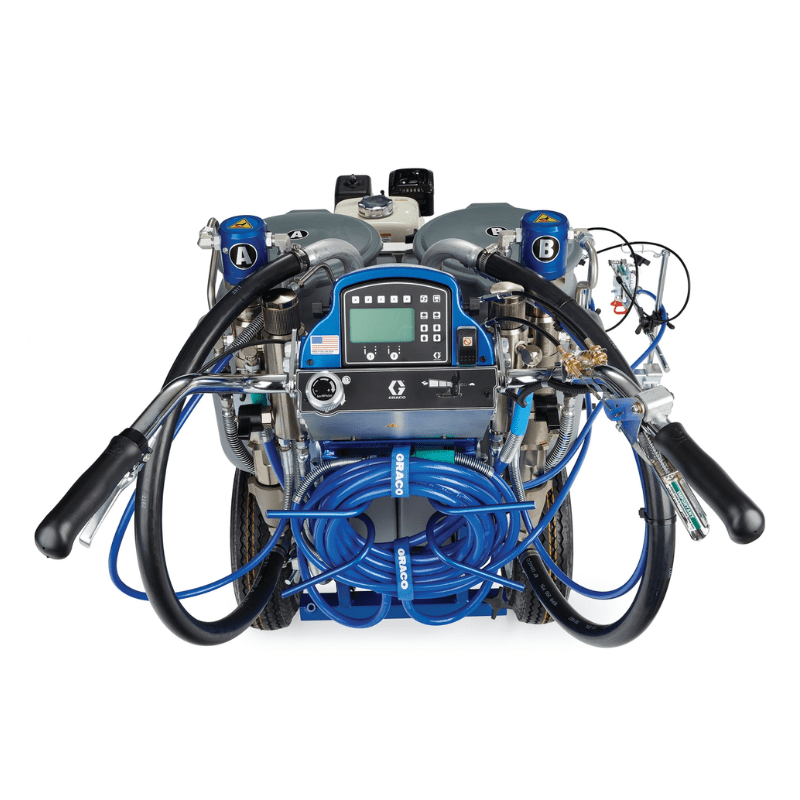

Live Look Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Easy Mark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
Dual Comfort Handle Bar System
- Easy Handlebar Adjustment
Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
Additional Features
- High-Capacity Cooling System
- QuikSelect Gun Selector
- Easy Out Pump Filter
Specifications
| COMPATIBLE SURFACES | Pavement, Turf |
|---|---|
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX200 |
| FUEL TANK CAPACITY (GAL) | 0.95 |
| FUEL TANK CAPACITY (L) | 3.6 |
| GUN ACTIVATION | 2 Manual |
| HOPPER VOLUME CAPACITY (GAL) | 10 |
| HOPPER VOLUME CAPACITY (L) | 38 |
| INCLUDES |
Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft BlueMax II Airless Hose (2), 3/8 in x 3 ft BlueMax II Airless Whip Hose (2), 4 oz TSL |
| MAXIMUM FLOW RATE (GPM) | 2.15 |
| MAXIMUM FLOW RATE (L/MIN) | 8.14 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 85.5 |
| MAXIMUM TIP SIZE (CM) | 0.0838 |
| MAXIMUM TIP SIZE (IN) | 0.033 |
| MAXIMUM TIP SIZE (MM) | 1.194 |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer V |
| NUMBER OF COLORS | Two Colors |
| NUMBER OF GUNS | 2 |
| NUMBER OF HOPPERS | 2 |
| NUMBER OF PUMPS | 2 |
| OVERALL HEIGHT (CM) | 113.03 |
| OVERALL HEIGHT (IN) | 44.5 |
| OVERALL HEIGHT (MM) | 1130.3000 |
| OVERALL LENGTH (CM) | 174.63 |
| OVERALL LENGTH (IN) | 68.75 |
| OVERALL LENGTH (MM) | 1746.25 |
| OVERALL WIDTH (CM) | 87 |
| OVERALL WIDTH (IN) | 34.25 |
| OVERALL WIDTH (MM) | 869.9500 |
| POWER RATING (HP) | 6.5 |
| POWER RATING (KW) | 4.85 |
| PUMP TYPE | Endurance |
| SERIES | 200DC |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 173 |
| WEIGHT (LB) | 381 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas Hydraulic |
| PRODUCT SERIES | Standard |
| ATTACHMENTS | None |
Warranty
Manuals
- GO Manual Operation Graco LineLazer V 200HS 200DC Airless Line Stripers Part1 3A3426EN-J
- GO Manual Parts Graco LineLazer V 200HS 200DC Airless Line Stripers 3A3390EN-H
- GO Manual Instuctions Graco Silver Plus Silver Plus HP and Flex Plus Airless Spray Guns 311254EN-P
- Graco Manual Instructions Displacement Pump 309277EN-ZAJ
- GO Manual Graco LineLazer Application Methods 3A3428EN-B
