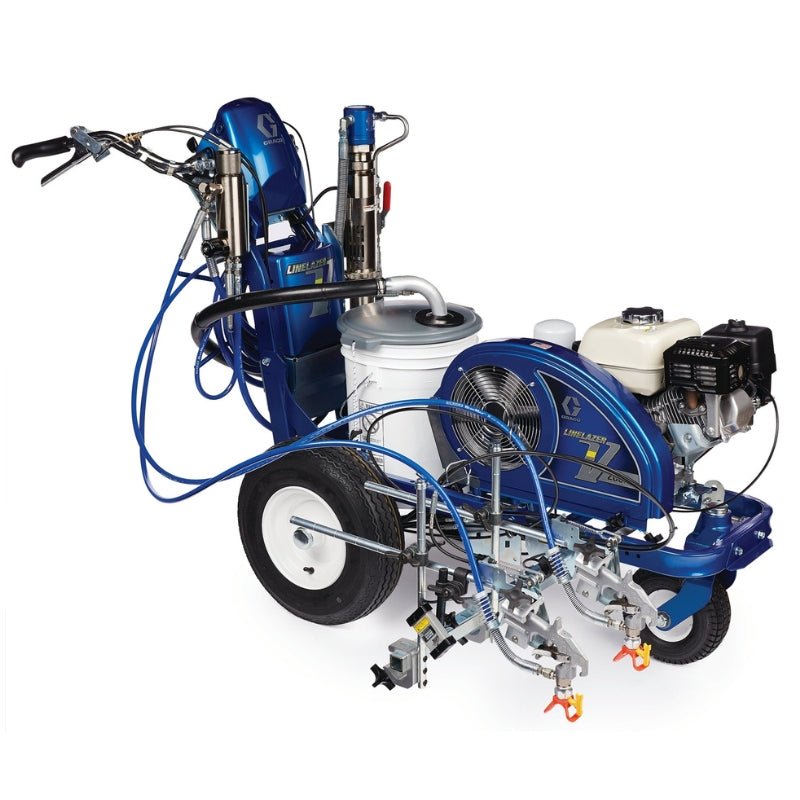

GRACO LineLazer V 200HS HP Automatic Series Airless Line Striper with Laser
SKU 17H463
$30,100.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
The LineLazer V 200HS Standard Series is a true workhorse designed for high performance striping on demanding jobs like large parking lots, airports, and city jobs that require precise lines.
The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
This petrol-powered hydraulic line marker with automatic gun operation is Graco’s highest output push machine. It is designed for large carpark jobs, city streets, some airport work. Large enough to be fitted with Graco’s pressurised bead system allowing more effective bead application. Also, the hydraulic driven fluid pump gives longer fluid pump life.
The Graco LineLazer V 200HS HP Automatic comes complete with quick release automatically operated spray guns with tips suitable for striping – one with longer hose for stencil work, three wheel trolley with lock-in jockey wheel, EasyMark gun adjustment system, adjustable handle bar, digital display with information storage. Also includes automatic gun control system with auto-layout, green laser guidance.
Features
Features
Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
Auto-Layout II
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
J-Log System with USB Download
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
Honda GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
DualComfort Handlebar System
- Easy Handlebar Adjustment
Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
Additional Features
- High-Efficiency Hydraulic Motor
- High-Capacity Cooling System
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Specifications
| BEAD SYSTEM | Optional |
|---|---|
| COMPATIBLE SURFACES | Pavement, Turf |
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX200 |
| FUEL TANK CAPACITY (GAL) | 0.95 |
| FUEL TANK CAPACITY (L) | 3.6 |
| GUN ACTIVATION | 1 Automatic & 1 Manual |
| INCLUDES | LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz |
| MAXIMUM FLOW RATE (GPM) | 2.15 |
| MAXIMUM FLOW RATE (L/MIN) | 8.14 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 86.5 |
| MAXIMUM TIP SIZE (CM) | 0.1194 |
| MAXIMUM TIP SIZE (IN) | 0.047 |
| MAXIMUM TIP SIZE (MM) | 1.194 |
| MAXIMUM WORKING PRESSURE (BAR) | 228 |
| MAXIMUM WORKING PRESSURE (KPA) | 22800 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer V |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 2 |
| NUMBER OF PUMPS | 1 |
| POWER RATING (HP) | 6.5 |
| POWER RATING (KW) | 4.85 |
| POWER RATING (W) | 4850 |
| PUMP TYPE | Endurance |
| SERIES | 200HS |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 146.1 |
| WEIGHT (LB) | 322 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas Hydraulic |
| PRODUCT SERIES | HP Automatic |
| ATTACHMENTS | LazerGuide 1700 |
Warranty
Manuals
- GO Manual Operation Graco LineLazer V 200HS 200DC Airless Line Stripers Part1 3A3426EN-J
- GO Manual Operation Graco LineLazer V 200HS 200DC Airless Line Stripers Part2 3A3426EN-J
- GO Manual Operation Graco LineLazer V 200HS 200DC Airless Line Stripers Part3 3A3426EN-J
- GO Manual Parts Graco LineLazer V 200HS 200DC Airless Line Stripers 3A3390EN-H
- GO Manual Graco LineLazer Application Methods 3A3428EN-B
- GO Manual Instuctions Graco Silver Plus Silver Plus HP and Flex Plus Airless Spray Guns 311254EN-P
