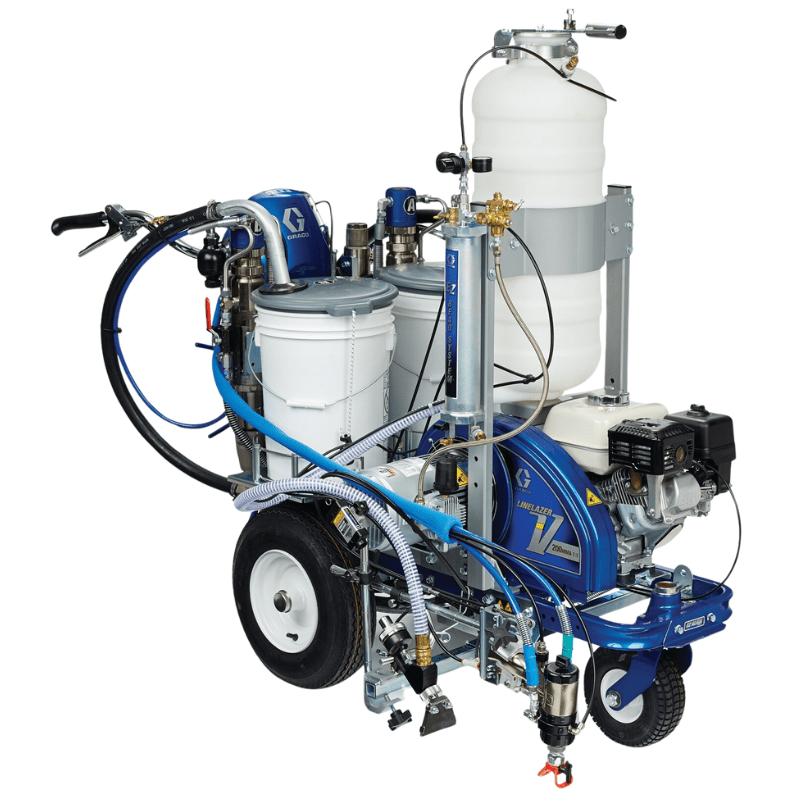

GRACO LineLazer V 200MMA 1:1 HP Auto Reflective Series Airless Line Striper
SKU 17Y234
$73,920.00
Tax included.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
- Spread the cost with LeaseGO. .
See This in Action
Dispatch options
GO stock or Melbourne supplier stock
Australia-wide delivery
Delivery to your job site
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
The Graco LineLazer 200 MMA 1:1 is a reliable walk-behind solution that delivers superior MMA 1:1 performance and guarantees ratio assurance in a compact and affordable package.
Features
Features
Ideal for Multiple MMA Applications
- High traffic areas
- Intersections
- Busy streets/highways
- Bike & pedestrian lanes
Precise MMA 1:1 Ratios
- Innovative flow divider guarantees equal material flow of each component
- Built-in bypass valve for independent pump operation
Lowest Operating Cost
- No need for expensive solvents
- No solvent pumps or tanks to maintain
- Eliminates solvent disposal concerns
Automatic Gun Control System
- Automatically stripe skip lines
- Push button control for accurate stripes every time - reducing operator fatigue
- Quality solenoid driven system
Live Look Display with SmartControl
- Access, measure and control all aspects of your job with real-time information
- Simple to use and easy to see in all conditions
- Consistent spraying pressure for perfect lines
- Accessible proof-of-job data over USB with the J-Log system
Graco Fusion Air-Purge Gun mixes materials "at-the-gun"
- Instant air purge after every time
- Clears all material in the mixing chamber and eliminates build-up of material at the tip
- Quick-release fluid housing lets you easily change the mixing chamber without tools
- RAC 5 SwitchTips for easy clearing of a tip clog
Specifications
| Fuel Tank Capacity (gal) | 0.95 |
|---|---|
| Fuel Tank Capacity (L) | 3.6 |
| Gun Activation | Manual, Automatic |
| Maximum Flow Rate (GPM) | 2.15 |
| Maximum Flow Rate (L/min) | 8.14 |
| Maximum Sound Pressure Level (dB(A)) | 85.5 |
| Maximum Tip Size (cm) | 0.0838 |
| Maximum Tip Size (in) | 0.033 |
| Maximum Tip Size (mm) | 0.8382 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (psi) | 3300 |
| Model | LineLazer V |
| Number of Colors | Two Colors |
| Number of Guns | 1 |
| Number of Hoppers | 2 |
| Number of Pumps | 2 |
| Overall Height (cm) | 113.03 |
| Overall Height (in) | 44.5 |
| Overall Height (mm) | 1130.3 |
| Overall Length (cm) | 174.63 |
| Overall Length (in) | 68.75 |
| Overall Length (mm) | 1746.25 |
| Overall Width (cm) | 87 |
| Overall Width (in) | 34.25 |
| Overall Width (mm) | 870 |
| Power Rating (HP) | 6.5 |
| Power Rating (kW) | 4.85 |
| Pump Type | Endurance |
| Series | 200MMA |
| Weight (kg) | 251 |
| Weight (lb) | 554 |
| Type | Walk-Behind Line Striper |
| Power Source | Gas Hydraulic |
| Bead Tank Size (lb) | 120 |
| Product Series | HP Reflective |
Warranty
Manuals
- GO Manual Operation Repair Parts Graco LineLazer V 200MMA 1-1 Airless Line Stripers Part1 3A9099EN-C
- GO Manual Operation Repair Parts Graco LineLazer V 200MMA 1-1 Airless Line Stripers Part2 3A9099EN-C
- Graco Manual Operation Single Acting and Double Acting Bead Spray Guns 308612EN-N
- Graco Manual Instructions Displacement Pump 309277EN-ZAJ
- Graco Manual Instruction Bead Gun Kit for LL250SPS and LL200HS Pressurized Bead System 332226EN-F
- Graco Manual Installation Complete Pressurized Bead System 332230EN-T
- GO Manual Graco LineLazer Application Methods 3A3428EN-B
