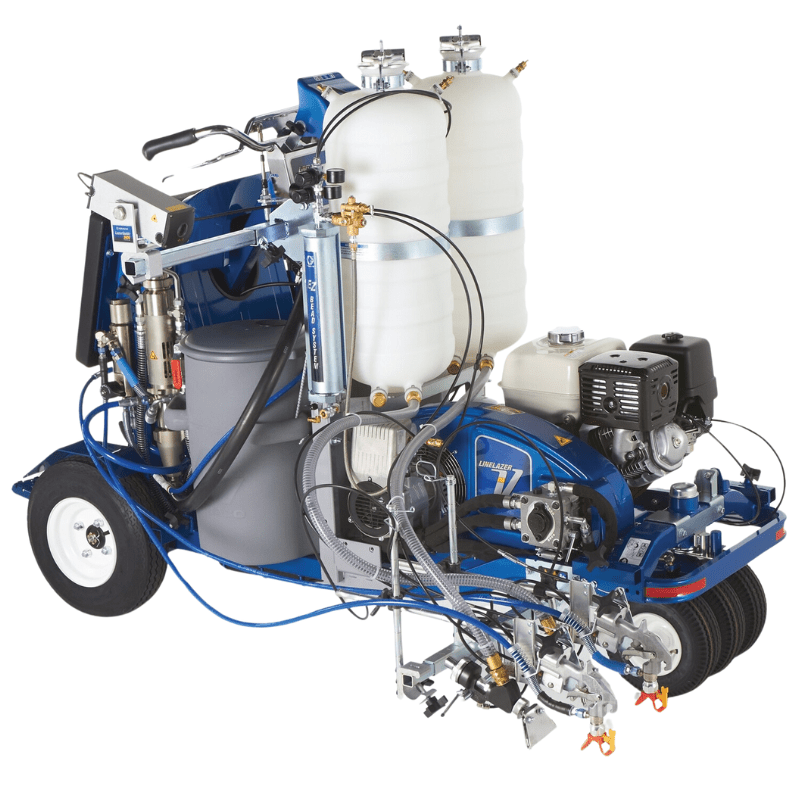

GRACO LineLazer V 250DC Reflective Series Dual Colour Airless Line Striper with LazerGuide 3000
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The LineLazer V 250DC HP Reflective Series provides high-production dual color striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes with reflective beads.
The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
Dual colour, heavy duty, compact, ride-on line marking machine with auto gun operation and dual tank pressurised bead system . This machine is ideally suited for airports, councils or any other organisation who needs to spray highlight lines or any dual colour striping. Each colour can be sprayed separately or both together. Can be fitted with lights for safety & registration and auto-retractable hose reel.
Comes complete with two separate paint pumps, quick release spray guns with tips suitable for striping, fold down stand-on platform, three wheel chassis with self-centering front wheel, EasyMark gun adjustment system, adjustable handle bar, digital display with information storage. Also includes automatic gun control system with auto-layout, remote mounted control box in easy to read position and dual tank pressurised bead system allowing more effective bead application.
Features
Features
Pressurized EZ Bead System
- Superior Bead Application Performance
- Ensures proper bead flow and paint penetration
- Dual bead tanks hold up to 120 lbs each
Dual High-Efficiency Hydraulic Motors
- Uninterrupted Performance
- No-Stall design
Dual Endurance Chromex Pumps
- Precise Material Flow
- Consistency with a wide range of striping materials
Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
Lazer Guide 3000 Long-Line Lazer
- Easier, laser-straight lines
- Longer distance accuracy
- Highly-visible laser guise
- Faster, simple operation
Remote Mount Control Box
- Striping Information At-A-Glance
- Simple to use and easy to see in all conditions
Dual 15-Gallon Paint Hoppers
- Less refilling
- Simultaneously spray two colors and refill less often
Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Electric Start
- Fast starting
Additional Features
- EasyMark Gun Adjustment System
- Front or Rear Gun Mount
- Self-Centering Front Wheel
- Easy Handlebar Adjustment
- High-Capacity Cooling System
- Easy Out Pump Filter
Specifications
| Fuel Tank Capacity (gal) | 0.95< |
|---|---|
| Fuel Tank Capacity (L) | 3.6< |
| Gun Activation | Manual, Automatic< |
| Maximum Flow Rate (GPM) | 2.15< |
| Maximum Flow Rate (L/min) | 8.14< |
| Maximum Sound Pressure Level (dB(A)) | 85.5< |
| Maximum Tip Size (cm) | 0.0838< |
| Maximum Tip Size (in) | 0.033< |
| Maximum Tip Size (mm) | 0.8382< |
| Maximum Working Pressure (bar) | 227< |
| Maximum Working Pressure (kPa) | 2270< |
| Maximum Working Pressure (psi) | 3300< |
| Model | LineLazer V< |
| Number of Colors | Two Colors< |
| Number of Guns | 1< |
| Number of Hoppers | 2< |
| Number of Pumps | 2< |
| Overall Height (cm) | 113.03< |
| Overall Height (in) | 44.5< |
| Overall Height (mm) | 1130.3< |
| Overall Length (cm) | 174.63< |
| Overall Length (in) | 68.75< |
| Overall Length (mm) | 1746.25< |
| Overall Width (cm) | 87< |
| Overall Width (in) | 34.25< |
| Overall Width (mm) | 870< |
| Power Rating (HP) | 6.5< |
| Power Rating (kW) | 4.85< |
| Pump Type | Endurance< |
| Series | 200MMA< |
| Weight (kg) | 251< |
| Weight (lb) | 554< |
| Type | Walk-Behind Line Striper< |
| Power Source | Gas Hydraulic< |
| Bead Tank Size (lb) | 120< |
| Product Series | HP Reflective< |
Warranty
Manuals
- GO Manual Operation Repair Parts Graco LineLazer V 200MMA 1-1 Airless Line Stripers Part1 3A9099EN-C
- GO Manual Operation Repair Parts Graco LineLazer V 200MMA 1-1 Airless Line Stripers Part2 3A9099EN-C
- Graco Manual Operation Single Acting and Double Acting Bead Spray Guns 308612EN-N
- Graco Manual Instructions Displacement Pump 309277EN-ZAJ
- Graco Manual Instruction Bead Gun Kit for LL250SPS and LL200HS Pressurized Bead System 332226EN-F
- Graco Manual Installation Complete Pressurized Bead System 332230EN-T
- GO Manual Graco LineLazer Application Methods 3A3428EN-B
