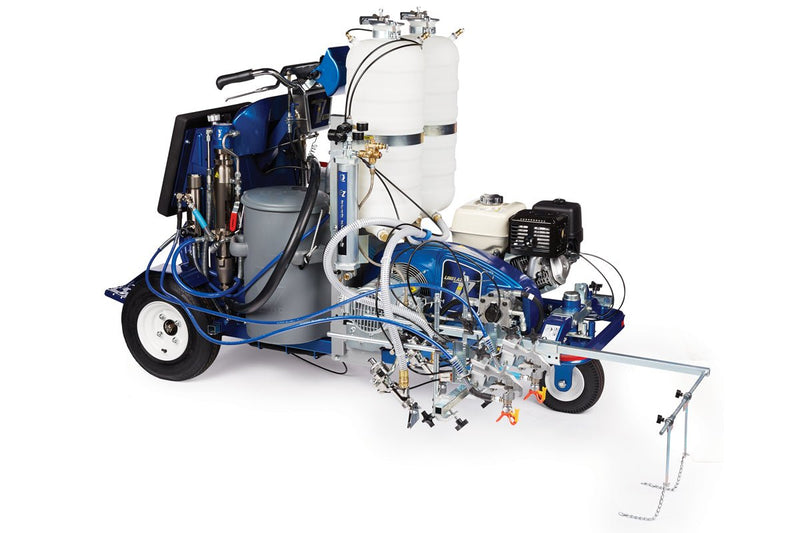

GRACO LineLazer V 250DC Reflective Series Dual Colour Airless Line Striper
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The LineLazer V 250DC HP Reflective Series provides high-production dual color striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes with reflective beads.
The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
Features
Features
Dual High-Efficiency Hydraulic Motors
- Uninterrupted Performance
- No-Stall design
Dual Endurance Chromex Pumps
- Precise Material Flow
- Consistency with a wide range of striping materials
Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
Remote Mount Control Box
- Striping Information At-A-Glance
- Simple to use and easy to see in all conditions
Dual 15-Gallon Paint Hoppers
- Less refilling
- Simultaneously spray two colors and refill less often
Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Electric Start
- Fast starting
EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
Front or Rear Gun Mount
- Straighter long lines
- Use up to six guns
Additional Features
- Self-Centering Front Wheel
- Easy Handlebar Adjustment
- High-Capacity Cooling System
- Easy Out Pump Filter
Specifications
| Compatible Surfaces | Pavement, Turf |
|---|---|
| Engine Brand | Honda |
| Engine Model | GX390 |
| Fuel Tank Capacity (gal) | 1.4 |
| Fuel Tank Capacity (L) | 5.3 |
| Gun Activation | 2 Automatic |
| Hopper Volume Capacity (gal) | 30 |
| Hopper Volume Capacity (L) | 114 |
| Includes |
Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose (2), 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose (2), 4 oz (118 ml) TSL |
| Maximum Flow Rate (GPM) | 2.5 |
| Maximum Flow Rate (L/min) | 9.5 |
| Maximum Operating Speed (km/h) | 16.1 |
| Maximum Operating Speed (mph) | 10 |
| Maximum Sound Pressure Level (dB(A)) | 89.1 |
| Maximum Speed (RPM) | 3600 |
| Maximum Tip Size (cm) | 0.0991 |
| Maximum Tip Size (in) | 0.039 |
| Maximum Tip Size (mm) | 0.9906 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (psi) | 3300 |
| Model | LineLazer V |
| Number of Colors | Two Colors |
| Number of Guns | 2 |
| Number of Hoppers | 2 |
| Number of Pumps | 2 |
| Overall Height (cm) | 141.5 |
| Overall Height (in) | 55.7 |
| Overall Height (mm) | 1414.8 |
| Overall Length (cm) | 186.7 |
| Overall Length (in) | 73.5 |
| Overall Length (mm) | 1866.9 |
| Overall Width (cm) | 83.8 |
| Overall Width (in) | 33 |
| Overall Width (mm) | 838 |
| Power Rating (HP) | 13 |
| Power Rating (kW) | 9.69 |
| Pump Type | Endurance |
| Series | 250DC |
| Compatible Material | Road-Marking Paint |
| Weight (kg) | 392 |
| Weight (lb) | 864 |
| Type | Self-Propelled Line Striper |
| Power Source | Gas Hydraulic |
| Bead Tank Size (lb) | 240 |
| Product Series | HP Reflective |
| Attachments | None |
Warranty
Manuals
- GO Manual Operation Graco LineLazer V 250SPS and 250DC Self-Propelled Line Striper 3A3393EN-D
- GO Manual Repair Parts Graco LineLazer V 250SPS and 250DC Self-Propelled Line Striper Part2 3A3394EN-K
- GO Manual Graco LineLazer Application Methods 3A3428EN-B
- Graco Manual Installation Complete Pressurized Bead System 332230EN-T
- GO Manual Instuctions Graco Silver Plus Silver Plus HP and Flex Plus Airless Spray Guns 311254EN-P
- Graco Manual Instructions Displacement Pump 309277EN-ZAJ
- Graco Manual Instruction Fuse Installation for LineLazer V 250SPS and 250DC 3A5189EN-A
- Graco Manual Operation Single Acting and Double Acting Bead Spray Guns 308612EN-N
- Graco Manual Instruction Bead Gun Kit for LL250SPS and LL200HS Pressurized Bead System 332226EN-F
- Graco Manual LineLazer IV 250DC Self-Propelled Lin Striper 334224EN-A
