GRACO LineLazer V 250MMA 98:2 HP Reflective Series Airless Line Striper - GO Industrial - 17G589
  • GRACO LineLazer V 250MMA 98:2 HP Reflective Series Airless Line Striper - GO Industrial - 17G589
1 1

GRACO LineLazer V 250MMA 98:2 HP Reflective Series Airless Line Striper

SKU: 17G589

GRACO LineLazer V 250MMA 98:2 HP Reflective Series Airless Line Striper

$136,600.00 AUD
$136,600.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

View full details
GRACO LineLazer V 250MMA 98:2 HP Reflective Series Airless Line Striper - GO Industrial - 17G589

GRACO LineLazer V 250MMA 98:2 HP Reflective Series Airless Line Striper

$136,600.00 AUD
$136,600.00 AUD
Save $0
Sold out

Features

Exclusive 98:2 Mixing System

  • On-board storage tanks for MMA, BPO and solvent
  • Exclusive hard-connect MMA and BPO pump design
  • Engineered fro superior ratio control, from 1.5% to 4.0%
  • Integrated mix hose for consistency in material mixing
  • Ratio assurance system and mix-manifold for outstanding performance

Automatic Gun Control System

  • Manual or automatic paint and bead guns with the push of a button

Graco Hydraulic Motor System

  • No-stall hydraulic motor for uninterrupted performance

BPO Stainless Steel Pump and Tank

  • Engineered for superior ratio control, from 1.5 to 4.0%
  • Polyethylene tank liners available for quick color change and easy clean up
  • 7 Liter capacity

Pressurized Bead System

  • Consistent pressurized delivery of beads

Honda® GX Engine

  • Industry proven performance with the most demanded engine by contractors

57 Liter Resin Feed Hopper

  • Extended striping time with large capacity hopper
  • Easy to service and clean

Endurance Piston Pump System

  • Long life pump provides precise flow for striping with MMA

Solvent Flush System

  • 2 gallon reservoir and air-operated double diaphragm pump provides pressurized flushing capability of manifold, hose assembly and gun

Additional Features

  • Rear Gun Mount System
  • Self-Centering Front Wheel
  • Mix Manifold

Graco LineLazer V 250MMA 98:2 HP Reflective Series Airless Line Striper

Overview

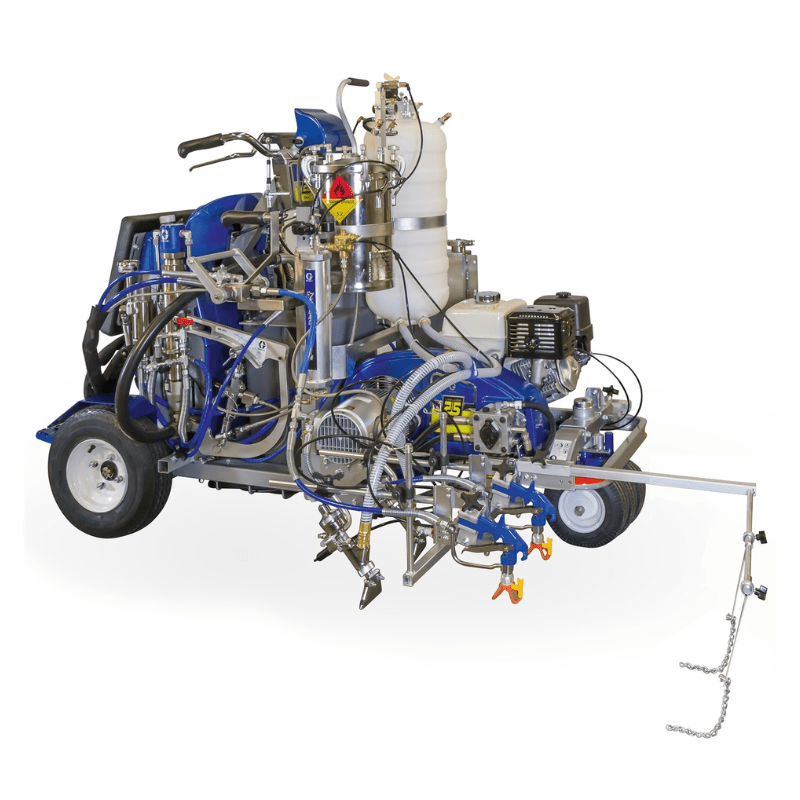

The Graco LineLazer V 250MMA 98:2 with 1 gun is a reliable solution that delivers superior MMA 98:2 performance and guarantees ratio assurance in a stand-on, self-propelled package. Unit shown with optional 2nd gun.



Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

Fuel Tank Capacity (gal) 1.4
Fuel Tank Capacity (L) 5.3
Gun Activation Automatic
Hopper Volume Capacity (gal) 15
Hopper Volume Capacity (L) 57
Maximum Flow Rate (GPM) 2.5
Maximum Flow Rate (L/min) 9.5
Maximum Sound Pressure Level (dB(A)) 89.1
Maximum Tip Size (cm) 0.1397
Maximum Tip Size (in) 0.055
Maximum Tip Size (mm) 1.3970
Maximum Working Pressure (bar) 207
Maximum Working Pressure (kPa) 2070
Maximum Working Pressure (psi) 3000
Model LineLazer V
Overall Height (cm) 141.5
Overall Height (in) 55.7
Overall Height (mm) 1414.8
Overall Length (cm) 186.7
Overall Length (in) 73.5
Overall Length (mm) 1866.9
Overall Width (cm) 83.8
Overall Width (in) 33
Overall Width (mm) 838
Power Rating (HP) 11.9
Power Rating (kW) 8.8
Pump Type Endurance
Series 200MMA
Weight (kg) 405
Weight (lb) 893
Type Walk-Behind Line Striper
Power Source Gas Hydraulic
Bead Tank Size (lb) 120
Product Series HP Reflective

    Features

    Exclusive 98:2 Mixing System

    • On-board storage tanks for MMA, BPO and solvent
    • Exclusive hard-connect MMA and BPO pump design
    • Engineered fro superior ratio control, from 1.5% to 4.0%
    • Integrated mix hose for consistency in material mixing
    • Ratio assurance system and mix-manifold for outstanding performance

    Automatic Gun Control System

    • Manual or automatic paint and bead guns with the push of a button

    Graco Hydraulic Motor System

    • No-stall hydraulic motor for uninterrupted performance

    BPO Stainless Steel Pump and Tank

    • Engineered for superior ratio control, from 1.5 to 4.0%
    • Polyethylene tank liners available for quick color change and easy clean up
    • 7 Liter capacity

    Pressurized Bead System

    • Consistent pressurized delivery of beads

    Honda® GX Engine

    • Industry proven performance with the most demanded engine by contractors

    57 Liter Resin Feed Hopper

    • Extended striping time with large capacity hopper
    • Easy to service and clean

    Endurance Piston Pump System

    • Long life pump provides precise flow for striping with MMA

    Solvent Flush System

    • 2 gallon reservoir and air-operated double diaphragm pump provides pressurized flushing capability of manifold, hose assembly and gun

    Additional Features

    • Rear Gun Mount System
    • Self-Centering Front Wheel
    • Mix Manifold
