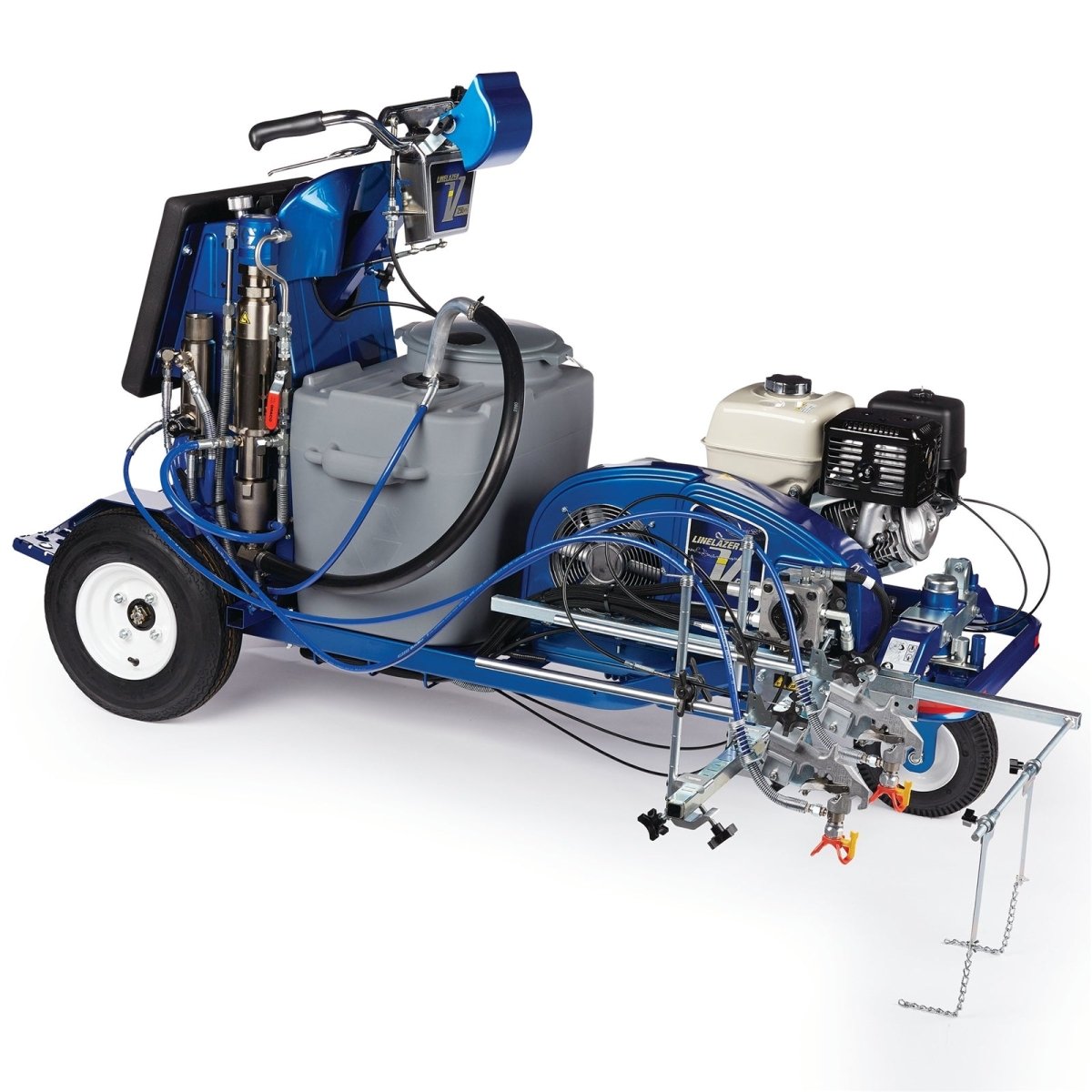

GRACO LineLazer V 250SPS HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper
SKU: 17H466GRACO LineLazer V 250SPS HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper
Found a better deal elsewhere?
Message us to price match.
Price Match Request
Other payment options
Translation missing: en.products.variant.pickup_availability.unavailable
Delivery & Shipping
GRACO LineLazer V 250SPS HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper
Features
Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
Remote Mount Control Box
- Striping Information At-A-Glance
- Simple to use and easy to see in all conditions
25-Gallon Paint Hopper
- Less Refilling
- Extended striping time with large capacity hopper
Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Electric Start
- Fast starting
Easy Mark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
Front or Rear Gun Mount
- Straighter long lines
- Use up to six guns
Self-Centering Front Wheel
- Simple operation
- Foam-filled, three-wheel design for stability
Easy Handlebar Adjustment
Additional Features
- Endurance Chromex Pump
- High-Efficiency Hydraulic Motor
- High-Capacity Cooling System
- Easy Out Pump Filter
- Flex Plus Gun
Graco LineLazer V 250SPS HP Automatic Series Airless Line Striper
Overview
With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Automatic Series is a self-propelled system that is ideal for large, heavy-duty line striping jobs including parking lots and road jobs.
The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
Heavy duty, compact, ride-on linemarking machine with auto gun operation. This machine is ideal for large, heavy duty linemarking jobs including large carparks & medium sized street & road work. Can be fitted with lights for safety & registration and auto-retractable hose reel.
The Graco LineLazer V 250SPS HP Automatic comes complete with quick release spray guns with tips suitable for striping – one with longer hose for stencil work, fold down stand-on platform, three wheel chassis with self-centering front wheel, EasyMark gun adjustment system, adjustable handle bar, digital display with information storage. Also includes automatic gun control system with auto-layout, remote mounted control box in easy to read position.
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- Striping Information At-A-Glance
- Simple to use and easy to see in all conditions
- Less Refilling
- Extended striping time with large capacity hopper
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Fast starting
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- Straighter long lines
- Use up to six guns
- Simple operation
- Foam-filled, three-wheel design for stability
- Endurance Chromex Pump
- High-Efficiency Hydraulic Motor
- High-Capacity Cooling System
- Easy Out Pump Filter
- Flex Plus Gun
Specifications
| Compatible Surfaces | Pavement, Turf |
|---|---|
| Engine Brand | Honda |
| Engine Model | GX390 |
| Fuel Tank Capacity (gal) | 1.4 |
| Fuel Tank Capacity (L) | 5.3 |
| Gun Activation | 1 Automatic |
| Hopper Volume Capacity (gal) | 25 |
| Hopper Volume Capacity (L) | 95 |
| Includes |
Gun, Hose, SwitchTip, Easy Out Filter |
| Maximum Flow Rate (GPM) | 2.5 |
| Maximum Flow Rate (L/min) | 9.5 |
| Maximum Operating Speed (km/h) | 16.1 |
| Maximum Operating Speed (mph) | 10 |
| Maximum Sound Pressure Level (dB(A)) | 89.1 |
| Maximum Speed (RPM) | 3600 |
| Maximum Tip Size (cm) | 0.1397 |
| Maximum Tip Size (in) | 0.055 |
| Maximum Tip Size (mm) | 1.3970 |
| Maximum Working Pressure (bar) | 227 |
| Maximum Working Pressure (kPa) | 2270 |
| Maximum Working Pressure (psi) | 3300 |
| Model | LineLazer V |
| Number of Colors | One Color |
| Number of Guns | 1 |
| Number of Hoppers | 1 |
| Number of Pumps | 1 |
| Overall Height (cm) | 128.3 |
| Overall Height (in) | 50.5 |
| Overall Height (mm) | 1282.7 |
| Overall Length (cm) | 186.7 |
| Overall Length (in) | 73.5 |
| Overall Length (mm) | 1866.9 |
| Overall Width (cm) | 83.8 |
| Overall Width (in) | 33 |
| Overall Width (mm) | 838 |
| Power Rating (HP) | 13 |
| Power Rating (kW) | 9.69 |
| Pump Type | Endurance |
| Series | 250SPS |
| Compatible Material | Road-Marking Paint |
| Weight (kg) | 302 |
| Weight (lb) | 666 |
| Type | Self-Propelled Line Striper |
| Power Source | Gas Hydraulic |
| Product Series | HP Automatic |
| Attachments | None |
Features
Automatic Paint Gun System
Remote Mount Control Box
25-Gallon Paint Hopper
Honda® GX Engine
Electric Start
Easy Mark Gun Adjustment System
Front or Rear Gun Mount
Self-Centering Front Wheel
Easy Handlebar Adjustment
Additional Features
