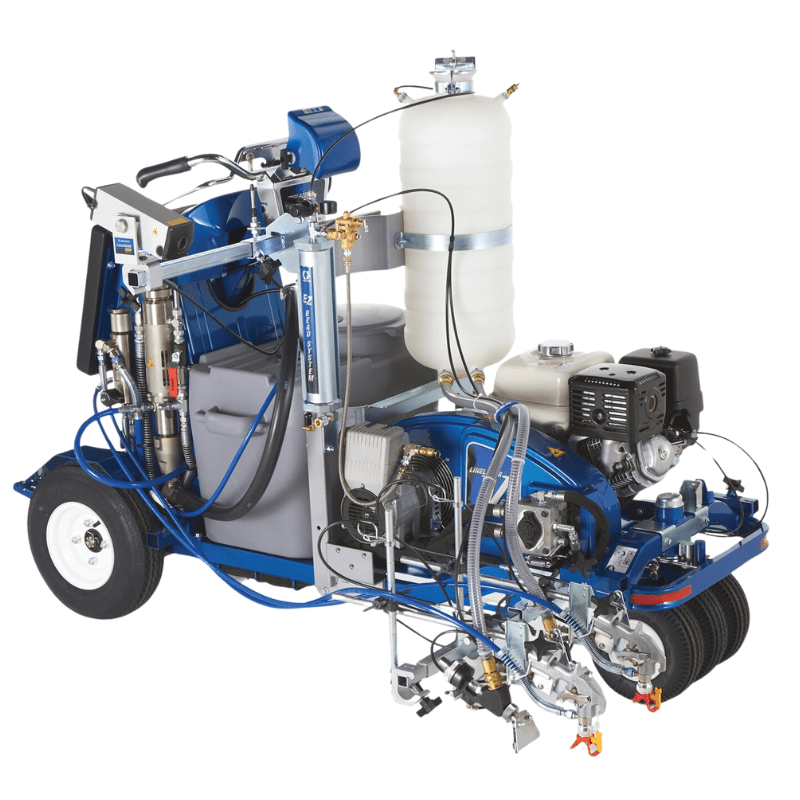

GRACO LineLazer V 250SPS HP Reflective Series Airless Line Striper with LazerGuide 3000
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Reflective Series is a self-propelled system with reflective bead capability designed for large, heavy-duty line striping jobs including parking lots and road jobs.
The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
The Graco LineLazer V 250SPS HP Reflective is the ideal line marking machine if you have large contracts and stripe major roads and highways, airports and the like. With this Graco LineLazer model you have the chose for rear stand-on self propelling or to use the back flip-up platform if you wish to use the walk-behind option. The LineLazer V 250SPS HP Reflective provides improved visibility meaning sharper, straighter lines.
This model is powered by a 13 hp Honda engine for heavy duty work and also comes with an electric start feature. It also has a self-centering front wheel system provides greater stability and easier operation. The guns are mounted on the rear which is best for long line jobs such as airports and motorways. The inclusion of a 12 volt battery means you have power for all your accessories.
The LineLazer V 250 SPS HP Reflective has all the other features of the V 250 SPS HP Automatic but with the addition of the EZ Bead Pressurised System with two bead tanks that hold up to 115kg (250 lb) in each tank. The EZ Bead Pressurised System provides accurate bead embedment and includes air valves to dial in for starts and stops.
Features
Features
Pressurized EZ Bead System
- Superior Bead Application Performance
- Ensures proper bead flow and paint penetration
- Dual bead tanks hold up to 120 lbs each
Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
Lazer Guide 3000 Long-Line Lazer
- Easier, laser-straight lines
- Longer distance accuracy
- Highly-visible laser guise
- Faster, simple operation
Remote Mount Control Box
- Striping Information At-A-Glance
- Simple to use and easy to see in all conditions
25-Gallon Paint Hopper
- Less Refilling
- Extended striping time with large capacity hopper
Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Electric Start
- Fast starting
Easy Mark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
Front or Rear Gun Mount
- Straighter long lines
- Use up to six guns
Additional Features
- Self-Centering Front Wheel
- Easy Handlebar Adjustment
- Endurance Chromex Pump
- High-Efficiency Hydraulic Motor
- High-Capacity Cooling System
- Easy Out Pump Filter
Specifications
| BEAD SYSTEM | Pressurized Bead System |
|---|---|
| COMPATIBLE SURFACES | Pavement, Turf |
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX390 |
| FEATURES | SmartControl |
| FUEL TANK CAPACITY (GAL) | 1.4 |
| FUEL TANK CAPACITY (L) | 5.3 |
| GUN ACTIVATION | 2 Automatic |
| HOPPER VOLUME CAPACITY (GAL) | 25 |
| HOPPER VOLUME CAPACITY (L) | 95 |
| INCLUDES |
LazerGuide 3000, Pressurized Bead System (1 Tank), Flex Plus Gun (2), LineLazer RAC 5 321 Spray Tip (2), LineLazer RAC 5 425 Spray Tip (2), LineLazer RAC 5 627 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose, 3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose, TSL 4 oz (118 mL) |
| MAXIMUM FLOW RATE (GPM) | 2.5 |
| MAXIMUM FLOW RATE (L/MIN) | 9.46 |
| MAXIMUM TIP SIZE (CM) | 0.1397 |
| MAXIMUM TIP SIZE (IN) | 0.055 |
| MAXIMUM TIP SIZE (MM) | 1.397 |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer V |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 2 |
| NUMBER OF HOPPERS | 1 |
| NUMBER OF PUMPS | 1 |
| POWER RATING (HP) | 13 |
| POWER RATING (KW) | 9.69 |
| POWER RATING (W) | 9690 |
| PUMP TYPE | Endurance |
| SERIES | 250SPS |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 352 |
| WEIGHT (LB) | 778 |
| TYPE | Self-Propelled Line Striper |
| POWER SOURCE | Gas Hydraulic |
| BEAD TANK SIZE (LB) | 120 |
| PRODUCT SERIES | HP Reflective |
| ATTACHMENTS | LazerGuide 3000 |
Warranty
Manuals
- GO Manual Operation Graco LineLazer V 250SPS and 250DC Self-Propelled Line Striper 3A3393EN-D
- GO Manual Repair Parts Graco LineLazer V 250SPS and 250DC Self-Propelled Line Striper Part1 3A3394EN-K
- GO Manual Repair Parts Graco LineLazer V 250SPS and 250DC Self-Propelled Line Striper Part2 3A3394EN-K
- GO Manual Graco LineLazer Application Methods 3A3428EN-B
- GO Manual Instructions Graco LazerGuide 1700 2000 and 3000 Kits 3A5294EN-E
- Graco Manual Installation Complete Pressurized Bead System 332230EN-T
- GO Manual Instuctions Graco Silver Plus Silver Plus HP and Flex Plus Airless Spray Guns 311254EN-P
- Graco Manual Instructions Displacement Pump 309277EN-ZAJ
- Graco Manual Operation Single Acting and Double Acting Bead Spray Guns 308612EN-N
- Graco Manual Instruction Bead Gun Kit for LL250SPS and LL200HS Pressurized Bead System 332226EN-F
- Graco Manual Instruction Fuse Installation for LineLazer V 250SPS and 250DC 3A5189EN-A
