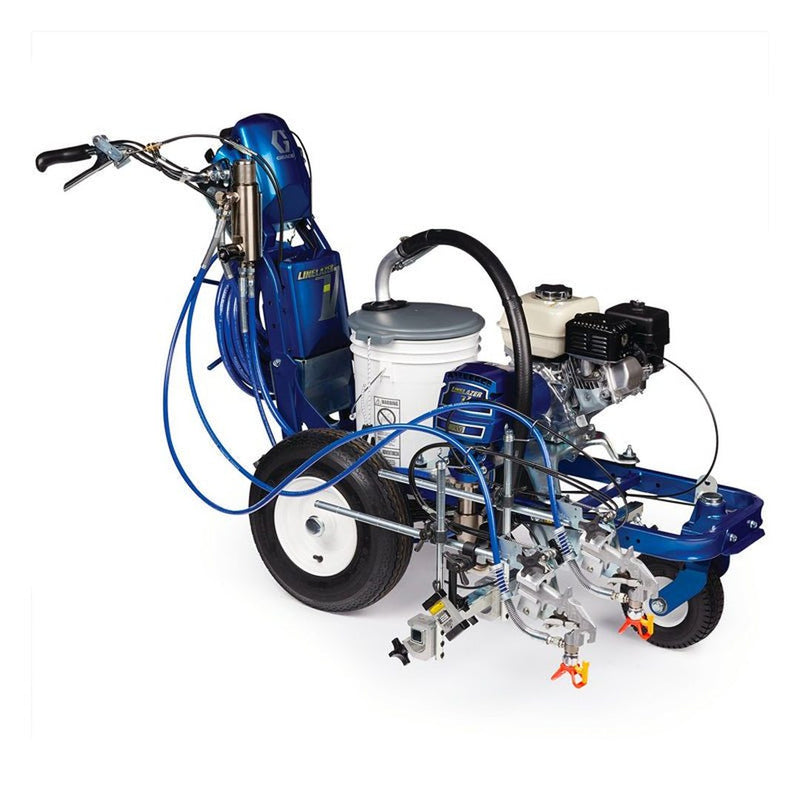

GRACO LineLazer V 3900 HP Automatic Series Airless Line Striper with Laser

SKU: 17H451

GRACO LineLazer V 3900 HP Automatic Series Airless Line Striper with Laser

$22,440.00 AUD
$22,440.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Configuration

Other payment options

View full details
GRACO LineLazer V 3900 HP Automatic Series Airless Line Striper with Laser - GO Industrial - 17H451

GRACO LineLazer V 3900 HP Automatic Series Airless Line Striper with Laser

From $22,440.00 AUD
$22,440.00
Sold out

Features

Automatic Paint Gun System

  • Automatically Stripe Skip-Lines
  • Reduce operator fatigue — push button line production
  • Quality solenoid driven system

Auto-Layout II

  • Simplify Parking Lot Layout
  • SmartControl measures while you walk and puts down pre-marks
  • No need for measuring tape, string lines or aerosol cans
  • Cuts your layout time in half

LiveLook Display with SmartControl

  • Striping Information At-A-Glance
  • Track, measure and control every aspect of your job
  • Accessible proof-of-job data from the J-Log System with USB Download
  • Consistent spraying pressure for perfect lines

J-Log System with USB Download

  • Valuable Job Information
  • Proof of job = More striping opportunities.
  • USB download capability allows you to capture and save all job data

Honda GX Engine

  • Reliable, Easy-to-Start Power
  • Contractor-preferred — excellent power and proven reliability
  • Oil Alert shuts down engine to prevent damage if oil level drops too low

EasyMark Gun Adjustment System

  • Easy Gun Adjustments
  • Perfect gun alignment every time with easy-to-use guide mark system
  • 2-gun capability with QuikSelect gun selector

EZ Align Wheel System

  • Perfect Striper Tracking
  • Simple front wheel alignment, no special tools needed

Dual Comfort Handlebar System

  • Easy Handlebar Adjustment

Endurance Chromex Pump

  • Reliable, Long-Life Pump
  • Industry-best pump performance — field-proven design
  • Handle the most demanding materials with long-life rod treatment
  • 4X harder than ordinary chrome

Additional Features

  • QuikSelect Gun Selector
  • Easy Out Pump Filter
  • LazerGuide 1700 Start/Stop Laser

Accessories

  • 25A490: Solenoid Kit. Includes 1 solenoid, cable. Will convert existing manual gun to fully automatic. Must have HP Series unit
  • 25A530: LazerGuide 1700 Laser Kit. Kit includes laser, laser mount, and all hardware (battery and charger not included)
  • 25A526: Battery and charger kit for laser when used with LineLazer V Standard stripers
  • 17T540: LazerGuide 2000 Laser with LazerGuide Target Box and mounting hardware for all LineLazer V 3900, 5900, and 200HS/DC HP Automatic/Reflective
  • 17T541: LazerGuide 2000 Laser with LazerGuide Target Box and mounting hardware for all LineLazer V 3900, 5900, and 200HS/DC Standard (battery included)
  • 17T544: LazerGuide 2000 Laser with LazerGuide Target Box and mounting hardware for LineLazer 130HS
  • 17T536: LazerGuide Target Box
  • 17V405: LazerGuide 3000 Kit includes laser and all mounting hardware for LineLazer 5900, 200HS/DC HP Automatic/Reflective
  • 249082: Rear Turf Tire Kit. Includes 2 rear tires for use on turf fields
  • 25A620: 40 inch Retractable Pointer Kit. Kit Includes pointer and all necessary hardware to mount on all LineLazer V 3900, 5900, 130HS, 200HS/DC, and LineLazer ES 1000/2000 units only
  • 25N787: Hitch Kit. Kit includes hitch, ball, and hardware to connect to LineDriver
  • 116913: Hitch Ball - includes lock washer and nut
  • 245343: LineDriver Battery Kit. Includes battery and mounting brackets
  • 17R473: High-output light for LineLazer V 3900, 5900, and 200HS/DC (battery and charger not included)
  • 241104: Spend less time refilling and more time striping. 15-Gallon for LineLazer 3900, 5900, 130HS, and 200HS
  • 25N622: Dual 10-Gallon Hoppers for LineLazer V 200DC
  • 25N603: Dual 5-Gallon Bucket kit for LineLazer V 200DC
  • 25N653: Front weight kit for LineLazer V 3900, 5900, 130HS, and 200HS/DC
  • 17Z688: 3-Wheel Kit for LineLazer V 3900, 5900, 130HS, and 200HS/DC
  • 248157: Flex Plus Airless Spray Gun - Includes RAC 5 Tip and Guard

Graco LineLazer V 3900 HP Automatic Series Airless Line Striper with Laser

Overview

For those advanced striping jobs that require layout work or skip lines, the LineLazer V 3900 HP Automatic Series line striper includes additional features to help you work smarter, finish jobs faster and increase your profitability.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • GO Data Sheet Graco LineLazer V 3900 344385EN-K
  • GO Manual Operation Graco LineLazer V3900 5900 Line Stripers 3A3388EN-H
  • GO Manual Graco LineLazer Application Methods 3A3428EN-B
  • Graco Displacement Pump Service Manual 310643EN-W
  • GO Parts Manual Graco LineLazer V 3900 5900 3A3389EN-K
  • GO Manual Instuctions Graco Silver Plus Silver Plus HP and Flex Plus Airless Spray Guns 311254EN-P
  • GO Catalogue Graco LineLazer Professional Airless Line Striping Systems 344385EN-M

Specifications

BEAD SYSTEM Optional
COMPATIBLE SURFACES Pavement, Turf
ENGINE BRAND Honda
ENGINE MODEL GX120
FEATURES Auto-Layout II, Automatic Gun, J-Log Data Loggin System, On-Board Power
FUEL TANK CAPACITY (GAL) 0.66
FUEL TANK CAPACITY (L) 2.5
GUN ACTIVATION 1 Automatic & 1 Manual
INCLUDES LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL 4 oz
MAXIMUM FLOW RATE (GPM) 1.25
MAXIMUM FLOW RATE (L/MIN) 4.73
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 86.5
MAXIMUM TIP SIZE (CM) 0.0635
MAXIMUM TIP SIZE (IN) 0.025
MAXIMUM TIP SIZE (MM) 0.635
MAXIMUM WORKING PRESSURE (BAR) 228
MAXIMUM WORKING PRESSURE (KPA) 22800
MAXIMUM WORKING PRESSURE (PSI) 3300
MODEL LineLazer V
NUMBER OF COLORS One Color
NUMBER OF GUNS 2
NUMBER OF PUMPS 1
OVERALL HEIGHT (CM) 113.03
OVERALL HEIGHT (IN) 44.5
OVERALL HEIGHT (MM) 1130.3
OVERALL LENGTH (CM) 174.63
OVERALL LENGTH (IN) 68.75
OVERALL LENGTH (MM) 1746.3
OVERALL WIDTH (CM) 86.99
OVERALL WIDTH (IN) 34.25
OVERALL WIDTH (MM) 869.9
POWER RATING (HP) 4
POWER RATING (KW) 2.98
POWER RATING (W) 2980
PUMP TYPE Endurance
SERIES 3900
COMPATIBLE MATERIAL Road-Marking Paint
WEIGHT (KG) 108.9
WEIGHT (LB) 240
TYPE Walk-Behind Line Striper
POWER SOURCE Gas
PRODUCT SERIES HP Automatic
ATTACHMENTS LazerGuide 1700
