The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

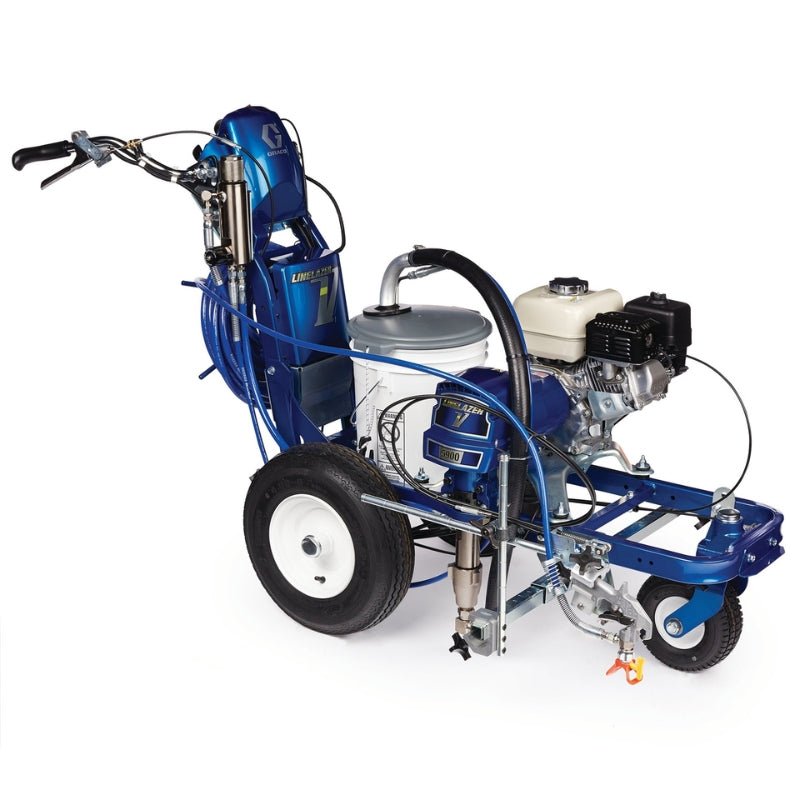

GRACO LineLazer V 5900 HP Automatic Series Gas Airless Line Striper
SKU 17K580
$27,000.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Frequently bought together
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Product details
Built for the work it does.
When it’s time for 1 or 2-gun airless line striping performance with extra power, the LineLazer V 5900 HP Automatic Series striper is an excellent choice. These durable striping machines deliver higher performance and consistent lines for all your basic striping needs.
Features
Features
Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
Auto-Layout II
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
Live Look Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
J-Log System with USB Download
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
Easy Mark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
Dual Comfort Handlebar System
- Easy Handlebar Adjustment
Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
Additional Features
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Specifications
| COMPATIBLE SURFACES | Pavement, Turf |
|---|---|
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX160 |
| FUEL TANK CAPACITY (GAL) | 0.95 |
| FUEL TANK CAPACITY (L) | 3.6 |
| GUN ACTIVATION | Manual, Automatic |
| INCLUDES |
Tips, Guard, Gun, Hose, Pump Filter, TSL |
| MAXIMUM FLOW RATE (GPM) | 1.6 |
| MAXIMUM FLOW RATE (L/MIN) | 6 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 87.1 |
| MAXIMUM TIP SIZE (CM) | 0.0737 |
| MAXIMUM TIP SIZE (IN) | 0.029 |
| MAXIMUM TIP SIZE (MM) | 0.7366 |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer V |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 2 |
| NUMBER OF PUMPS | 1 |
| OVERALL HEIGHT (CM) | 113.03 |
| OVERALL HEIGHT (IN) | 44.5 |
| OVERALL HEIGHT (MM) | 1130.3 |
| OVERALL LENGTH (CM) | 174.63 |
| OVERALL LENGTH (IN) | 68.75 |
| OVERALL LENGTH (MM) | 1746.25 |
| OVERALL WIDTH (CM) | 87 |
| OVERALL WIDTH (IN) | 34.25 |
| OVERALL WIDTH (MM) | 870 |
| POWER RATING (HP) | 5.5 |
| POWER RATING (KW) | 4.1 |
| PUMP TYPE | Endurance |
| SERIES | 5900 |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 121 |
| WEIGHT (LB) | 266 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas |
| PRODUCT SERIES | HP Automatic |
