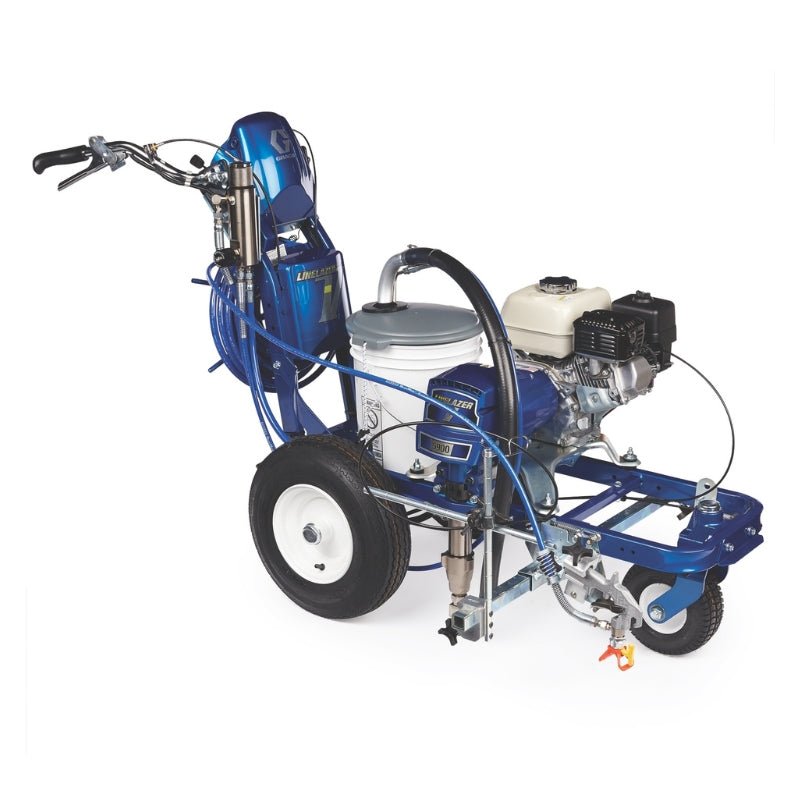

GRACO LineLazer V 5900 Standard Series Airless Line Striper
SKU: 17H454GRACO LineLazer V 5900 Standard Series Airless Line Striper
Other payment options
GRACO LineLazer V 5900 Standard Series Airless Line Striper
Features
- LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- DualComfort Handlebar System
- Easy Handlebar Adjustment
- QuikSelect Gun Selector
- Simple Gun Control
- Independently control of two guns with one lever — solid/skip
- Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
Graco LineLazer V 5900 Standard Series Airless Line Striper
Overview
When it’s time for 1 or 2-gun airless line striping performance with extra power, the LineLazer V 5900 Standard Series striper is an excellent choice. These durable striping machines deliver consistent lines for all your basic striping needs.
The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.
A petrol-powered two gun line marker, LineLazer V 5900 Standard Series is the perfect choice for remarking medium to large carparks & shopping centres. Similar to the Graco LL V 3900 but with better productivity through a larger pump & engine.
Comes complete with two quick release spray guns with tips suitable for striping – one with longer hose for stencil work, three wheel trolley with lock-in jockey wheel, EasyMark gun adjustment system, adjustable handle bar system, digital display with information storage.
Specifications
| COMPATIBLE SURFACES | Pavement, Turf |
|---|---|
| ENGINE BRAND | Honda |
| ENGINE MODEL | GX160 |
| FUEL TANK CAPACITY (GAL) | 0.95 |
| FUEL TANK CAPACITY (L) | 3.6 |
| GUN ACTIVATION | Manual |
| INCLUDES | Tips, Guard, Gun, Hose, Pump Filter, TSL |
| MAXIMUM FLOW RATE (GPM) | 1.6 |
| MAXIMUM FLOW RATE (L/MIN) | 6 |
| MAXIMUM SOUND PRESSURE LEVEL (DB(A)) | 87.1 |
| MAXIMUM TIP SIZE (CM) | 0.1092 |
| MAXIMUM TIP SIZE (IN) | 0.043 |
| MAXIMUM TIP SIZE (MM) | 1.0922 |
| MAXIMUM WORKING PRESSURE (BAR) | 227 |
| MAXIMUM WORKING PRESSURE (KPA) | 2270 |
| MAXIMUM WORKING PRESSURE (PSI) | 3300 |
| MODEL | LineLazer V |
| NUMBER OF COLORS | One Color |
| NUMBER OF GUNS | 1 |
| NUMBER OF PUMPS | 1 |
| OVERALL HEIGHT (CM) | 113.03 |
| OVERALL HEIGHT (IN) | 44.5 |
| OVERALL HEIGHT (MM) | 1130.3000 |
| OVERALL LENGTH (CM) | 173.36 |
| OVERALL LENGTH (IN) | 68.25 |
| OVERALL LENGTH (MM) | 1733.55 |
| OVERALL WIDTH (CM) | 87 |
| OVERALL WIDTH (IN) | 34.25 |
| OVERALL WIDTH (MM) | 869.9500 |
| POWER RATING (HP) | 5.5 |
| POWER RATING (KW) | 4.1 |
| PUMP TYPE | Endurance |
| SERIES | 5900 |
| COMPATIBLE MATERIAL | Road-Marking Paint |
| WEIGHT (KG) | 113 |
| WEIGHT (LB) | 250 |
| TYPE | Walk-Behind Line Striper |
| POWER SOURCE | Gas |
| PRODUCT SERIES | Standard |
- LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- Honda® GX Engine
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- EasyMark Gun Adjustment System
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- EZ Align Wheel System
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- DualComfort Handlebar System
- Easy Handlebar Adjustment
- QuikSelect Gun Selector
- Simple Gun Control
- Independently control of two guns with one lever — solid/skip
- Endurance Chromex Pump
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- Easy Out Pump Filter
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
Features
