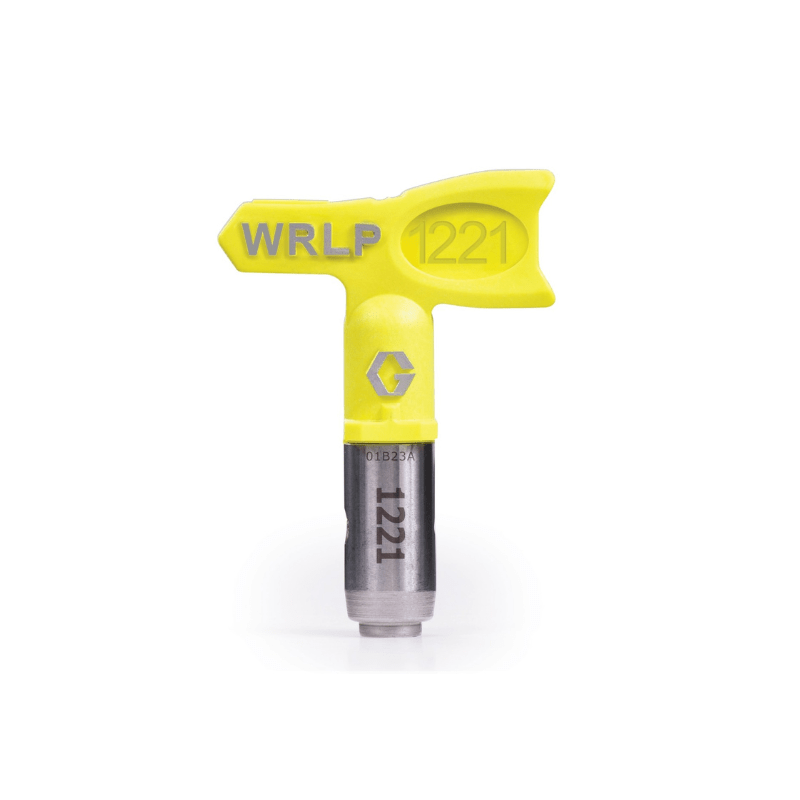

GRACO Low Pressure Wide RAC X LP SwitchTips
SKU: WRLP1221GRACO Low Pressure Wide RAC X LP SwitchTips
Other payment options
Translation missing: en.products.variant.pickup_availability.unavailable
Translation missing: en.products.variant.pickup_availability.unavailable
Translation missing: en.products.variant.pickup_availability.unavailable
Translation missing: en.products.variant.pickup_availability.unavailable
Delivery & Shipping
GRACO Low Pressure Wide RAC X LP SwitchTips
Features
Largest Industry Spray Pattern
- 24 Inch spray pattern
More Productivity
- Deliver 2X more productivity with less spray passes
Less Prep & Cleanup Time
- Less mess with less overspray
- Put the paint where you want it
Easiest Pattern Overlap
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
Extended Life
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
SmartTip Technology
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
Best Tip on the Market
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
Easy to Identify Tip Size
- Large raised tip size numbers are always legible – even when covered with paint
Superior Tip Design
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
Graco Low Pressure Wide RAC X LP SwitchTips
Overview
Finish large jobs in half the time with a 24 inch fan pattern sprayed at low pressure.
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 1221 Wide Low Pressure (WRLP) RAC X SwitchTip. This low pressure, high production tip produces a 24 - 26 inch fan pattern and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs.
For all residential, commercial, interior and exterior high volume applications
RAC X WIDE RAC LOW PRESSURE SWITCHTIPS (WRLPXXX)
Orifice Size, Inches
in
mm
.021
.023
.025
.027
.029
.031
.033
Fan Width
24
610
1221
1223
1225
1227
1229
1231
1233
Flow Rate (gpm)*
.47
.57
.67
.77
.90
1.03
1.17
Flow Rate (lpm)*
1.79
2.15
2.54
2.96
3.42
3.90
4.42
Recommended Filter Size
60
60
60
60
60
30
30
* Water @ 2000 psi, 138 bar, 13.8 MPa — paints with a higher viscosity will decrease the flow rate
Finish large jobs in half the time with a 24 inch fan pattern sprayed at low pressure.
Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 1221 Wide Low Pressure (WRLP) RAC X SwitchTip. This low pressure, high production tip produces a 24 - 26 inch fan pattern and has a 0.021 inch orifice. Reverse the SwitchTip to easily clear clogs.
For all residential, commercial, interior and exterior high volume applications
| RAC X WIDE RAC LOW PRESSURE SWITCHTIPS (WRLPXXX) | ||||||||||||
| Orifice Size, Inches | ||||||||||||
| in | mm | .021 | .023 | .025 | .027 | .029 | .031 | .033 | ||||
| Fan Width | 24 | 610 | 1221 | 1223 | 1225 | 1227 | 1229 | 1231 | 1233 | |||
| Flow Rate (gpm)* | .47 | .57 | .67 | .77 | .90 | 1.03 | 1.17 | |||||
| Flow Rate (lpm)* | 1.79 | 2.15 | 2.54 | 2.96 | 3.42 | 3.90 | 4.42 | |||||
| Recommended Filter Size | 60 | 60 | 60 | 60 | 60 | 30 | 30 | |||||
* Water @ 2000 psi, 138 bar, 13.8 MPa — paints with a higher viscosity will decrease the flow rate
- 24 Inch spray pattern
- Deliver 2X more productivity with less spray passes
- Less mess with less overspray
- Put the paint where you want it
- Softer spray fan pattern
- Easy to apply any material to any surfance
- Consistent blended finish quality
- Spraying at half pressure doubles tip life
- Reduced sprayer maintenance – up to 2X life
- Exclusive internal tip geometry
- Reduces energy required to atomize paints, stains, and other materials
- Delivers a superior finish with less pressure
- Works with SmartControl on select Graco sprayers
- Works with any airless sprayer
- Longest lasting fan pattern
- Highest quality finish with a consistent spray pattern
- Large raised tip size numbers are always legible – even when covered with paint
- Locking tab ensures tip stays securely in guard
- Snaps tip in spray or reverse position
- OneSeal tip gasket installs with no tools
- Solvent seal available when using extremely hot solvents
