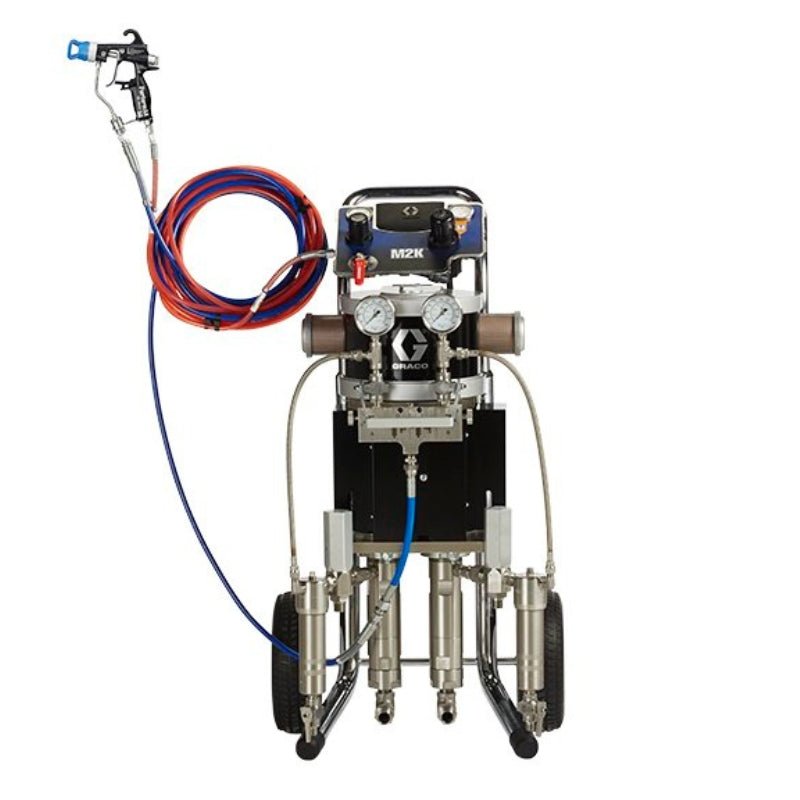

GRACO M2K 3:1 Plural Component Air-Assisted Air Sprayer
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The M2K is an easy to use proportioning system that has all you need in one small package. This fixed ratio machine keeps your mix ratio consistent while only mixing what you use. Plus it eliminates all of the wasted material and cleanup associated with hand mixing – saving you precious time and money. M2K Air-Assist is for low to high fluid viscosity and maximum fluid pressure of 3000 psi (206 bar).
Features
Features
Air Controls
- Easily adjust fluid and air pressure to get the spray pattern you want.
Pump Air Motor and Lowers
- Built with Merkur components for long life.
- Stainless steel fluid section is compatible with a broad range of materials.
- Pump lowers are configured to achieve your fixed mixed ratio requirements.
Mix Module
- 5 gal material hoppers
- Optional flush pumps – select low pressure or high pressure.
- Circulation kit makes pump priming and flushing easier.
Specifications
| SKU | 24V882 | 24V888 |
| INCLUDES | G40 Gun, Standard Mix Manifold | Standard Mix Manifold |
| MAXIMUM FLOW RATE (GPM) | 0.5 | 0.5 |
| MAXIMUM HOSE LENGTH (FT) | 25 | |
| MAXIMUM HOSE LENGTH (M) | 7.6 | |
| MAXIMUM WORKING PRESSURE (BAR) | 207 | 207 |
| MAXIMUM WORKING PRESSURE (KPA) | 20700 | 20700 |
| MAXIMUM WORKING PRESSURE (PSI) | 3000 | 3000 |
| MODEL | M2K | M2K |
| WEIGHT (KG) | 80.3 | 66.2 |
| WEIGHT (LB) | 177 | 146 |
| WETTED MATERIAL | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, PEEK, Nylon, Stainless Steel, Graphite-Filled PTFE | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, PEEK, Nylon, Stainless Steel, Graphite-Filled PTFE |
| SPRAY TYPE | Air-Assisted | Air-Assisted |
| MIX RATIO | 3:01 | 3:01 |
| TYPE | Air-Assisted Airless Sprayer | Air-Assisted Airless Sprayer |
| MAXIMUM WORKING PRESSURE (MPA) | 20.7 | 20.7 |
| MOUNT TYPE | Cart Mount | Wall Mount |
| MATERIAL TYPE | Two Component | Two Component |
| MAXIMUM AIR PRESSURE (BAR) | 7 | 7 |
| MAXIMUM AIR PRESSURE (KPA) | 70 | 70 |
| MAXIMUM AIR PRESSURE (PSI) | 95 | 95 |
| SPRAY GUN TYPE | G40 Gun | |
| PUMP LOWER A SIZE (CC) | 75 | 75 |
| FLUID HOSE INSIDE DIAMETER (IN) | 0.19 | |
| PROPORTIONING TYPE | Manual Mechanical | Manual Mechanical |
| PROPORTIONER TYPE | Mechanical | Mechanical |
| FLUID TO AIR RATIO | 36:01:00 | 36:01:00 |
| PUMP LOWER B SIZE (CC) | 25 | 25 |
| GUN ACTIVATION | Manual | Manual |
| COMPONENT TYPE | Two Component | Two Component |
| NUMBER OF COLOR VALVES | N/A | N/A |
| MAXIMUM NUMBER OF COLORS | 1 | 1 |
Manuals
- Graco Manual M2K Spray Packages Instructions-Parts 333309EN-L
- Graco Manual High Pressure Fluid Line Ball Valve 306861EN-ZAF
- Graco Fluid Outlet Filter Manual 307273EN-ZAG
- Graco Manual Pressure Relief Valve Instructions 308547EN-G
- GO Instruction Graco Husky 205 Air-Operated Diaphragm Pumps 308652EN-ZAS
- GO Manual Graco Silver Plus - Flex Plus Spray Guns Manual 311254EN-N
- GO Manual Graco XTR-5 and XTR-7 Spray Guns 312145EN-G
- Graco AirPro Pressure Feed Airspray Gun Manual 312414EN-U
- Graco Merkur Displacement Pump Service Manual 312792EN-K
- Graco NXT Air Motor Manual 312796EN-S
- Graco Manual M2K Mix Manifolds Instructions 334625EN-B
- Graco G40 RAC Conversion Kit Manual 3A0149EN-G
- GO Manual Graco Merkur ES 3A0732EN-M
- Graco PerformAA Spray Gun Manual 3A8099EN-B
