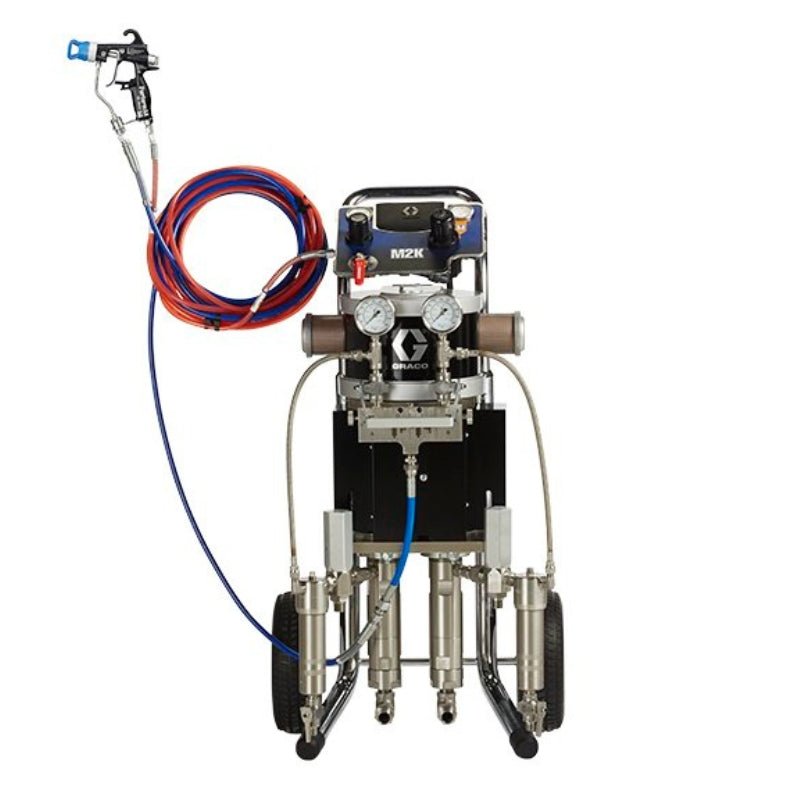

GRACO M2K 5:1 Plural Component Air-Assisted Air Sprayer
Regular price
From $22,220.00 AUD
Sale price
From $22,220.00 AUD
Regular price
$0.00 AUD
Unit price
per
Save $0
Sold out
Features
Air Controls
- Easily adjust fluid and air pressure to get the spray pattern you want.
Pump Air Motor and Lowers
- Built with Merkur components for long life.
- Stainless steel fluid section is compatible with a broad range of materials.
- Pump lowers are configured to achieve your fixed mixed ratio requirements.
Mix Module
- 5 gal material hoppers
- Optional flush pumps – select low pressure or high pressure.
- Circulation kit makes pump priming and flushing easier.
Graco M2K 5:1 Plural Component Air-Assisted Air Sprayer
Overview
The M2K is an easy to use proportioning system that has all you need in one small package. This fixed ratio machine keeps your mix ratio consistent while only mixing what you use. Plus it eliminates all of the wasted material and cleanup associated with hand mixing – saving you precious time and money. M2K Air-Assist is for low to high fluid viscosity and maximum fluid pressure of 3000 psi (206 bar).
- Easily adjust fluid and air pressure to get the spray pattern you want.
- Built with Merkur components for long life.
- Stainless steel fluid section is compatible with a broad range of materials.
- Pump lowers are configured to achieve your fixed mixed ratio requirements.
- 5 gal material hoppers
- Optional flush pumps – select low pressure or high pressure.
- Circulation kit makes pump priming and flushing easier.
Specifications
24V884 | 24V890 | |
INCLUDES | G40 Gun, Standard Mix Manifold | Standard Mix Manifold |
MAXIMUM FLOW RATE (GPM) | 0.8 | 0.8 |
MAXIMUM HOSE LENGTH (FT) | 25 | - |
MAXIMUM HOSE LENGTH (M) | 7.6 | - |
MAXIMUM WORKING PRESSURE (BAR) | 207 | 200 |
MAXIMUM WORKING PRESSURE (KPA) | 20700 | 20000 |
MAXIMUM WORKING PRESSURE (PSI) | 3000 | 2900 |
MODEL | M2K | M2K |
WEIGHT (KG) | 83 | 68.9 |
WEIGHT (LB) | 183 | 152 |
WETTED MATERIAL | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, PEEK, Nylon, Stainless Steel, Graphite-Filled PTFE | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, PEEK, Nylon, Stainless Steel, Graphite-Filled PTFE |
SPRAY TYPE | Air-Assisted | Air-Assisted |
MIX RATIO | 5:01 | 5:01 |
TYPE | Air-Assisted Airless Sprayer | Air-Assisted Airless Sprayer |
MAXIMUM WORKING PRESSURE (MPA) | 20.7 | 20 |
MOUNT TYPE | Cart Mount | Wall Mount |
MATERIAL TYPE | Two Component | Two Component |
MAXIMUM AIR PRESSURE (BAR) | 7 | 7 |
MAXIMUM AIR PRESSURE (KPA) | 70 | 70 |
MAXIMUM AIR PRESSURE (PSI) | 100 | 100 |
SPRAY GUN TYPE | G40 Gun | |
PUMP LOWER A SIZE (CC) | 125 | 125 |
FLUID HOSE INSIDE DIAMETER (IN) | 0.19 | - |
PROPORTIONING TYPE | Manual Mechanical | Manual Mechanical |
PROPORTIONER TYPE | Mechanical | Mechanical |
FLUID TO AIR RATIO | 24:01:00 | 24:01:00 |
PUMP LOWER B SIZE (CC) | 25 | 25 |
GUN ACTIVATION | Manual | Manual |
COMPONENT TYPE | Two Component | Two Component |
NUMBER OF COLOR VALVES | N/A | N/A |
MAXIMUM NUMBER OF COLORS | 1 | 1 |
