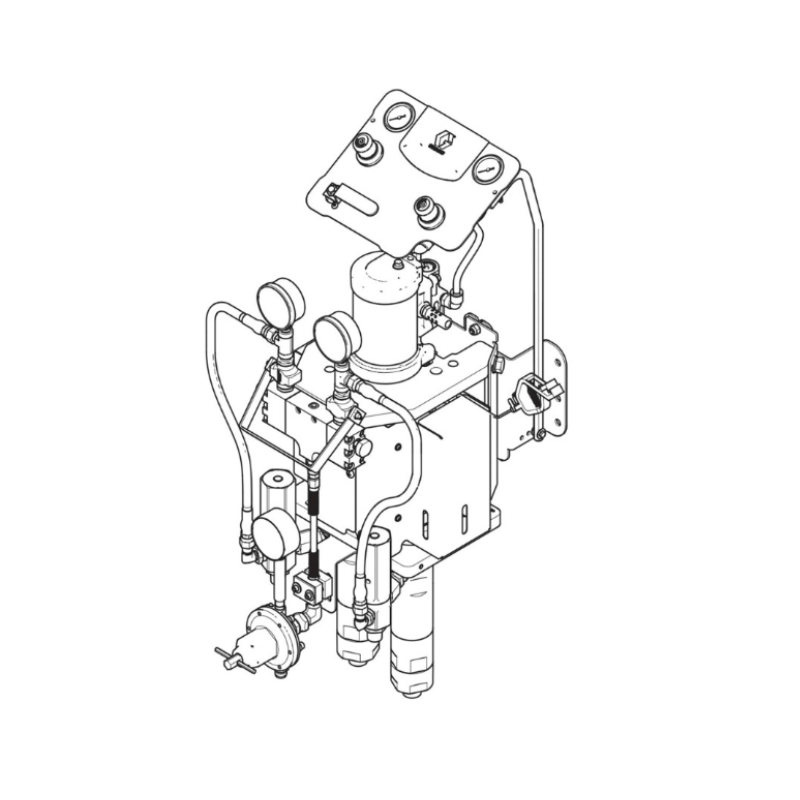

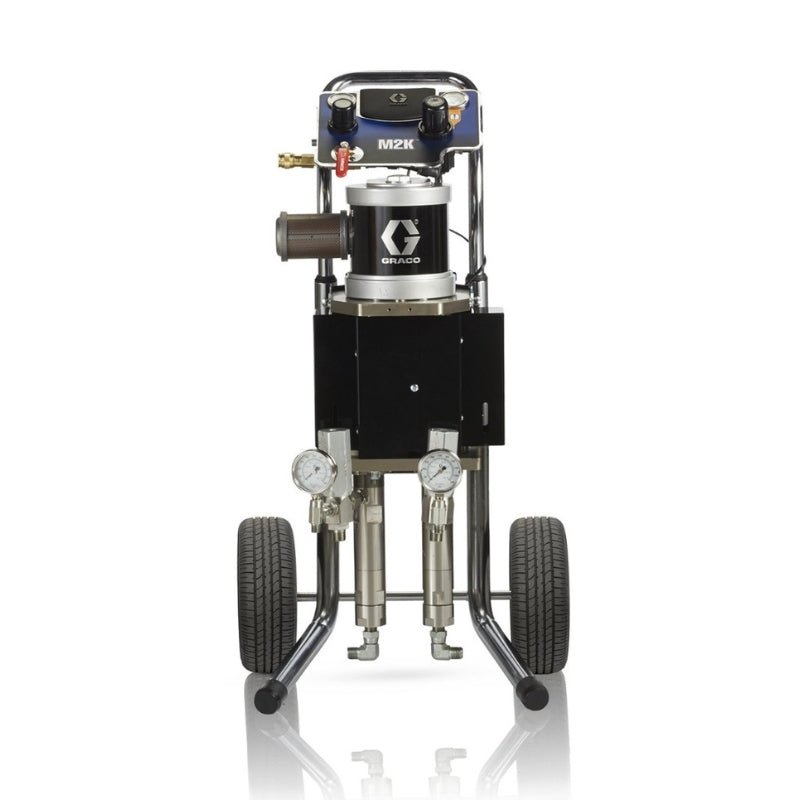

GRACO M2K 5:1 Plural Component Airless Sprayer
SKU: 24V903GRACO M2K 5:1 Plural Component Airless Sprayer
Other payment options
GRACO M2K 5:1 Plural Component Airless Sprayer
Features
Air Controls
- Easily adjust fluid and air pressure to get the spray pattern you want.
Pump Air Motor and Lowers
- Built with Merkur components for long life.
- Stainless steel fluid section is compatible with a broad range of materials.
- Pump lowers are configured to achieve your fixed mixed ratio requirements.
Mix Module
- 5 gal material hoppers
- Optional flush pumps – select low pressure or high pressure.
- Circulation kit makes pump priming and flushing easier.
Graco M2K 5:1 Plural Component Airless Sprayer
Overview
The M2K is an easy to use proportioning system that has all you need in one small package. This fixed ratio machine keeps your mix ratio consistent while only mixing what you use. Plus it eliminates all of the wasted material and cleanup associated with hand mixing – saving you precious time and money
M2K Airless is ideal for quickly applying high volumes of protective coatings to large surfaces.
Specifications
| COMPONENT TYPE | Two Component |
| GUN ACTIVATION | Manual |
| INCLUDES | Standard Mix Manifold |
| MATERIAL TYPE | Two Component |
| MAXIMUM FLOW RATE (GPM) | 0.8 |
| MAXIMUM FLOW RATE (L/MIN) | 3 |
| MAXIMUM NUMBER OF COLORS | 1 |
| MAXIMUM WORKING PRESSURE (BAR) | 197 |
| MAXIMUM WORKING PRESSURE (KPA) | 19700 |
| MAXIMUM WORKING PRESSURE (MPA) | 19.7 |
| MAXIMUM WORKING PRESSURE (PSI) | 2900 |
| MIX RATIO | 5:01 |
| NUMBER OF COLOR VALVES | N/A |
| PROPORTIONER TYPE | Mechanical |
| PROPORTIONING TYPE | Manual Mechanical |
| TYPE | Airless Sprayer |
| WEIGHT (KG) | 68 |
| WEIGHT (LB) | 149 |
| WETTED MATERIAL | PTFE, PEEK, Stainless Steel, Tungsten Carbide, UHMWPE |
| MODEL | M2K |
| PUMP LOWER A SIZE (CC) | 125 |
| FLUID TO AIR RATIO | 24:01:00 |
| PUMP LOWER B SIZE (CC) | 25 |
- Easily adjust fluid and air pressure to get the spray pattern you want.
- Built with Merkur components for long life.
- Stainless steel fluid section is compatible with a broad range of materials.
- Pump lowers are configured to achieve your fixed mixed ratio requirements.
- 5 gal material hoppers
- Optional flush pumps – select low pressure or high pressure.
- Circulation kit makes pump priming and flushing easier.
Features
Air Controls
Pump Air Motor and Lowers
Mix Module
