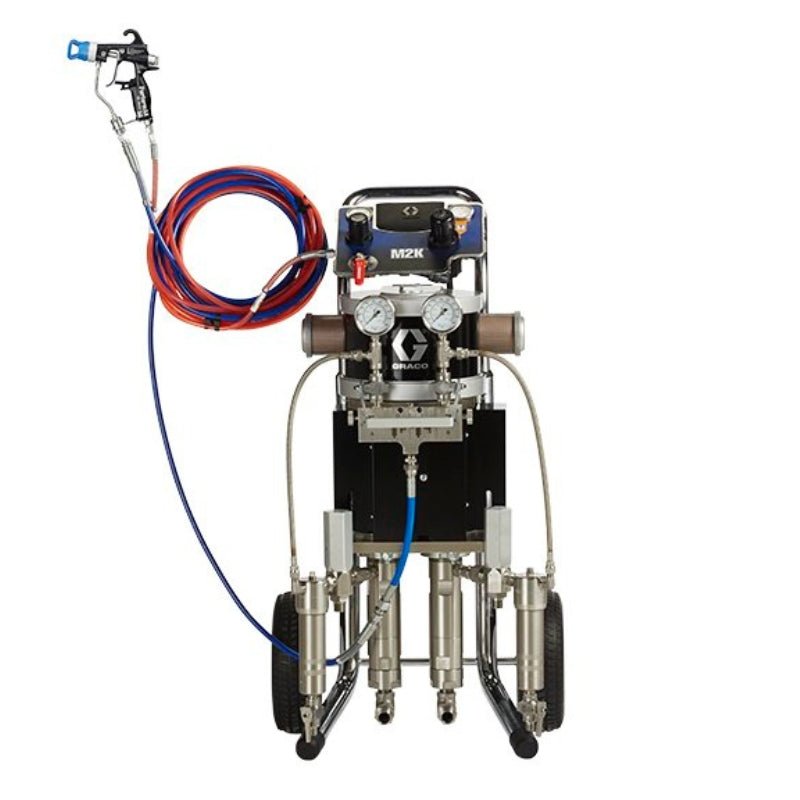

GRACO M2K 6:1 Plural Component Air-Assisted Air Sprayer

SKU: 24V885

GRACO M2K 6:1 Plural Component Air-Assisted Air Sprayer

$25,190.00 AUD
$25,190.00 AUD $0.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Configuration

Other payment options

View full details
Graco M2K 6:1 Plural Component Air-Assisted Air Sprayer

GRACO M2K 6:1 Plural Component Air-Assisted Air Sprayer

From $22,550.00 AUD
From $22,550.00 AUD $0.00 AUD
Save $0
Sold out

Details

  • Increase mix material accuracy to improve finish quality and reduce material waste, compared to hand mixing.
  • Compact size makes it faster and easier to flush, saving you time and disposal costs.
  • Ideal for lower volume two component epoxy, polyurethane and polyester materials.
  • Proven reliability on key system components, including our Merkur air motor.

Features

Air Controls

  • Easily adjust fluid and air pressure to get the spray pattern you want.

Pump Air Motor and Lowers

  • Built with Merkur components for long life.
  • Stainless steel fluid section is compatible with a broad range of materials.
  • Pump lowers are configured to achieve your fixed mixed ratio requirements.

Mix Module

  • 5 gal material hoppers
  • Optional flush pumps – select low pressure or high pressure.
  • Circulation kit makes pump priming and flushing easier.

Graco M2K 6:1 Plural Component Air-Assisted Air Sprayer

Overview

The M2K is an easy to use proportioning system that has all you need in one small package. This fixed ratio machine keeps your mix ratio consistent while only mixing what you use. Plus it eliminates all of the wasted material and cleanup associated with hand mixing – saving you precious time and money. M2K Air-Assist is for low to high fluid viscosity and maximum fluid pressure of 3000 psi (206 bar).

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    Specifications


    		 24V885 24V891
    INCLUDES G40 Gun, Standard Mix Manifold Standard Mix Manifold
    MAXIMUM FLOW RATE (GPM) 0.9 0.9
    MAXIMUM HOSE LENGTH (FT) 25 -
    MAXIMUM HOSE LENGTH (M) 7.6 -
    MAXIMUM WORKING PRESSURE (BAR) 207 165
    MAXIMUM WORKING PRESSURE (KPA) 20700 16500
    MAXIMUM WORKING PRESSURE (PSI) 3000 2400
    MODEL M2K M2K
    WEIGHT (KG) 82.1 68
    WEIGHT (LB) 181 150
    WETTED MATERIAL Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, PEEK, Nylon, Stainless Steel, Graphite-Filled PTFE Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, PEEK, Nylon, Stainless Steel, Graphite-Filled PTFE
    SPRAY TYPE Air-Assisted Air-Assisted
    MIX RATIO 6:01 6:01
    TYPE Air-Assisted Airless Sprayer Air-Assisted Airless Sprayer
    MAXIMUM WORKING PRESSURE (MPA) 20.7 16.5
    MOUNT TYPE Cart Mount Wall Mount
    MATERIAL TYPE Two Component Two Component
    MAXIMUM AIR PRESSURE (BAR) 7 7
    MAXIMUM AIR PRESSURE (KPA) 70 70
    MAXIMUM AIR PRESSURE (PSI) 100 100
    SPRAY GUN TYPE G40 Gun -
    PUMP LOWER A SIZE (CC) 150 150
    FLUID HOSE INSIDE DIAMETER (IN) 0.19 -
    PROPORTIONING TYPE Manual Mechanical Manual Mechanical
    PROPORTIONER TYPE Mechanical Mechanical
    FLUID TO AIR RATIO 20:01 20:01
    PUMP LOWER B SIZE (CC) 25 25
    GUN ACTIVATION Manual Manual
    COMPONENT TYPE Two Component Two Component
    NUMBER OF COLOR VALVES N/A N/A
    MAXIMUM NUMBER OF COLORS 1 1

      Features

      Air Controls

      • Easily adjust fluid and air pressure to get the spray pattern you want.

      Pump Air Motor and Lowers

      • Built with Merkur components for long life.
      • Stainless steel fluid section is compatible with a broad range of materials.
      • Pump lowers are configured to achieve your fixed mixed ratio requirements.

      Mix Module

      • 5 gal material hoppers
      • Optional flush pumps – select low pressure or high pressure.
      • Circulation kit makes pump priming and flushing easier.
