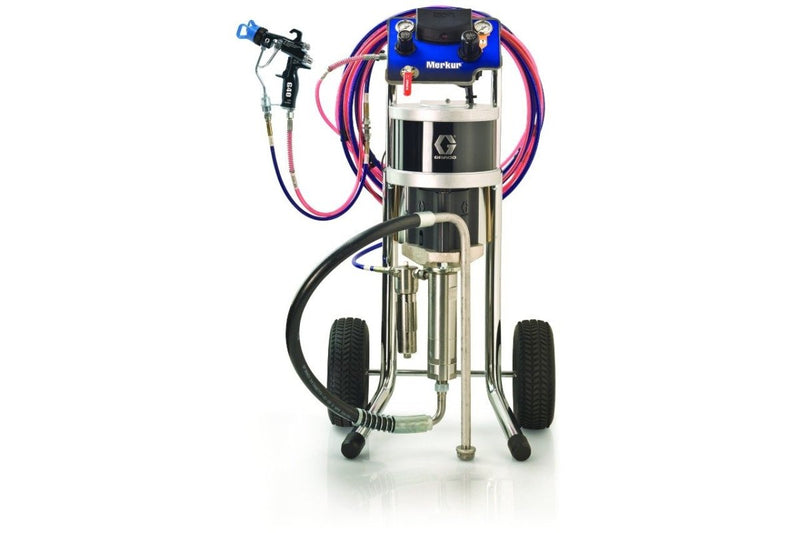

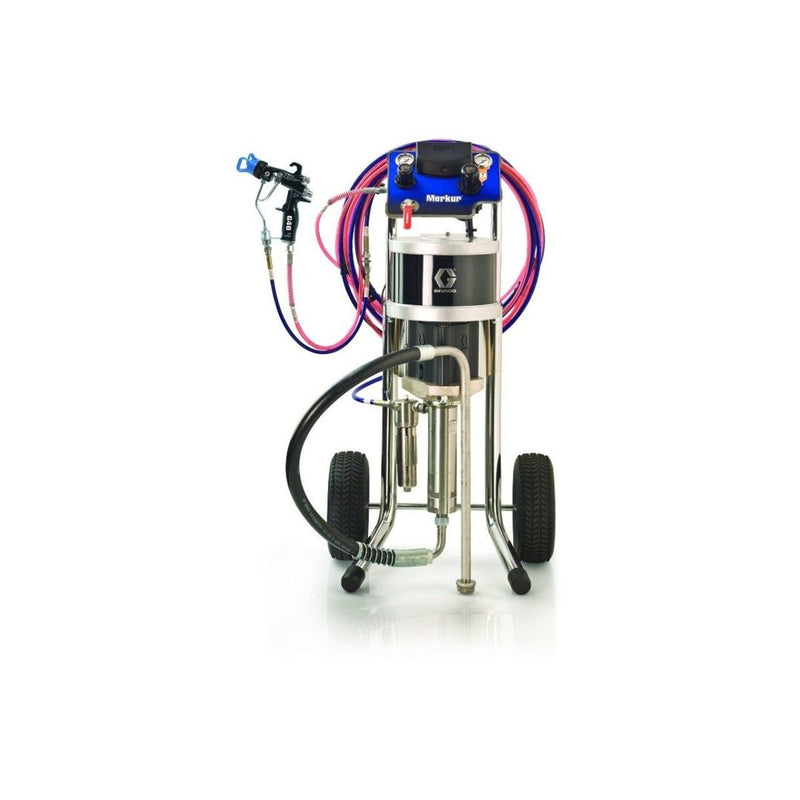

GRACO Merkur 36:1 Cart Mount Fluid Flow Pump
SKU G36C01
$10,608.00
$12,500.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
- High Performance Fine Finish Pump Packages
- Airless and air-assisted fine finish pump packages to improve productivity, reduce costs & lower emissions
- Achieve the right flows at the right pressures to fit all of your spraying needs.
- With four air motor sizes and 13 different models to choose from, the new and improved Merkur fine finish pump packages are designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
- The Merkur pump packages are proven to outperform and outlast other pumps in their class.
Specifications
Merkur Displacement Pumps |
|
| Maximum Operating Temperature |
71°C
|
| Stroke Length |
64 mm
|
| Wetted Parts |
Stainless Steel, Tungsten Carbide, UHMWPE, PTFE
|
| Maximum Working Fluid Pressure | |
| Model LW025A |
207 bar, 20.7 MPa
|
| Model LW050A |
310 bar, 31.0 MPa
|
| Model LW075A |
331 bar, 33.1 MPa
|
| Model LW100A |
248 bar, 24.8 MPa
|
| Model LW125A |
200 bar, 20.0 MPa
|
| Model LW150A |
165 bar, 16.5 MPa
|
| Fluid Inlet Size | |
| Model LW025A |
1/2 npt
|
| Model LW050A, LW075A, LW100A |
3/4 npt
|
| Model LW125A, LW150A |
1 npt
|
| Fluid Outlet Size | |
| Model LW025A, LW050A, LW075A, LW100A |
3/8 npt
|
| Model LW125A |
1/2 npt
|
| Model LW150A |
3/4 npt
|
Merkur Non-Heated Spray Packages |
|
|
Metric
|
|
| Maximum fluid working pressure |
See Models table on page 6.
|
| Maximum pump air inlet pressure |
(0.7 MPa, 7.0 bar)
|
| Maximum gun air inlet pressure |
(0.7 MPa, 7.0 bar)
|
| Ratio |
See Models table on page 6.
|
| Ambient air temperature range |
(2°C–49°C)
|
| Maximum fluid temperature |
(71°C)
|
| Sound data |
See Technical Data in air motor manual 312796
|
| Wetted parts |
Displacement pump: Stainless steel, tungsten carbide with 6% nickel, UHMWPE, PTFE. Spray gun: See Manual 3A0149 (AA guns) or Manual 312145 (XTR guns). Fluid hoses: nylon. Suction assembly: stainless steel, nylon. Fluid filter: See manual 307273. Drain valve: stainless steel, nylon
|
Merkur Electrostatic Spray Packages |
|
|
Metric
|
|
| Maximum Fluid Working Pressure |
See Models table in instruction manual
|
| Maximum Fluid Inlet Pressure(Bellows) |
0.1 MPa, 1.0 bar
|
| Maximum Pump Air Inlet Pressure |
0.7 MPa, 7.0 bar
|
| Maximum Gun Air Inlet Pressure |
0.7 MPa, 7.0 bar
|
| Ratio |
See Models table in instruction manual
|
| Ambient Air Temperature Range |
2-49°C
|
| Maximum Operating Temperature |
49°C
|
| Sound Data |
See Technical Data in air motor manual 312796.
|
| Wetted Parts (displacement pump) |
See manual 312792 (Merkur) or 312793 (Merkur Bellows).
|
| Wetted Parts (spray gun) |
See manual 3A2495.
|
| Wetted Parts (fluid hoses) |
nylon
|
| Wetted Parts (suction assembly) |
stainless steel, nylon
|
| Wetted Parts (fluid filter) |
See manual 307273.
|
| Wetted Parts (drain valve) |
stainless steel, nylon
|
Merkur Heated Spray Packages |
|
|
Metric
|
|
| Maximum fluid working pressure |
See Models table on page 5
|
| Maximum pump air inlet pressure |
0.7 MPa, 7.0 bar
|
| Maximum gun working pressure |
0.7 MPa, 7.0 bar
|
| Ratio |
See Models table on page 5.
|
| Ambient air temperature range |
(2°C–49°C)
|
| Maximum fluid temperature |
(71°C)
|
| Sound data |
See Technical Data in air motor manual 312796
|
| Wetted parts |
Displacement pump: Stainless steel, tungsten carbide with 6% nickel, UHMWPE, PTFE. Spray gun: See Manual 3A0149 (AA guns) or Manual 312145 (XTR gun). Fluid hoses: nylon. Suction assembly: stainless steel, nylon. Fluid filter: See Manual 307273. Heater: Stainless steel. Back pressure regulator: See Manual 306860. Back pressure valve: See Manual 307892. Drain valve: stainless steel, nylon
|
Features
Features
Specifications
| CONVERTIBLE | Non-Convertible |
|---|---|
| FLUID INLET SIZE (CM) | 1.905 |
| FLUID INLET SIZE (IN) | 3/4 |
| FLUID INLET SIZE (MM) | 19.05 |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 0.9525 |
| FLUID OUTLET SIZE (IN) | 3/8 |
| FLUID OUTLET SIZE (MM) | 9.525 |
| FLUID OUTLET THREAD TYPE | NPT |
| HOSE INLET DIAMETER (CM) | 0.5 |
| HOSE INLET DIAMETER (IN) | 0.1968 |
| HOSE INLET DIAMETER (MM) | 5 |
| INCLUDES | Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter |
| MAXIMUM FLOW RATE (GPM) | 1.6 |
| MAXIMUM FLOW RATE (L/MIN) | 6.06 |
| MAXIMUM HOSE LENGTH (CM) | 762 |
| MAXIMUM HOSE LENGTH (FT) | 25 |
| MAXIMUM HOSE LENGTH (M) | 7.6 |
| MAXIMUM HOSE LENGTH (MM) | 7620 |
| MAXIMUM WORKING PRESSURE (BAR) | 248 |
| MAXIMUM WORKING PRESSURE (KG/CM²) | 253.11 |
| MAXIMUM WORKING PRESSURE (KPA) | 24800 |
| MAXIMUM WORKING PRESSURE (PSI) | 3600 |
| MODEL | Merkur |
| MOTOR TYPE | Pneumatic |
| NUMBER OF GUNS | 1 |
| POWER SOURCE | Air |
| PUMP TYPE | Pneumatic Piston Pump |
| WEIGHT (KG) | 51.71 |
| WEIGHT (LB) | 114 |
| WETTED MATERIAL | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon, Engineered Plastic, Fluoroelastomer |
| SPRAY TYPE | Air-Assisted |
| TYPE | Air-Assisted Airless Sprayer |
| MAXIMUM WORKING PRESSURE (MPA) | 24.8 |
| PRESSURE TYPE | High Pressure |
| MOUNT TYPE | Cart Mount |
| PUMP RATIO | 36:1 |
| GUN TECHNOLOGY | Air-Assisted |
| GUN TYPE | Air-Assisted |
| GUN INCLUDED | 1 |
| PRODUCT TYPE | Spray Package |
| GUN MODEL | PerformAA 50 RAC Air Assist |
| TECHNOLOGY TYPE | Air-Assisted |
Manuals
- GO Manual Graco Merkur 312797T
- GO Manual graco merkur pump 312794EN-J
- Graco Merkur Electrostatic Spray Packages Manual 312798EN-V
- Graco Merkur Heated Spray Packages Manual 313255EN-V
- Graco Merkur Displacement Pump Service Manual 312792EN-K
- Graco NXT Air Motor Manual 312796EN-S
- Graco Flat Line Spray System Kits Manual 3A1203EN-B
- Graco Merkur Instruction Parts Back Pressure Regulator 306860EN-S
- Graco Fluid Outlet Filter Manual 307273EN-ZAG
- GO Manual Graco Viscon Fluid Heater 309524EN-U
- Graco Merkur Manual Instruction Merkur Bellows Displacement Pump 312793EN-L
- Graco Merkur Manual Instructions Merkur Bellows Pump Assembly 312795EN-K
- Graco Merkur Manual Instructions Merkur Bellows AA and Airless Spray Packages 312799EN-V
- Graco Merkur Manual Instruction Parts G15 G40 Spray Gun 3A0149EN-H
- Graco Pro Xp Electrostatic Spray Gun Manual 3A2495EN-M
- Graco Merkur Manual Instruction Parts Merkur Non-Heated Spray Packages 3A7003EN-B
- Graco Merkur Manual Instruction Parts Merkur Electrostatic Airspray Packages 3A7004EN-B
