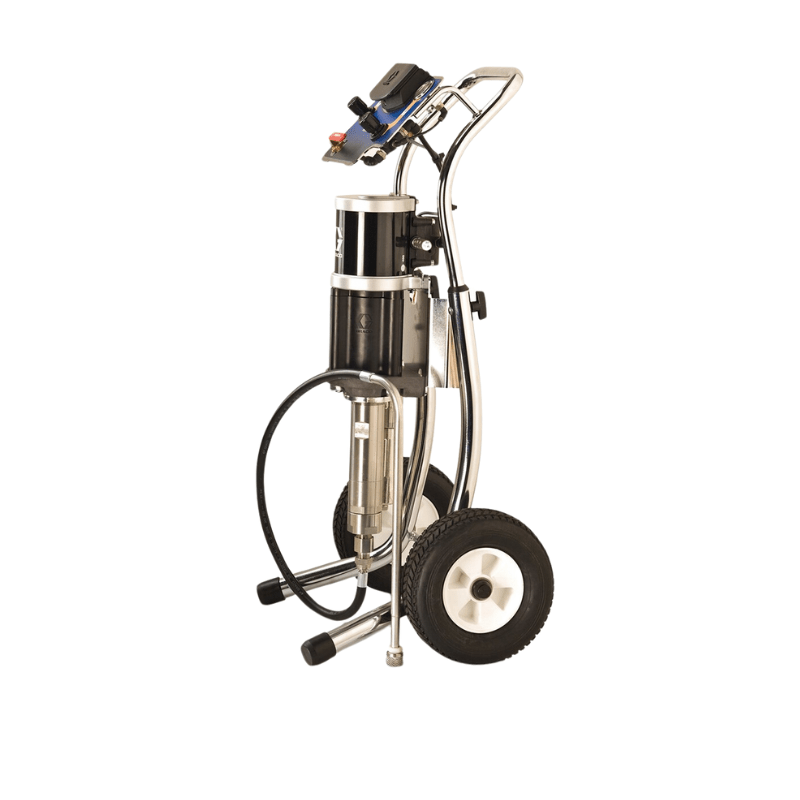

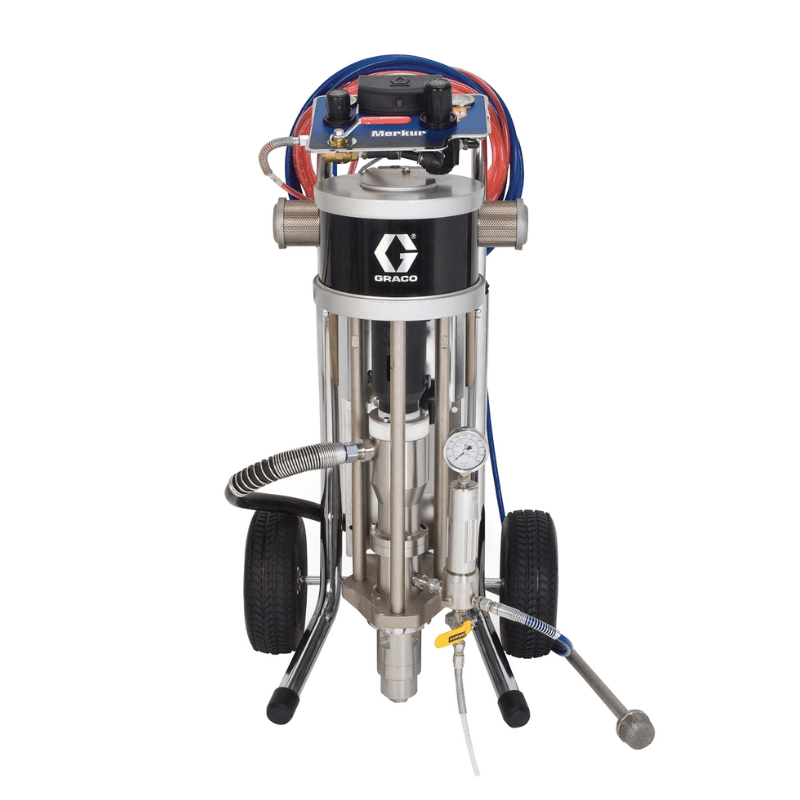

GRACO Merkur Bellows 24:1 Cart Mount Ratio Electrostatic Package
SKU G24B33
$33,220.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Graco’s Merkur bellows piston pumps provide low maintenance with no seals exposed to the atmosphere. These pumps are designed to eliminate conventional throat seals, providing high reliability for moisture-sensitive materials.
Features
Features
Specifications
| APPLICATION | Supply |
|---|---|
| COMPATIBLE MATERIAL | Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating |
| FLUID INLET SIZE (CM) | 2.5400 |
| FLUID INLET SIZE (IN) | 1 |
| FLUID INLET SIZE (MM) | 25.4000 |
| FLUID INLET THREAD GENDER | Male |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 1.905 |
| FLUID OUTLET SIZE (IN) | 3/4 |
| FLUID OUTLET SIZE (MM) | 19.05 |
| FLUID OUTLET THREAD GENDER | Male |
| FLUID OUTLET THREAD TYPE | NPT |
| INCLUDES | Pump and Gun Air Controls, Drain Valves, Fluid Filter, V-Packing |
| MATERIAL | Stainless Steel |
| MAXIMUM FLOW RATE (GPM) | 2.4 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 120 |
| MAXIMUM WORKING PRESSURE (BAR) | 165 |
| MAXIMUM WORKING PRESSURE (KPA) | 16500 |
| MAXIMUM WORKING PRESSURE (PSI) | 2400 |
| MOTOR TYPE | Pneumatic |
| MOUNT LOCATION | Cart Mount |
| NUMBER OF PIECES | 10 |
| SERIES | Bellows |
| PUMP RATIO | 24:1 |
| PUMP TYPE | Pneumatic Piston Pump |
| WETTED MATERIAL | Stainless Steel |
| TYPE | Pneumatic Piston Pump |
| GUN TYPE | Electrostatic |
| GUN MODEL | Pro Xp 85 kV Smart |
| MOUNT TYPE | Cart Mount |
| PRODUCT TYPE | Spray Package |
| MAXIMUM WORKING PRESSURE (MPA) | 16.5 |
| GUN TECHNOLOGY | Electrostatic |
| MODEL | Merkur |
Manual
- Graco Merkur Manual Instructions Merkur Bellows AA and Airless Spray Packages 312799EN-V
- Graco Merkur Electrostatic Spray Packages Manual 312798EN-V
- Graco Merkur Manual Instructions Merkur Bellows Pump Assembly 312795EN-K
- Graco Merkur Manual Instruction Merkur Bellows Displacement Pump 312793EN-L
- Graco NXT Air Motor Manual 312796EN-S
- Graco Flat Line Spray System Kits Manual 3A1203EN-B
- Graco Merkur Instruction Parts Back Pressure Regulator 306860EN-S
- Graco Manual High Pressure Fluid Line Ball Valve 306861EN-ZAF
- Graco Fluid Outlet Filter Manual 307273EN-ZAG
- GO Manual Graco Viscon Fluid Heater 309524EN-U
- GO Manual Graco XTR-5 and XTR-7 Spray Guns 312145EN-G
- Graco Merkur Displacement Pump Service Manual 312792EN-K
- Graco Merkur Pump Assembly Manual 312794EN-M
- Graco Merkur Non-Heated Spray Packages Manual 312797EN-ZAD
- Graco Merkur Heated Spray Packages Manual 313255EN-V
- Graco Merkur Manual Instruction Parts G15 G40 Spray Gun 3A0149EN-H
- Graco Pro Xp Electrostatic Spray Gun Manual 3A2495EN-M
- Graco Merkur Manual Instruction Parts Merkur Non-Heated Spray Packages 3A7003EN-B
- Graco Merkur Manual Instruction Parts Merkur Electrostatic Airspray Packages 3A7004EN-B
