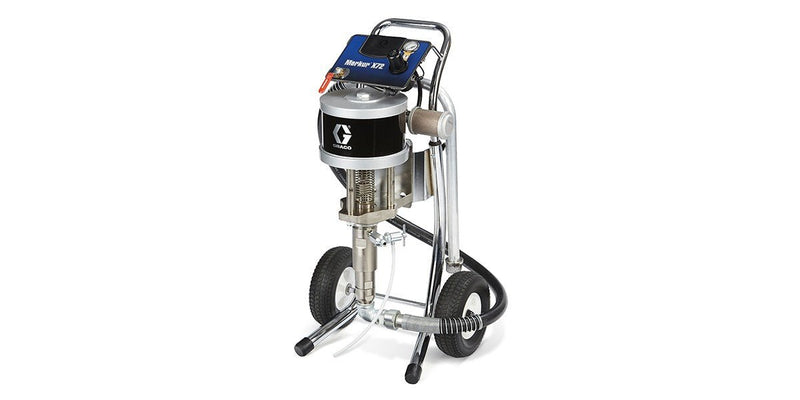

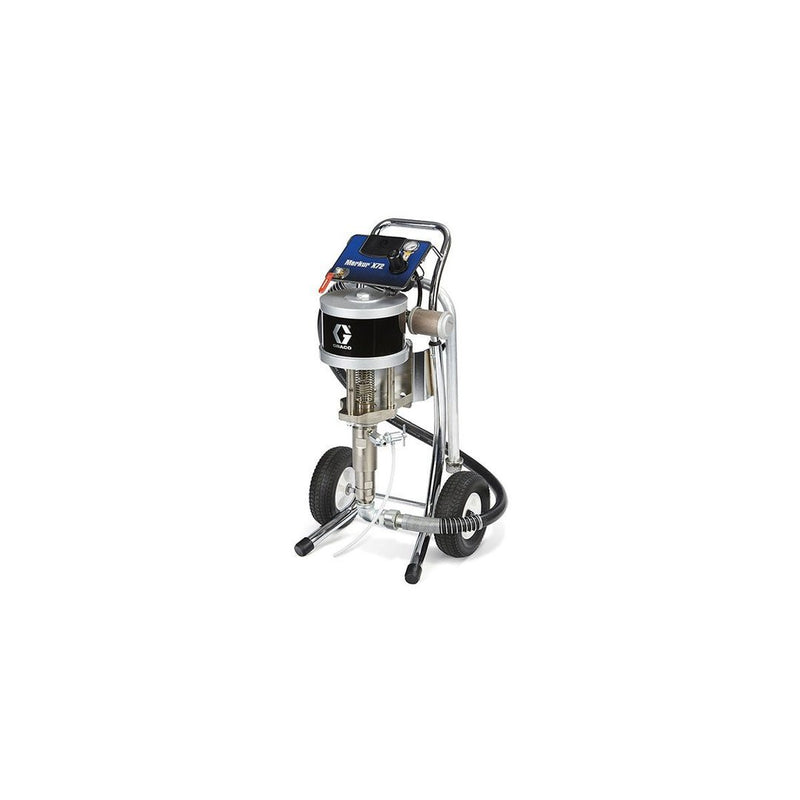

Graco Merkur Cart-Mount Airless Sprayer Bare Unit 72:1 16V174
  • Graco Merkur Cart-Mount Airless Sprayer Bare Unit 72:1 16V174
1 1

Product Range

  • 16V174 - Bare Unit
  • 16U918 - Complete Package

Standard Inclusions - 16U920

Features

  • Portable and lightweight – weighs just 99 pounds (45 kgs) and easy to maneuver
  • Compact size lets you spray in the smallest areas
  • Ideal for one-gun applications using up to 0.021 in tip
  • Powerful – sprays medium to high solids coating materials at pressures up to 7200 psi (500 bar)
  • Affordable – get high quality results with minimal investment
  • Flexible – ideal for a wide range of applications, including marine, rail and steel fabrication
  • GO Data Sheet Graco Merkur X48 X72 348913EN-A
  • GO Manual Graco Merkur X48 X72 332245EN-F
  • GO Manual Graco Merkur Pump X48 X72 332246EN-C
  • Graco NXT Air Motor Manual 312796EN-S
  • GO Data Sheet Graco Merkur X48 Airless Sprayer Range 340833EN-A

Technical Specifications

COMPATIBLE MATERIAL Protective Coating
FLUID INLET SIZE (IN) 1-1/4
FLUID INLET SIZE (MM) 31.75
FLUID INLET THREAD TYPE NPT
FLUID OUTLET SIZE (IN) 3/8
FLUID OUTLET SIZE (MM) 9.525
FLUID OUTLET THREAD TYPE NPT
HOSE INLET DIAMETER (CM) 0.9525
HOSE INLET DIAMETER (IN) 3/8
HOSE INLET DIAMETER (MM) 9.525
INLET PAINT STRAINER 8 Mesh, 16 Mesh
MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 68.9
MAXIMUM TIP SIZE (IN) 0.021
MAXIMUM WORKING PRESSURE (PSI) 7250
MAXIMUM WORKING PRESSURE (KPA) 50000
POWER SOURCE Pneumatic
MAXIMUM WORKING PRESSURE (MPA) 50
PRESSURE CONTROL TYPE Air Regulator
MODEL Merkur
MAXIMUM WORKING PRESSURE (BAR) 500
WEIGHT (KG) 45
WEIGHT (LB) 99
SERIES X48/X72
PUMP TYPE Displacement Pump, Pneumatic Piston Pump
TYPE Airless Sprayer
MOTOR TYPE Pneumatic Motor
PUMP SLEEVE MATERIAL Stainless Steel
PUMP ROD TYPE Carbon Steel
NUMBER OF GUNS 0
MOUNT TYPE Cart Mount
PUMP PRESSURE RATIO 72:1
LOWER CONFIGURATION Carbon Steel;1-1/4 in. Inlet;Drain Valve
PACKAGE OPTIONS Bare (No Hose/Gun)
MAXIMUM AIR CONSUMPTION (SCFM) 70
FLUID OUTLET THREAD GENDER Male
VOLUME PER CYCLE (CM³) 50
  • Compact – fits into tight areas
  • Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
  • Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
  • Easy to use, easy to clean
  • Stainless steel option allows for waterborne coatings
  • The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

Graco Merkur 72:1 Cart-Mount Airless Sprayer

SKU: 16V174

Graco Merkur 72:1 Cart-Mount Airless Sprayer

$7,876.00 AUD
$7,876.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size

Other payment options

The Basics

  • High-Pressure Airless Sprayers for Protective Coatings
  • Portable, lightweight sprayer for a wide range of protective coatings projects
  • The Merkur Airless Sprayer offers a unique combination of power and portability.
  • Capable of spraying medium to high solids materials at pressures up to 7200 psi, the Merkur series handles a wide range of hot potted protective coatings applications


    Product Range

    • 16V174 - Bare Unit
    • 16U918 - Complete Package

    Standard Inclusions - 16U920

    Features

    • Portable and lightweight – weighs just 99 pounds (45 kgs) and easy to maneuver
    • Compact size lets you spray in the smallest areas
    • Ideal for one-gun applications using up to 0.021 in tip
    • Powerful – sprays medium to high solids coating materials at pressures up to 7200 psi (500 bar)
    • Affordable – get high quality results with minimal investment
    • Flexible – ideal for a wide range of applications, including marine, rail and steel fabrication
    • GO Data Sheet Graco Merkur X48 X72 348913EN-A
    • GO Manual Graco Merkur X48 X72 332245EN-F
    • GO Manual Graco Merkur Pump X48 X72 332246EN-C
    • Graco NXT Air Motor Manual 312796EN-S
    • GO Data Sheet Graco Merkur X48 Airless Sprayer Range 340833EN-A

    Technical Specifications

    COMPATIBLE MATERIAL Protective Coating
    FLUID INLET SIZE (IN) 1-1/4
    FLUID INLET SIZE (MM) 31.75
    FLUID INLET THREAD TYPE NPT
    FLUID OUTLET SIZE (IN) 3/8
    FLUID OUTLET SIZE (MM) 9.525
    FLUID OUTLET THREAD TYPE NPT
    HOSE INLET DIAMETER (CM) 0.9525
    HOSE INLET DIAMETER (IN) 3/8
    HOSE INLET DIAMETER (MM) 9.525
    INLET PAINT STRAINER 8 Mesh, 16 Mesh
    MAXIMUM SOUND PRESSURE LEVEL (DB(A)) 68.9
    MAXIMUM TIP SIZE (IN) 0.021
    MAXIMUM WORKING PRESSURE (PSI) 7250
    MAXIMUM WORKING PRESSURE (KPA) 50000
    POWER SOURCE Pneumatic
    MAXIMUM WORKING PRESSURE (MPA) 50
    PRESSURE CONTROL TYPE Air Regulator
    MODEL Merkur
    MAXIMUM WORKING PRESSURE (BAR) 500
    WEIGHT (KG) 45
    WEIGHT (LB) 99
    SERIES X48/X72
    PUMP TYPE Displacement Pump, Pneumatic Piston Pump
    TYPE Airless Sprayer
    MOTOR TYPE Pneumatic Motor
    PUMP SLEEVE MATERIAL Stainless Steel
    PUMP ROD TYPE Carbon Steel
    NUMBER OF GUNS 0
    MOUNT TYPE Cart Mount
    PUMP PRESSURE RATIO 72:1
    LOWER CONFIGURATION Carbon Steel;1-1/4 in. Inlet;Drain Valve
    PACKAGE OPTIONS Bare (No Hose/Gun)
    MAXIMUM AIR CONSUMPTION (SCFM) 70
    FLUID OUTLET THREAD GENDER Male
    VOLUME PER CYCLE (CM³) 50
    • Compact – fits into tight areas
    • Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
    • Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
    • Easy to use, easy to clean
    • Stainless steel option allows for waterborne coatings
    • The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.
