GRACO Mini Fire-Ball® 225 3:1 Universal Size Oil Pump - 246775
GRACO Mini Fire-Ball® 225 3:1 Universal Size Oil Pump - 246775
  • GRACO Mini Fire-Ball® 225 3:1 Universal Size Oil Pump - 246775
  • GRACO Mini Fire-Ball® 225 3:1 Universal Size Oil Pump - 246775
1 3

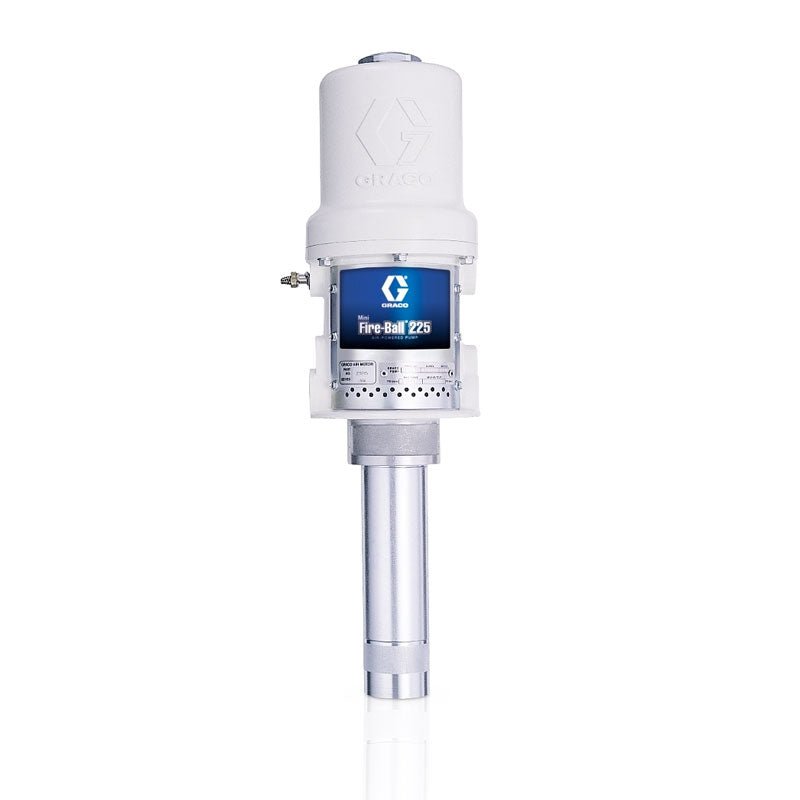

GRACO Mini Fire-Ball 225 3:1 Oil Pump

SKU: 248097

GRACO Mini Fire-Ball 225 3:1 Oil Pump

$1,892.00 AUD
$1,892.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.

Other payment options

View full details
GRACO Mini Fire-Ball® 225 3:1 Universal Size Oil Pump - 246775

GRACO Mini Fire-Ball 225 3:1 Oil Pump

$1,892.00 AUD
$1,892.00 AUD
Save $0
Sold out

Details

  • Simultaneous Dispense Points - 1 to 2
  • Approx Free Flow Rate @ 100 psi - 32lpm
  • Air Inlet - 3/8" BSPT(F)
  • Fluid Outlet - 1/2" BSPT(F)
  • Air Operation Range - 40-180 psi
  • Max Fluid - 540 PSI
  • Supplied with Suction Tube and Bung Adaptor

Features

  • Durable - Thick cast aluminium air motor housing offers unmatched durability.
  • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
  • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximise seal life.
  • Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
  • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
  • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
  • Corrosion-Resistant - Corrosion-resistant design utilises liquid salt nitriding, nickel plating, stainless steel, aluminium and chrome on key components for longer life.

    • Graco Mini Fire-Ball 225 3:1 Oil Pump

    Overview

    You can't afford down time, especially when your workshop is small and your work force depends on equipment performance.  The Graco Mini Fire-Ball 225 Oil Pump, from GO Industrial, is engineered with fewer moving parts, which means less wear, and therefore reduced downtime and more profit for your business.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • GO Data Sheet Graco Mini Fire-Ball 225
    • GO Manual Graco 309869EN-C
    • GO Manual Graco Mini Fire-Ball 225 Parts Listing
    • GRACO Mini Fire-Ball 225 3-1 Universal Size Oil Pump - 246775 Product Manual

    Specifications

    Air Inlet Size (in) 3/8
    Air Inlet Thread Gender Female
    Air Inlet Thread Type NPT
    Air Motor Effective Diameter (in) 2.25
    Application Industrial
    Compatible Material Oil
    Cycles Per Gallon 43.5
    Fluid Inlet Size (in) 1-1/2
    Fluid Inlet Thread Gender Female
    Fluid Inlet Thread Type NPT
    Fluid Outlet Size (in) 1/2
    Fluid Outlet Thread Gender Female
    Fluid Outlet Thread Type NPT
    For Use With Petroleum and synthetic-based oils (motor, gear and ATF)
    Includes Hose Installation Kit, Drum Cover, Air Regulator
    Material Aluminium, Buna-N, Polyurethane, Rulon®, Steel
    Maximum Air Consumption (SCFM) 20
    Maximum Air Inlet Pressure (psi) 180
    Maximum Continuous Cycle Rate (cpm) 100
    Maximum Working Pressure (MPa) 3.7
    Maximum Working Pressure (psi) 540
    Portable Portable
    Power Type Pneumatic
    Sound Power Level (dB(A)) 85.6
    Sound Pressure Level (dB(A)) 77.8
    Type Pneumatic Piston Pump
    Weight (lb) 16
    Wetted Material Steel, Polyurethane, Aluminium, Buna-N
    Air Inlet Size (cm) 0.9525
    Air Inlet Size (mm) 9.525
    Air Inlet Thread Gender Female
    Air Inlet Thread Type NPT
    Application Industrial
    Compatible Material Oil
    Cycles Per Gallon 43.5
    Fluid Inlet Size (cm) 3.81
    Fluid Inlet Size (mm) 38.1
    Fluid Inlet Thread Gender Female
    Fluid Inlet Thread Type NPT
    Fluid Outlet Size (cm) 1.27
    Fluid Outlet Size (mm) 12.7
    Fluid Outlet Thread Gender Female
    Fluid Outlet Thread Type NPT
    For Use With Petroleum and synthetic-based oils (motor, gear and ATF)
    Includes Hose Installation Kit, Drum Cover, Air Regulator
    Material Aluminium, Buna-N, Polyurethane, Rulon®, Steel
    Maximum Air Inlet Pressure (bar) 12.41
    Maximum Air Inlet Pressure (kPa) 1241
    Maximum Continuous Cycle Rate (cpm) 100
    Maximum Working Pressure (MPa) 3.7
    Maximum Working Pressure (bar) 37
    Maximum Working Pressure (kPa) 3700
    Portable Portable
    Power Type Pneumatic
    Sound Power Level (dB(A)) 85.6
    Sound Pressure Level (dB(A)) 77.8
    Type Pneumatic Piston Pump
    Weight (kg) 0.7264
    Wetted Material Steel, Polyurethane, Aluminium, Buna-N

      Features

    • Durable - Thick cast aluminium air motor housing offers unmatched durability.
    • Fewer Repairs - Fewer moving parts in the air motor assembly means less downtime and low repair cost.
    • Extended Seal Life - In-line pump design aligns the air motor piston and fluid piston rods to maximise seal life.
    • Reduce Downtime - Displacement rods have minimal wear due to a proprietary Graco manufacturing process.
    • Superior Sealing - Non-metallic poppet valves offer positive sealing performance, even with contaminated "dirty" air environments for long life without repair.
    • Reduced Icing - Large air porting design provides efficient use of compressed air supply for continuous pump operation and reduced icing.
    • Corrosion-Resistant - Corrosion-resistant design utilises liquid salt nitriding, nickel plating, stainless steel, aluminium and chrome on key components for longer life.
