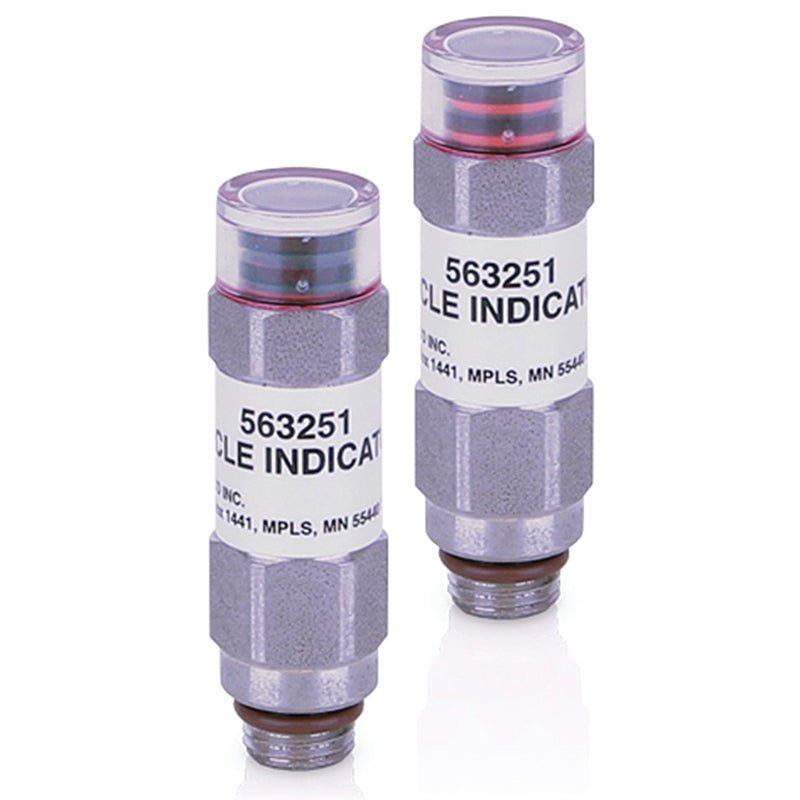

GRACO MSP and MHH Visual Cycle Indicator Divider Valves
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The self-contained Visual Cycle Indicator is designed to allow for easy installation to Trabon MSP and Manzel MHH divider valves. The red indicator ring moves with the valve piston, allowing the user to visually determine the timing of each divider valve cycle.pter
Features
The self-contained Visual Cycle Indicator is designed to allow for easy installation to Trabon MSP and Manzel MHH divider valves. The red indicator ring moves with the valve piston, allowing the user to visually determine the timing of each divider valve cycle.
For use with Oil or Grease lubrication systems, at pressures up to 7500 psi (517 bar).
- Makes physical contact with valve piston
- Polycarbonate housing allows for clear view of red indicator ring
- All parts are captured
- FKM o-ring seal for broad compatibility with synthetic oils and greases
- Replaces Lubriquip part number 509-932-522
Specifications
UPC Product: 00633955360822
Family Code: FAMCPT
Unit of Measure: EA
Height: 1.8 IN | 4.572 CM
Length: .55 IN | 1.397 CM
Width: .55 IN | 1.397 CM
Volume: 0 FT3 | 0 M3
Chargeable Weight: .12 LBS | .05 KG
Technical Specifications
| APPLICATION | On-Road Vehicles, Off-Road Equipment, Compressor Equipment |
|---|---|
| COMPATIBLE MATERIAL | Oil, Grease |
| INDICATOR TYPE | Cycle Indicator |
| MAXIMUM WORKING PRESSURE (BAR) | 517.11 |
| MAXIMUM WORKING PRESSURE (KPA) | 51711 |
| MAXIMUM WORKING PRESSURE (PSI) | 7500 |
| TYPE | Cycle Indicator |
| MAXIMUM WORKING PRESSURE (MPA) | 51.7 |
| MODEL | Trabon |
