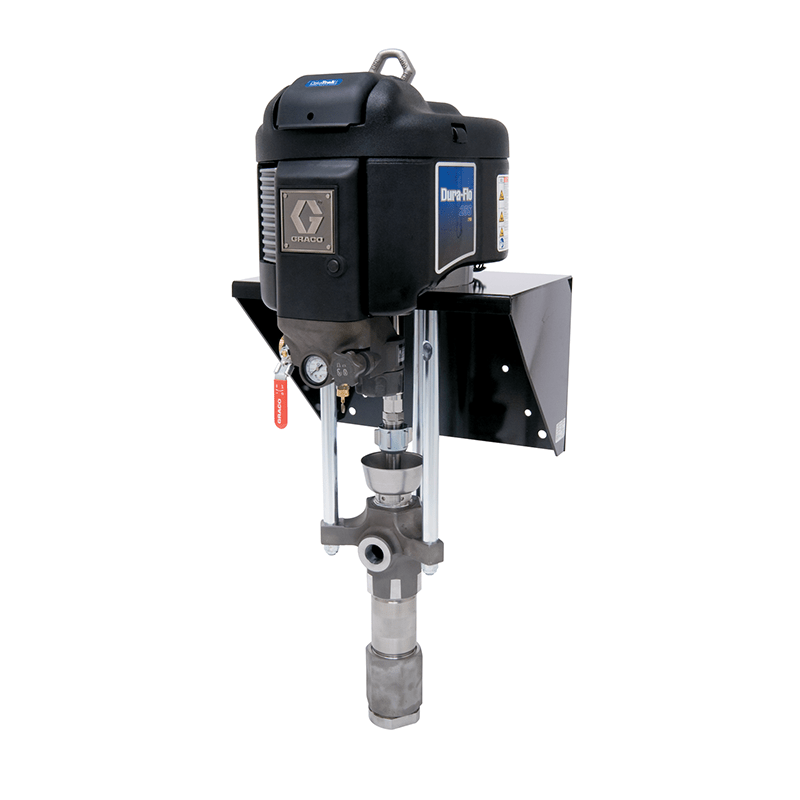

Proven Graco NXT technology delivers strong value with fewer parts, faster repairs and long-lasting durability. The NXT Dura-Flo oil pump range moves large amounts of oil fast in wall mounted pump packages. Carbon steel models are available in 6:1, 10:1, 12:1 and 23:1 ratios, with a stainless steel model in 12:1. Models are offered with intuitive DataTrak controls that provide pump diagnostics, material usage tracking and pump runaway protection.
Features
DataTrak Control: Optional DataTrak control gives pump diagnostics, material usage tracking and pump runaway protection.
NXT Air Motor: A modular design eases maintenance, with rugged body armour that will not rust or dent.
Extended Seal Life: The in-line pump design aligns the air motor piston and fluid piston rods to maximise seal life.
Integrated Air Controls: An easy-turn, lockable, front-mounted regulator is compact and modular with built-in filtration.
Floating Piston Seal: A piston valve with a floating piston seal keeps pressure balanced across a range of material viscosities.
Included accessories
Specifications
| Application | Industrial |
|---|---|
| Compatible Material | Oil |
| Fluid Inlet Size | 2" (50.8 mm) NPT female |
| Fluid Outlet Size | 1-1/2" (38.1 mm) NPT male |
| Maximum Working Pressure | 620 psi (43 bar, 4300 kPa, 4.3 MPa) |
| Motor Type | Pneumatic |
| Mount Location | Wall mount |
| Pump Ratio | 6:1 |
| Maximum Flow Rate | 17.4 GPM @ 60 CPM |
| Air Inlet Size | 0.75" NPT female |
| Maximum Air Working Pressure | 100 psi |
| Wetted Material | Carbon steel, leather |
| Type | Piston pump package |
| Model | Dura-Flo |
Manuals
- GO Manual Graco NXT Fast-Flo Oil Pump System 312862EN-G
- GO Manual Graco NXT Dura-Flo Oil Pump 6-1 Pump 311833EN-F
- GO Manual Graco NXT Dura-Flo Oil Pump 12-1 23-1 Pump 311826EN-L
- GO Manual Graco NXT Dura-Flo Oil Pump 6-1 10-1 Pump Lower 311717EN-E
- GO Manual Graco NXT Dura-Flo Oil Pump 12-1 23-1 Pump Lower 311825EN-L
- GO Manual Graco NXT Fast-Flo Oil Motor 311238EN-ZAP
