GRACO PM™ Series PM8 Electronic Preset Gear Lube Dispense Meters - GO Industrial
  • GRACO PM™ Series PM8 Electronic Preset Gear Lube Dispense Meters - GO Industrial
1 1

Compatible Material

  • Gear Lube
  • Graco PM Series Electronic Preset Dispense Meters Data Sheet - GO Industrial
  • Graco PM8 and PM20 Meters Manual - GO Industrial
Technical Specifications
CALIBRATION TYPEFactory Calibrated
COMPATIBLE MATERIALPetroleum-Based Oil, Synthetic-Based Oil, Antifreeze
DISPENSE TYPEPreset
DISPLAY TYPEElectronic
EXTENSION TYPERigid
FLUID INLET THREAD GENDERFemale
FLUID OUTLET THREAD GENDERFemale
INCLUDESNozzle, Extension
INLET SIZE (CM)1.27
INLET SIZE (IN)1/2
INLET SIZE (MM)12.7
INLET THREAD TYPENPT
IP RATING69K
MAXIMUM FLOW RATE (CC/MIN)30283
MAXIMUM FLOW RATE (GPM)8
MAXIMUM FLOW RATE (L/MIN)30.3
MAXIMUM FLOW RATE (CC/SEC)505
MAXIMUM OPERATING TEMPERATURE (°C)52
MAXIMUM OPERATING TEMPERATURE (°F)125
MAXIMUM RECORDED DISPENSE19999
MAXIMUM STORAGE TEMPERATURE (°F)185
MAXIMUM STORAGE TEMPERATURE (°C)85
MAXIMUM WORKING PRESSURE (PSI)1500
MAXIMUM WORKING PRESSURE (KPA)10340
MAXIMUM WORKING PRESSURE (BAR)102
METER ACCURACY (%)±0.5
METER PRESSURE LOSS (PSI)60 PSI at 6 GPM
METER PRESSURE LOSS (BAR)4.1 Bar at 6 GPM
OVERALL HEIGHT (CM)18.3
OVERALL HEIGHT (IN)7.2
OVERALL HEIGHT (MM)183
OVERALL LENGTH (CM)57.5
OVERALL LENGTH (IN)22.6
OVERALL LENGTH (MM)575
OVERALL WIDTH (CM)10.4
OVERALL WIDTH (IN)4.1
OVERALL WIDTH (MM)103.5
METER TECHNOLOGYOval Gear
METERING GUN WEIGHT (LB)5.2
METERING GUN WEIGHT (KG)2.4
MINIMUM FLOW RATE (GPM)0.25
WETTED MATERIALAluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast®
WARRANTY5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
UNIT OF MEASUREQuart, Pint, Liter, Gallon
TRIGGER PROTECTION TYPELock Off Button
TRIGGER LOCKLocking
SERIES8
RECOMMENDED ENVIRONMENTIndoor/Outdoor
OUTLET THREAD TYPEORB
OUTLET SIZE (CM)1.905
OUTLET SIZE (MM)19.05
OUTLET SIZE (IN)3/4
NOZZLE TYPEManual
MINIMUM OPERATING TEMPERATURE (°F)-20
MINIMUM OPERATING TEMPERATURE (°C)-29
TYPEElectronic Metered Dispense Valve
VALVE TYPEMetered
MAXIMUM WORKING PRESSURE (MPA)10
MAXIMUM TOTALIZER19999
METER ACCURACY±0.5

    • Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.

    • Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.

    • Long-Life Valve Design - Poppet design offers exceptional valve life for heavy usage applications.

    • Easy Valve Operation - Ergonomic four-finger trigger for user comfort protected by a robust full length trigger guard.

    • Durable Cast Body - Designed for heavy duty and harsh applications.

    • High-Flow Rates - Capable of up to 20 gpm (75.7 lpm).

    • Long Battery Life - Features four easily-replaceable AA batteries.

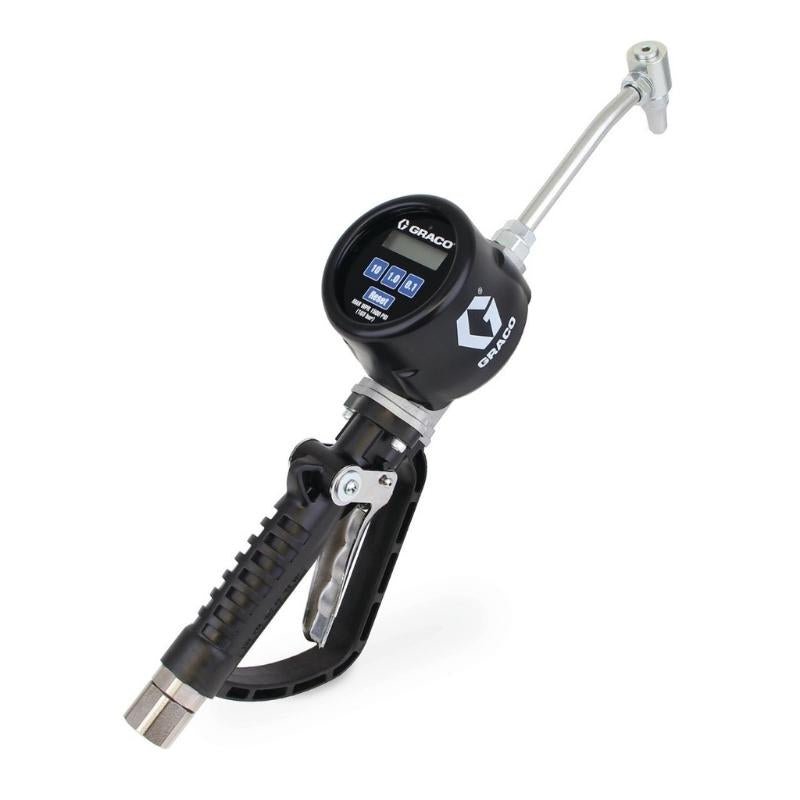

GRACO PM™ Series PM8 Electronic Preset Gear Lube Dispense Meters

SKU: 273158

GRACO PM™ Series PM8 Electronic Preset Gear Lube Dispense Meters

$1,210.00 AUD
$1,210.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.

Other payment options

At a Glance

Use Graco’s PM8 and PM20 electronic pre-set meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments.

Compatible Material

  • Gear Lube
  • Graco PM Series Electronic Preset Dispense Meters Data Sheet - GO Industrial
  • Graco PM8 and PM20 Meters Manual - GO Industrial
Technical Specifications
CALIBRATION TYPEFactory Calibrated
COMPATIBLE MATERIALPetroleum-Based Oil, Synthetic-Based Oil, Antifreeze
DISPENSE TYPEPreset
DISPLAY TYPEElectronic
EXTENSION TYPERigid
FLUID INLET THREAD GENDERFemale
FLUID OUTLET THREAD GENDERFemale
INCLUDESNozzle, Extension
INLET SIZE (CM)1.27
INLET SIZE (IN)1/2
INLET SIZE (MM)12.7
INLET THREAD TYPENPT
IP RATING69K
MAXIMUM FLOW RATE (CC/MIN)30283
MAXIMUM FLOW RATE (GPM)8
MAXIMUM FLOW RATE (L/MIN)30.3
MAXIMUM FLOW RATE (CC/SEC)505
MAXIMUM OPERATING TEMPERATURE (°C)52
MAXIMUM OPERATING TEMPERATURE (°F)125
MAXIMUM RECORDED DISPENSE19999
MAXIMUM STORAGE TEMPERATURE (°F)185
MAXIMUM STORAGE TEMPERATURE (°C)85
MAXIMUM WORKING PRESSURE (PSI)1500
MAXIMUM WORKING PRESSURE (KPA)10340
MAXIMUM WORKING PRESSURE (BAR)102
METER ACCURACY (%)±0.5
METER PRESSURE LOSS (PSI)60 PSI at 6 GPM
METER PRESSURE LOSS (BAR)4.1 Bar at 6 GPM
OVERALL HEIGHT (CM)18.3
OVERALL HEIGHT (IN)7.2
OVERALL HEIGHT (MM)183
OVERALL LENGTH (CM)57.5
OVERALL LENGTH (IN)22.6
OVERALL LENGTH (MM)575
OVERALL WIDTH (CM)10.4
OVERALL WIDTH (IN)4.1
OVERALL WIDTH (MM)103.5
METER TECHNOLOGYOval Gear
METERING GUN WEIGHT (LB)5.2
METERING GUN WEIGHT (KG)2.4
MINIMUM FLOW RATE (GPM)0.25
WETTED MATERIALAluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast®
WARRANTY5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
UNIT OF MEASUREQuart, Pint, Liter, Gallon
TRIGGER PROTECTION TYPELock Off Button
TRIGGER LOCKLocking
SERIES8
RECOMMENDED ENVIRONMENTIndoor/Outdoor
OUTLET THREAD TYPEORB
OUTLET SIZE (CM)1.905
OUTLET SIZE (MM)19.05
OUTLET SIZE (IN)3/4
NOZZLE TYPEManual
MINIMUM OPERATING TEMPERATURE (°F)-20
MINIMUM OPERATING TEMPERATURE (°C)-29
TYPEElectronic Metered Dispense Valve
VALVE TYPEMetered
MAXIMUM WORKING PRESSURE (MPA)10
MAXIMUM TOTALIZER19999
METER ACCURACY±0.5

    • Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.

    • Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.

    • Long-Life Valve Design - Poppet design offers exceptional valve life for heavy usage applications.

    • Easy Valve Operation - Ergonomic four-finger trigger for user comfort protected by a robust full length trigger guard.

    • Durable Cast Body - Designed for heavy duty and harsh applications.

    • High-Flow Rates - Capable of up to 20 gpm (75.7 lpm).

    • Long Battery Life - Features four easily-replaceable AA batteries.
