Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
Long-Life Valve Design - Poppet design offers exceptional valve life for heavy usage applications.
Easy Valve Operation - Ergonomic four-finger trigger for user comfort protected by a robust full length trigger guard.
Durable Cast Body - Designed for heavy duty and harsh applications.
High-Flow Rates - Capable of up to 20 gpm (75.7 lpm).
Long Battery Life - Features four easily-replaceable AA batteries.
| Technical Specifications | |
| CALIBRATION TYPE | Factory Calibrated |
| COMPATIBLE MATERIAL | Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze |
| DISPENSE TYPE | Preset |
| DISPLAY TYPE | Electronic |
| EXTENSION TYPE | Flexible |
| FLUID INLET THREAD GENDER | Female |
| FLUID OUTLET THREAD GENDER | Female |
| INCLUDES | Nozzle, Extension |
| INLET SIZE (CM) | 1.27 |
| INLET SIZE (IN) | 1/2 |
| INLET SIZE (MM) | 12.7 |
| INLET THREAD TYPE | NPT |
| IP RATING | 69K |
| MAXIMUM FLOW RATE (CC/MIN) | 30283 |
| MAXIMUM FLOW RATE (GPM) | 8 |
| MAXIMUM FLOW RATE (L/MIN) | 30.3 |
| MAXIMUM FLOW RATE (CC/SEC) | 505 |
| MAXIMUM OPERATING TEMPERATURE (°C) | 52 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 125 |
| MAXIMUM RECORDED DISPENSE | 19999 |
| MAXIMUM STORAGE TEMPERATURE (°F) | 185 |
| MAXIMUM STORAGE TEMPERATURE (°C) | 85 |
| MAXIMUM WORKING PRESSURE (PSI) | 1500 |
| MAXIMUM WORKING PRESSURE (KPA) | 10340 |
| MAXIMUM WORKING PRESSURE (BAR) | 102 |
| METER ACCURACY (%) | ±0.5 |
| METER PRESSURE LOSS (PSI) | 60 PSI at 6 GPM |
| METER PRESSURE LOSS (BAR) | 4.1 Bar at 6 GPM |
| OVERALL HEIGHT (CM) | 18.3 |
| OVERALL HEIGHT (IN) | 7.2 |
| OVERALL HEIGHT (MM) | 183 |
| OVERALL LENGTH (CM) | 78 |
| OVERALL LENGTH (IN) | 30.7 |
| OVERALL LENGTH (MM) | 780 |
| OVERALL WIDTH (CM) | 10.4 |
| OVERALL WIDTH (IN) | 4.1 |
| OVERALL WIDTH (MM) | 103.5 |
| METER TECHNOLOGY | Oval Gear |
| METERING GUN WEIGHT (LB) | 5.2 |
| METERING GUN WEIGHT (KG) | 2.4 |
| MINIMUM FLOW RATE (GPM) | 0.25 |
| WETTED MATERIAL | Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast® |
| WARRANTY | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| UNIT OF MEASURE | Quart, Pint, Liter, Gallon |
| TRIGGER PROTECTION TYPE | Lock Off Button |
| TRIGGER LOCK | Locking |
| SERIES | 8 |
| RECOMMENDED ENVIRONMENT | Indoor/Outdoor |
| OUTLET THREAD TYPE | ORB |
| OUTLET SIZE (CM) | 1.905 |
| OUTLET SIZE (MM) | 19.05 |
| OUTLET SIZE (IN) | 3/4 |
| NOZZLE TYPE | Manual |
| MINIMUM OPERATING TEMPERATURE (°F) | -20 |
| MINIMUM OPERATING TEMPERATURE (°C) | -29 |
| TYPE | Electronic Metered Dispense Valve |
| VALVE TYPE | Metered |
| MAXIMUM WORKING PRESSURE (MPA) | 10 |
| MAXIMUM TOTALIZER | 19999 |
| METER ACCURACY | ±0.5 |

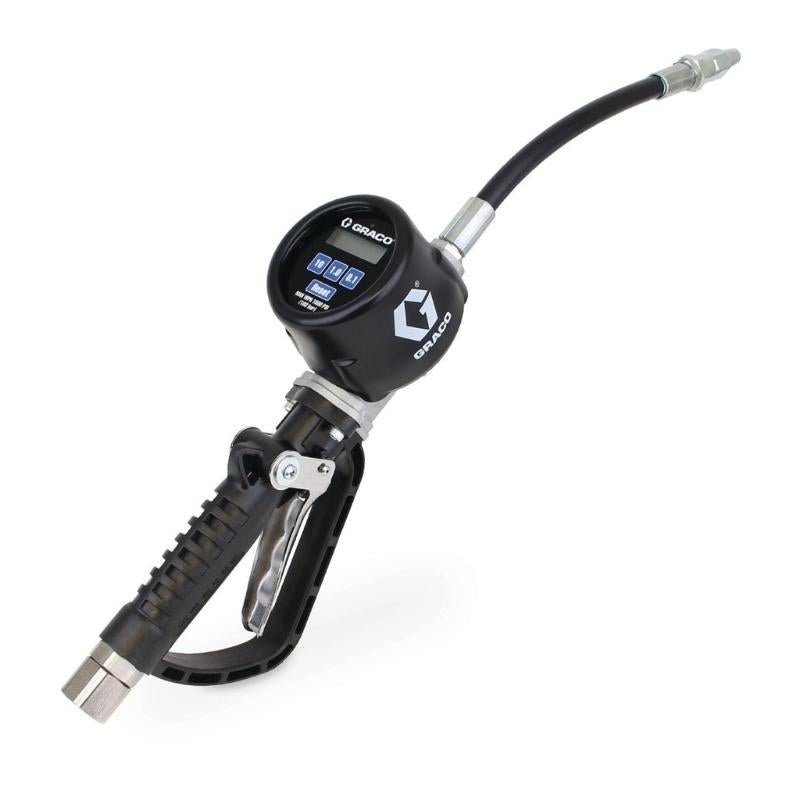

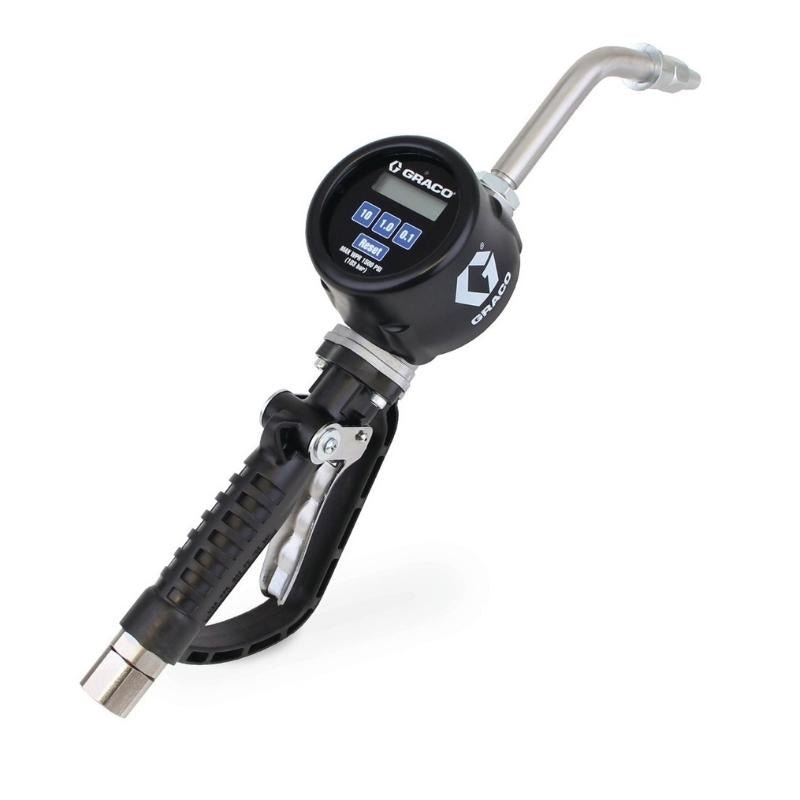

GRACO PM™ Series PM8 Electronic Preset Oil Dispense Meters Range
SKU: 273156GRACO PM™ Series PM8 Electronic Preset Oil Dispense Meters Range
Other payment options
Couldn't load pickup availability
At a Glance
Use Graco’s PM8 and PM20 electronic pre-set meters to dispense fluids quickly, reliably and accurately to vehicles, trucks, yellow iron machines and more in the most challenging, extreme environments.
Proven in Harsh Conditions - Sealed electronics (IP69K) are protected against direct pressure washing and dust.
Twist-Close Nozzle Prevents Leaking - Multiple extensions available including rigid, flexible and gear lube.
Long-Life Valve Design - Poppet design offers exceptional valve life for heavy usage applications.
Easy Valve Operation - Ergonomic four-finger trigger for user comfort protected by a robust full length trigger guard.
Durable Cast Body - Designed for heavy duty and harsh applications.
High-Flow Rates - Capable of up to 20 gpm (75.7 lpm).
Long Battery Life - Features four easily-replaceable AA batteries.
| Technical Specifications | |
| CALIBRATION TYPE | Factory Calibrated |
| COMPATIBLE MATERIAL | Petroleum-Based Oil, Synthetic-Based Oil, Antifreeze |
| DISPENSE TYPE | Preset |
| DISPLAY TYPE | Electronic |
| EXTENSION TYPE | Flexible |
| FLUID INLET THREAD GENDER | Female |
| FLUID OUTLET THREAD GENDER | Female |
| INCLUDES | Nozzle, Extension |
| INLET SIZE (CM) | 1.27 |
| INLET SIZE (IN) | 1/2 |
| INLET SIZE (MM) | 12.7 |
| INLET THREAD TYPE | NPT |
| IP RATING | 69K |
| MAXIMUM FLOW RATE (CC/MIN) | 30283 |
| MAXIMUM FLOW RATE (GPM) | 8 |
| MAXIMUM FLOW RATE (L/MIN) | 30.3 |
| MAXIMUM FLOW RATE (CC/SEC) | 505 |
| MAXIMUM OPERATING TEMPERATURE (°C) | 52 |
| MAXIMUM OPERATING TEMPERATURE (°F) | 125 |
| MAXIMUM RECORDED DISPENSE | 19999 |
| MAXIMUM STORAGE TEMPERATURE (°F) | 185 |
| MAXIMUM STORAGE TEMPERATURE (°C) | 85 |
| MAXIMUM WORKING PRESSURE (PSI) | 1500 |
| MAXIMUM WORKING PRESSURE (KPA) | 10340 |
| MAXIMUM WORKING PRESSURE (BAR) | 102 |
| METER ACCURACY (%) | ±0.5 |
| METER PRESSURE LOSS (PSI) | 60 PSI at 6 GPM |
| METER PRESSURE LOSS (BAR) | 4.1 Bar at 6 GPM |
| OVERALL HEIGHT (CM) | 18.3 |
| OVERALL HEIGHT (IN) | 7.2 |
| OVERALL HEIGHT (MM) | 183 |
| OVERALL LENGTH (CM) | 78 |
| OVERALL LENGTH (IN) | 30.7 |
| OVERALL LENGTH (MM) | 780 |
| OVERALL WIDTH (CM) | 10.4 |
| OVERALL WIDTH (IN) | 4.1 |
| OVERALL WIDTH (MM) | 103.5 |
| METER TECHNOLOGY | Oval Gear |
| METERING GUN WEIGHT (LB) | 5.2 |
| METERING GUN WEIGHT (KG) | 2.4 |
| MINIMUM FLOW RATE (GPM) | 0.25 |
| WETTED MATERIAL | Aluminum, Stainless Steel, Carbon Steel, Acetal, Nitrile Rubber, Geolast® |
| WARRANTY | 5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts |
| UNIT OF MEASURE | Quart, Pint, Liter, Gallon |
| TRIGGER PROTECTION TYPE | Lock Off Button |
| TRIGGER LOCK | Locking |
| SERIES | 8 |
| RECOMMENDED ENVIRONMENT | Indoor/Outdoor |
| OUTLET THREAD TYPE | ORB |
| OUTLET SIZE (CM) | 1.905 |
| OUTLET SIZE (MM) | 19.05 |
| OUTLET SIZE (IN) | 3/4 |
| NOZZLE TYPE | Manual |
| MINIMUM OPERATING TEMPERATURE (°F) | -20 |
| MINIMUM OPERATING TEMPERATURE (°C) | -29 |
| TYPE | Electronic Metered Dispense Valve |
| VALVE TYPE | Metered |
| MAXIMUM WORKING PRESSURE (MPA) | 10 |
| MAXIMUM TOTALIZER | 19999 |
| METER ACCURACY | ±0.5 |
