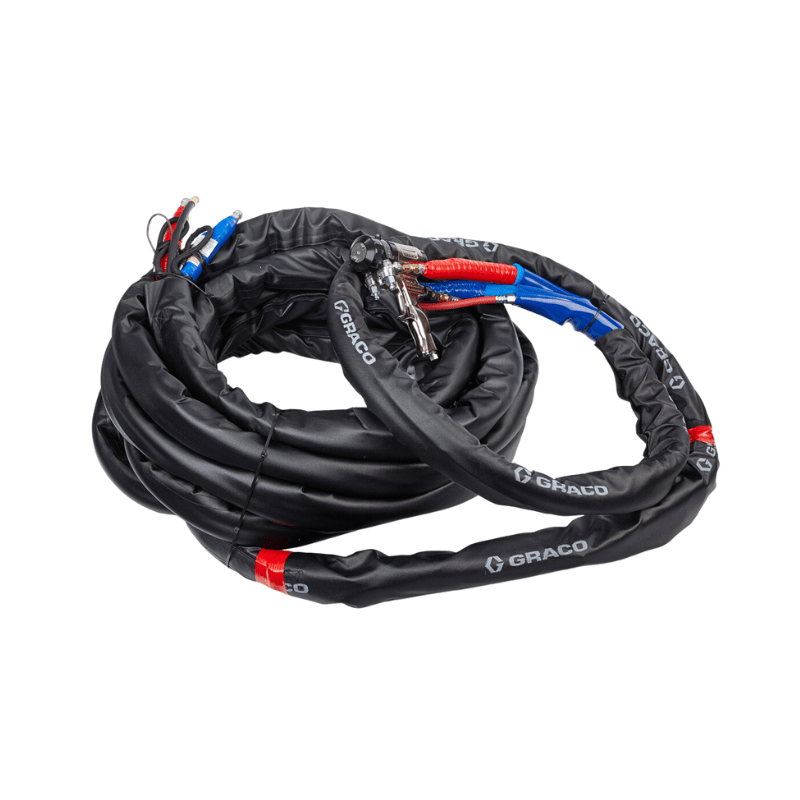

GRACO Power-Lock Heated Hose Range

SKU: 15E750

$2,048.80

GRACO Power-Lock Heated Hose Range

  • Low and High-Pressure Heated Hose
  • for use with Graco XTreme range of Airless Sprayers
  • Graco’s heated hoses are designed for use with Graco XTreme Airless Sprayers and Graco Reactor Equipment.
  • Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.

New multi-strand copper heating element has greatly increased hose quality:

  • Provides 10-times* the flex life compared to previous flat copper heating element
  • Long-term, even heating without hot spots
  • Backwards compatible with existing Reactor heated hoses

Features

New Xtreme-Wrap Scuff Guard

  • Xtreme-Wrap Scuff Guard is now the standard scuff guard for Graco's whip hoses models 246050 and 246055.
  • It may be ordered with other selected hoses or as a kit to replace the standard scuff guard on any existing Graco hose.
  • Form fitting to the hose, no more baggy excess material
  • Made from urethane coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance
  • Sheds surface moisture and won't absorb water to weigh down the hose bundle; will not freeze solid in cold temperatures
  • Hook and Loop enclosure used on the entire length of the hose for easy access to the hoses, fittings, and fluid temperature sensors

Joint Protectors

  • Joint Protectors provide additional protection at the most vulnerable section of the hose: the electrical connections, hose fittings, and fluid temperature sensors.
  • All 50 ft hoses with the new Xtreme-Wrap will come with one Joint Protector.

General

  • Copper-heated hoses are designed specifically for use with Graco proportioners
  • Covered with proprietary butyl cover for protection against moisture sensitive isocyanate
  • Hoses are covered with foam insulation for heat retention
  • Different fitting sizes on the isocyanate and resin hoses prevent accidentally connecting the wrong hoses together
  • Hoses use custom designed splice kit to electrically connect hoses without having to run copper under the fittings
  • Helix-design whip hose uses braided copper wires for added flexibility and longer life
  • Whip hoses 246050 and 246055 come standard with the new Xtreme-Wrap Scuff Guard
  • Other selected hoses may be ordered with the Xtreme-Wrap Scuff Guard for added protection and prolonged life

Downloads

 DATA SHEET
 MANUAL
 MANUAL - CONTROL KIT

Specifications

Graco Power-Lock Heated Hose

Metric
Maximum Air Working Pressure
0.9 MPa, 9 bar
Maximum Fluid Operating Temperature
82°C
Wetted Parts
Nylon, Zinc-Plated Carbon Steel, 303 Stainless Steel
Total Heating Load (2 Hoses)
1/4 in diameter:
36 watts/meter
3/8 in diameter:
43 watts/meter
1/2 in diameter:
49 watts/meter
