GRACO Power-Star Series 1:1 Universal Size Hydraulic-Powered Oil Pump
Features

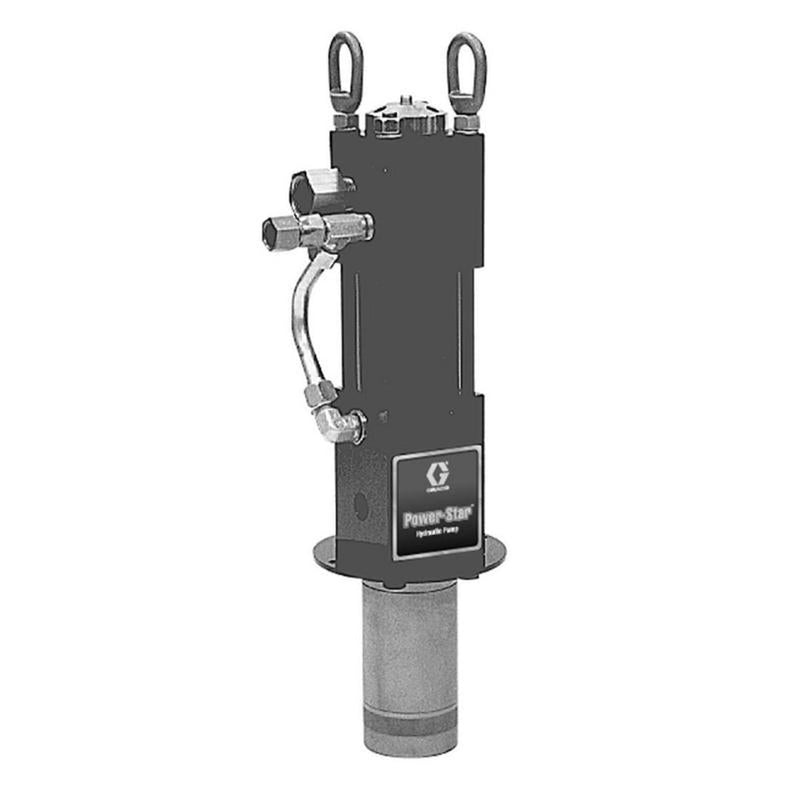

Graco Power-Star Series 1:1 Universal Size Hydraulic-Powered Oil Pump
Overview
Hydraulic Power-Star pumps provide reliable, quiet, ice-free performance at maximum pressure and low flow rates and are up to three times more energy efficient than comparable compressed-air systems.
- Fluid Pressure Ratio: 1:1
- Maximum Input Pressure: 1,500 psi (102 bar)
- Maximum Fluid Input Volume: 12 gpm (45.4 lpm)
- Maximum Output Flow Rate: 12 gpm (45.4 lpm)
- Maximum Recommended CPM: 60
- Maximum Fluid Output Pressure: 1,500 psi (102 bar)
- Built-In Reliability - Self-lubricating vertical design for long life and reliable operation in high-vibration environments.
- Quiet Hydraulic Motor - No need for add-on mufflers.
- High-Efficiency Motor - Uses less hydraulic oil.
Specifications
| TYPE | Hydraulic Piston Pump |
| APPLICATION | Industrial |
| COMPATIBLE MATERIAL | Oil |
| FLUID INLET SIZE (CM) | 3.81 |
| FLUID INLET SIZE (IN) | 1-1/2 |
| FLUID INLET SIZE (MM) | 38.1 |
| FLUID INLET THREAD GENDER | Female |
| FLUID INLET THREAD TYPE | NPT |
| FLUID OUTLET SIZE (CM) | 1.27 |
| FLUID OUTLET SIZE (IN) | 1/2 |
| FLUID OUTLET SIZE (MM) | 12.7 |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | NPT |
| FOR USE WITH | Petroleum- and synthetic-based oils (motor, gear and ATF) |
| MAXIMUM CONTINUOUS CYCLE RATE (CPM) | 60 |
| MAXIMUM FLOW RATE (GPM) | 12 |
| MAXIMUM FLOW RATE (L/MIN) | 45.42 |
| MAXIMUM FLUID OUTPUT PRESSURE (PSI) | 1500 |
| MAXIMUM HYDRAULIC FLUID INLET PRESSURE (BAR) | 103 |
| MAXIMUM HYDRAULIC FLUID INLET PRESSURE (KPA) | 10300 |
| MAXIMUM HYDRAULIC FLUID INLET PRESSURE (PSI) | 1500 |
| MAXIMUM INTERMITTENT CYCLE RATE (CPM) | 60 |
| MODEL | Power-Star |
| PUMP RATIO | 1:1 |
| WETTED MATERIAL | Iron, Steel, Stainless Steel, Nitrile, Polyurethane |
| MAXIMUM_FLUID_OUTPUT_PRESSURE_BAR | 103 |
