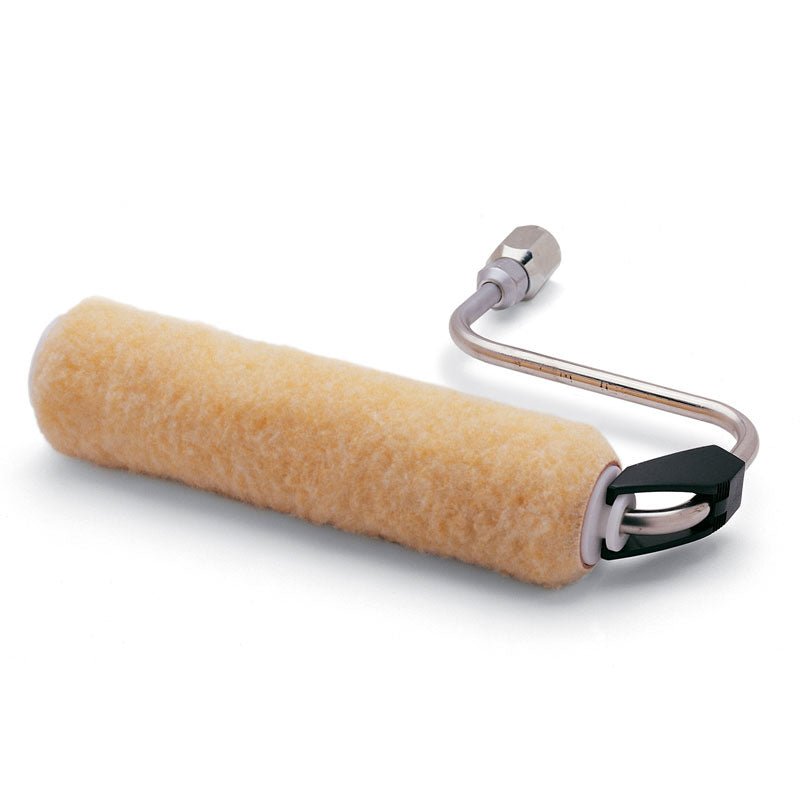

GRACO EvenFlow Pressure Roller Frames
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Transforms the paint sprayer into a rolling system for increased versatility. Using the roller kit is four times faster than a traditional roller while eliminating the mess of a roller tray. Attaches directly to the spray gun. Simply trigger the gun for more paint and keep rolling.
Range
- 244271 EvenFlow Pressure Roller Frame, 9 in (230 mm) with 7/8 in (22 mm) thread
- 244623 EvenFlow Roller Frame, 9 in (230 mm) with 1/8 npt thread
- 240055 Geosperse Roller Frame, 12 in (305 mm) with 7/8 in (22 mm) thread
- 224398 Adapter For 244623 Roller Frame to Heavy-Duty Extension
- 224399 45 Degree Adapter
Features
Features
Pole Guns
- are available in 3’ and 6’ configurations
- provide better spray control and less fatigue.
- Balanced design; no excessive weight at the end of pole
Heavy-duty extensions
- ideal for high-pressure spraying or pressure roller applications.
- Use with Contractor In-Line Valve and the CleanShot Shut-Off Valve to create different
- length pole guns
- Smaller diameter tube is lightweight and can be used for interior pressure rolling
- Ability to attach directly to an airless spray gun – order 45? adapter 224399 for increased comfort while rolling
Airless Tip Extensions
- can be attached directly to an airless gun making them ideal for spraying ceilings, overhangs and decks.
CleanShot Shut-Off Valve
- Unique needle valve shuts fluid off at the tip for a clean pattern
- no spitting 180? tip swivel provides versatility when spraying walls and ceilings
- Pressure-actuated – operates at a minimum of 700 psi (4.8 MPa, 48 bar)
- can be attached directly to any extension and provides a clean fluid shutoff at the tip – no spitting.
Contractor In-Line Valve
- Can be used with other extended reach tools such as Heavy-Duty Extensions and Telescoping Extensions for Pressure Rolling
- Provides a straight connection to extensions for the most optimal rolling position
- In-handle paint filter and built-in swivel connection for top spraying performance
- Ability to rotate 180? allows spraying in any position
Specifications
Part Number 244271
| FOR USE WITH | 重型延长杆, ヘビーデューティーカート, Heavy Duty Extension, Extensión para uso intensivo, Heavy-Duty 익스텐션 |
|---|---|
| MAXIMUM POLE LENGTH (IN) | 9 |
| MAXIMUM WORKING PRESSURE (BAR) | 248 |
| MAXIMUM WORKING PRESSURE (KPA) | 24800 |
| MAXIMUM WORKING PRESSURE (PSI) | 3600 |
| TYPE | Pressure Roller Frames |
| MAXIMUM WORKING PRESSURE (MPA) | 24.8 |
| MODEL | Graco |
| SERIES | Roller Cover |
Data Sheet
