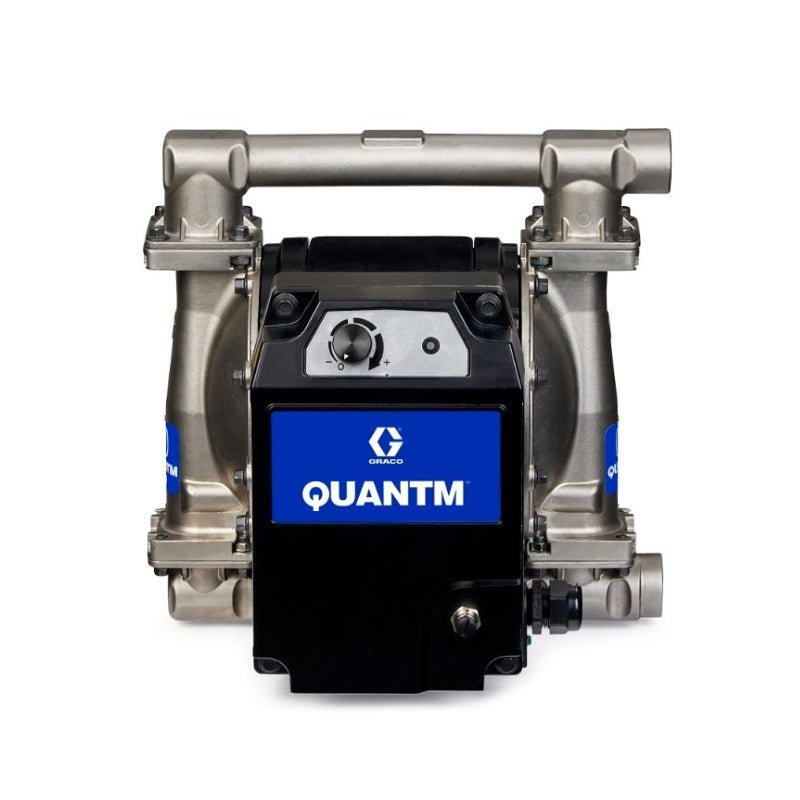

GRACO QUANTM i30 1" BSPT Stainless Steel Electric Diaphragm Pump
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
QUANTM isn’t just another electric pump: it’s a game-changer.
The QUANTM i30 with 1" (25.4 mm) port is Graco’s revolutionary new electric operated double diaphragm (EODD) pump that provides the ideal solution for factories or manufacturing plants focused on meeting sustainability goals by reducing their largest variable cost: energy. An i30 pump could pay for itself in 12 months or less while helping achieve compliance with increasingly tight regulations and earning significant rebates along the way.
Features
Features
- Revolutionary Design
- Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
- Patented FluxCore drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
- Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
- Quiet operation reduces plant noise and improves employee safety and health
- Smart pump control provides more accurate flow set points and built-in I/O
- FluxCore Motor
- Powder-coated aluminum FluxCore drive
- 240 VAC 1? motor with 15 ft cord and IEC 60320-C20 plug
- Non-hazardous
Specifications
| TYPE | Electric Diaphragm Pump |
| APPLICATION | Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer |
| BALL MATERIAL | PTFE |
| CENTER SECTION MATERIAL | Aluminum |
| DIAPHRAGM MATERIAL | PTFE/Santoprene 2-Piece |
| FLUID INLET SIZE (IN) | 1 |
| FLUID INLET SIZE (MM) | 25.4 |
| FLUID INLET THREAD GENDER | Female |
| FLUID INLET THREAD TYPE | BSPT |
| FLUID OUTLET SIZE (IN) | 1 |
| FLUID OUTLET SIZE (MM) | 25.4 |
| FLUID OUTLET THREAD GENDER | Female |
| FLUID OUTLET THREAD TYPE | BSPT |
| FLUID SECTION MATERIAL | Stainless Steel |
| MANIFOLD CONFIGURATION | End Port |
| MANIFOLD O-RING MATERIAL | PTFE |
| MAXIMUM AMPERAGE (A) | 10 |
| MAXIMUM FLOW RATE (GPM) | 30 |
| MAXIMUM FLOW RATE (L/MIN) | 114 |
| MAXIMUM FLUID PRESSURE (BAR) | 6.9 |
| MAXIMUM FLUID PRESSURE (KPA) | 690 |
| MAXIMUM FLUID PRESSURE (PSI) | 100 |
| MAXIMUM SOLID SIZE (IN) | 0.125 |
| MAXIMUM SOLID SIZE (MM) | 3.2 |
| MODEL | QUANTM |
| MOTOR TYPE | FluxCore Drive |
| OVERALL HEIGHT (IN) | 13.7 |
| SEAT MATERIAL | 316 Stainless Steel |
| SERIES | i30 |
| VOLTAGE (V AC) | 240 VAC 1 |
| WEIGHT (LB) | 79 |
| WETTED MATERIAL | 316 Stainless Steel, PTFE, PTFE/Santoprene 2-Piece |
| CONNECTION TYPE | BSPT |
| MAXIMUM AMBIENT TEMPERATURE (°F) | 104 |
| MAXIMUM FLUID OPERATING TEMPERATURE (°C) | 82 |
| MINIMUM FLUID OPERATING TEMPERATURE (°C) | -40 |
| MAXIMUM FLUID OPERATING TEMPERATURE (°F) | 180 |
| MINIMUM FLUID OPERATING TEMPERATURE (°F) | -40 |
| FLUID SECTION | Stainless Steel, End Port, BSPT |
| MAXIMUM AMBIENT TEMPERATURE (°C) | 40 |
| CORD LENGTH (M) | 4.57 |
| HAZARDOUS_LOCATION_APPROVAL | ATEX [TE30-0420] |
| CORD LENGTH (FT) | 15 |
