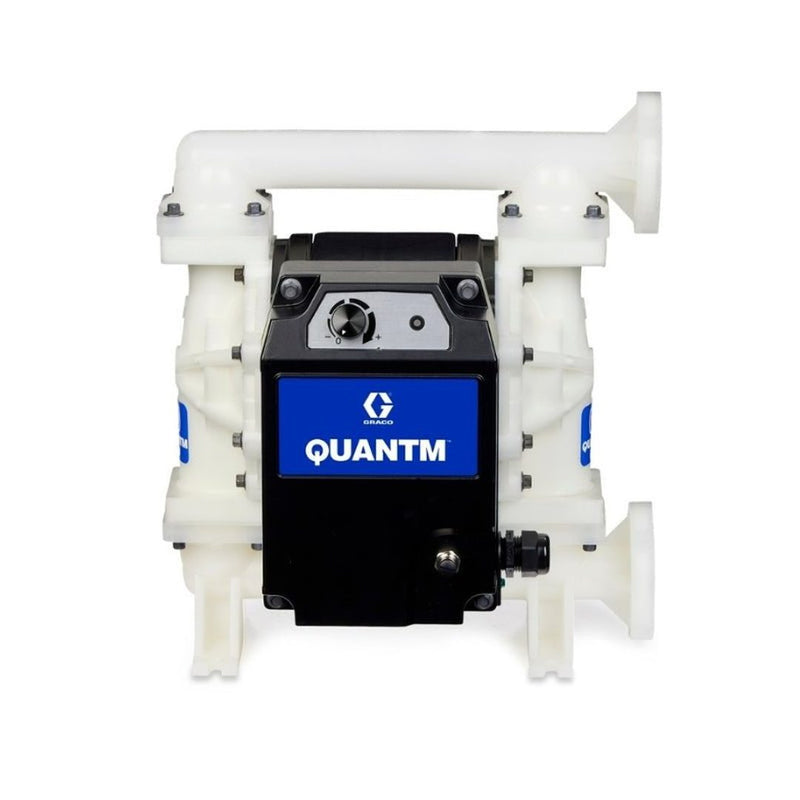

GRACO QUANTM i30 1" Center Flange Polypropylene Electric Diaphragm Pump

SKU: TE30-0268

GRACO QUANTM i30 1" Center Flange Polypropylene Electric Diaphragm Pump

$8,129.00 AUD
$8,129.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Material

Other payment options

View full details
GRACO QUANTM i30 1

GRACO QUANTM i30 1" Center Flange Polypropylene Electric Diaphragm Pump

From $8,129.00 AUD
$8,129.00
Sold out

Details

Upgrade your existing air-operated pumps with a reliable new QUANTM i30 electric pump or spec it as part of a greenfield facility initiative. With a 1" (25.4 mm) port and maximum flow rate of 30 gallons per minute, and a powerful new FluxCore motor and drive that provides up to 8x more continuous torque at low speeds than conventional motors, the i30 is capable of handling most fluid transfer jobs to be the efficient workhorse you need on your production lines. Plus, the fast and easy plug-and-play installation — you simply plug it into any 240V outlet — allows you to easily replace existing pumps without additional investment or infrastructure rework.

  • Wide operating range and materials compatibility—it handles abrasives, solids, aggressive chemicals, and shear-sensitive materials
  • Up to 80% more efficient than AODD, 50% more efficient compared to competitive electric technologies—displacing fossil fuel, hydraulics and air power
  • FluxCore Drive Module Control includes a simple knob that adjusts pump speed, LED indicating status and trouble codes, and software required for pump operation
  • Similar size to existing AODD, the removal of the gearbox reduces footprint compared to other electric options
  • Self-priming and seal-less design that minimizes maintenance and spare parts costs
  • The only electric diaphragm pump on the market that stalls under pressure, eliminating the need for pressure sensors and additional controllers and reducing downtime by preventing pump failures caused by clogged lines or closed valves

Applicable for:

  • Chemical Processing
  • Paints and Coatings
  • Waste Water
  • General Fluid Transfer

Features

  • Revolutionary Design
    • Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
    • Patented FluxCore drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
    • Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
    • Quiet operation reduces plant noise and improves employee safety and health
    • Smart pump control provides more accurate flow set points and built-in I/O
  • FluxCore Motor
    • Powder-coated aluminum FluxCore drive
    • 240 VAC 1? motor with 15 ft cord and IEC 60320-C20 plug
    • Non-hazardous

Graco Quantm i30 1" Center Flange Polypropylene Electric Diaphragm Pump

Overview

QUANTM isn’t just another electric pump: it’s a game-changer.

The QUANTM i30 with 1" (25.4 mm) port is Graco’s revolutionary new electric operated double diaphragm (EODD) pump that provides the ideal solution for factories or manufacturing plants focused on meeting sustainability goals by reducing their largest variable cost: energy. An i30 pump could pay for itself in 12 months or less while helping achieve compliance with increasingly tight regulations and earning significant rebates along the way.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • GO Data Sheet Graco QUANTM Industrial
      • QUANTM Pumps Industrial Models Manual 3A8572EN-B
      • QUANTM Input-Output Manual 3A8982EN-B
      • QUANTM Leak Sensors Manual 3A8861EN-D
      • QUANTM Pumps Industrial Models Parts 3A8946EN-B
      • QUANTM Electric Motor Repair Parts 3A7637EN-B

      Specifications

      TYPE Electric Diaphragm Pump
      APPLICATION Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer
      BALL MATERIAL Santoprene [TE30-0268]
      PTFE [TE30-0258]
      CENTER SECTION MATERIAL Aluminum
      DIAPHRAGM MATERIAL Santoprene [TE30-0268]
      PTFE/Santoprene 2-Piece [TE30-0258]
      FLUID INLET SIZE (IN) 1
      FLUID INLET SIZE (MM) 25.4
      FLUID INLET THREAD GENDER Flange
      FLUID INLET THREAD TYPE Flange
      FLUID OUTLET SIZE (IN) 1
      FLUID OUTLET SIZE (MM) 25.4
      FLUID OUTLET THREAD GENDER Flange
      FLUID OUTLET THREAD TYPE Flange
      FLUID SECTION MATERIAL Polypropylene
      MANIFOLD CONFIGURATION Center Flange
      MANIFOLD O-RING MATERIAL PTFE
      MAXIMUM AMPERAGE (A) 10
      MAXIMUM FLOW RATE (GPM) 30
      MAXIMUM FLOW RATE (L/MIN) 114
      MAXIMUM FLUID PRESSURE (BAR) 6.9
      MAXIMUM FLUID PRESSURE (KPA) 690
      MAXIMUM FLUID PRESSURE (PSI) 100
      MAXIMUM SOLID SIZE (IN) 0.125
      MAXIMUM SOLID SIZE (MM) 3.2
      MODEL QUANTM
      MOTOR TYPE FluxCore Drive
      OVERALL HEIGHT (IN) 17.8
      SEAT MATERIAL Polypropylene
      SERIES i30
      VOLTAGE (V AC) 240 VAC 1
      WEIGHT (LB) 61
      WETTED MATERIAL Polypropylene, Santoprene, PTFE [TE30-0268]
      Polypropylene, PTFE, PTFE/Santoprene 2-Piece [TE30-0258]
      CONNECTION TYPE Flange
      MAXIMUM AMBIENT TEMPERATURE (°F) 104
      MAXIMUM FLUID OPERATING TEMPERATURE (°C) 66
      MINIMUM FLUID OPERATING TEMPERATURE (°C) 0
      MAXIMUM FLUID OPERATING TEMPERATURE (°F) 150
      MINIMUM FLUID OPERATING TEMPERATURE (°F) 32
      FLUID SECTION Polypropylene, Center Flange
      MAXIMUM AMBIENT TEMPERATURE (°C) 40
      CORD LENGTH (M) 4.57
      HAZARDOUS_LOCATION_APPROVAL None
      CORD LENGTH (FT) 15

        Features

        • Revolutionary Design
          • Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
          • Patented FluxCore drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
          • Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
          • Quiet operation reduces plant noise and improves employee safety and health
          • Smart pump control provides more accurate flow set points and built-in I/O
        • FluxCore Motor
          • Powder-coated aluminum FluxCore drive
          • 240 VAC 1? motor with 15 ft cord and IEC 60320-C20 plug
          • Non-hazardous
