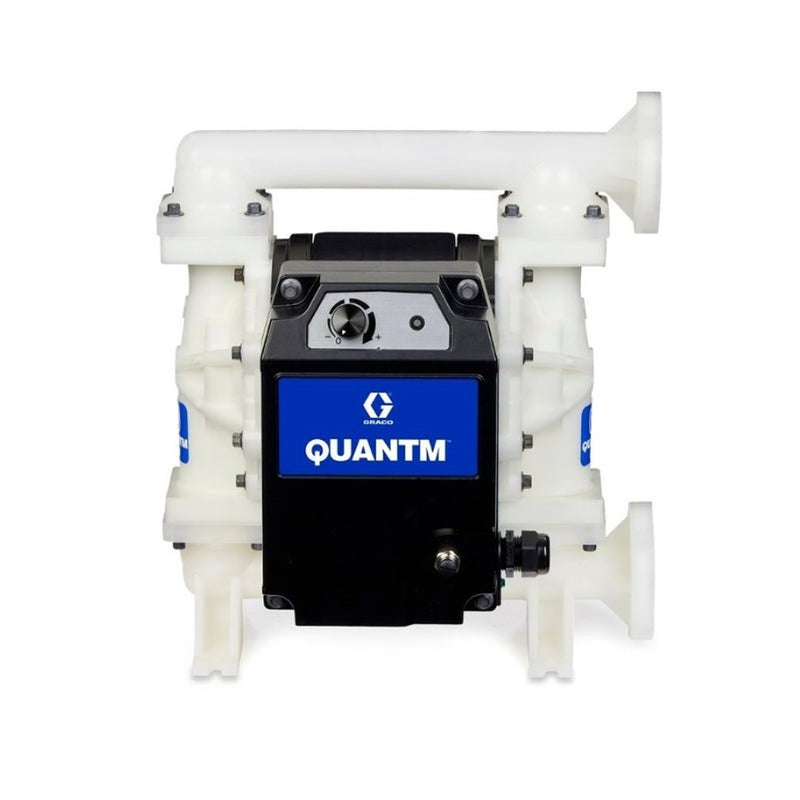

GRACO QUANTM i30 1" Centre Flange Polypropylene Electric Diaphragm Pump 380-480V 3 Phase
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
QUANTM isn’t just another electric pump: it’s a game-changer.
The QUANTM i30 with 1" (25.4 mm) port is Graco’s revolutionary new electric operated double diaphragm (EODD) pump that provides the ideal solution for factories or manufacturing plants focused on meeting sustainability goals by reducing their largest variable cost: energy. An i30 pump could pay for itself in 12 months or less while helping achieve compliance with increasingly tight regulations and earning significant rebates along the way.
Features
Features
- Revolutionary Design
- Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
- Patented FluxCore drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
- Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
- Quiet operation reduces plant noise and improves employee safety and health
- Smart pump control provides more accurate flow set points and built-in I/O
- FluxCore Motor
- Powder-coated aluminum FluxCore drive
- 380 to 480 VAC three phase motor with 4.57 m (15 ft) cord
- Non-hazardous
Specifications
| TYPE | Electric Diaphragm Pump |
| APPLICATION | Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer |
| MODEL | QUANTM |
| POWER SOURCE | Electric |
| RATED VOLTAGE | 380 to 480 VAC |
| PHASE | 3 |
| FREQUENCY | 50/60 Hz |
| MAXIMUM AMPERAGE (A) | 5.3 |
| CORD LENGTH (M) | 4.57 |
| FLUID SECTION MATERIAL | Polypropylene |
| CENTER SECTION MATERIAL | Aluminium |
| SEAT MATERIAL | Polypropylene |
| BALL MATERIAL | Santoprene |
| DIAPHRAGM MATERIAL | Santoprene |
| MANIFOLD O-RING MATERIAL | PTFE |
| MANIFOLD CONFIGURATION | Centre Flange |
| FLUID INLET SIZE (IN) | 1 |
| FLUID INLET SIZE (MM) | 25.4 |
| FLUID OUTLET SIZE (MM) | 25.4 |
| MAXIMUM FLOW RATE (L/MIN) | 114 |
| MAXIMUM FLUID PRESSURE (PSI) | 100 |
| MAXIMUM FLUID PRESSURE (BAR) | 6.9 |
| MAXIMUM SOLID SIZE (MM) | 3.2 |
| MAXIMUM FLUID TEMPERATURE (°C) | 66 |
| MINIMUM FLUID TEMPERATURE (°C) | 0 |
| SHIPPING WEIGHT (KG) | 32.66 |
| CONFIGURATION CODE | QTC-PPFE8PPSPSPPTP100 |
Data Sheet
Manuals
Parts Manual
